Troubleshooting

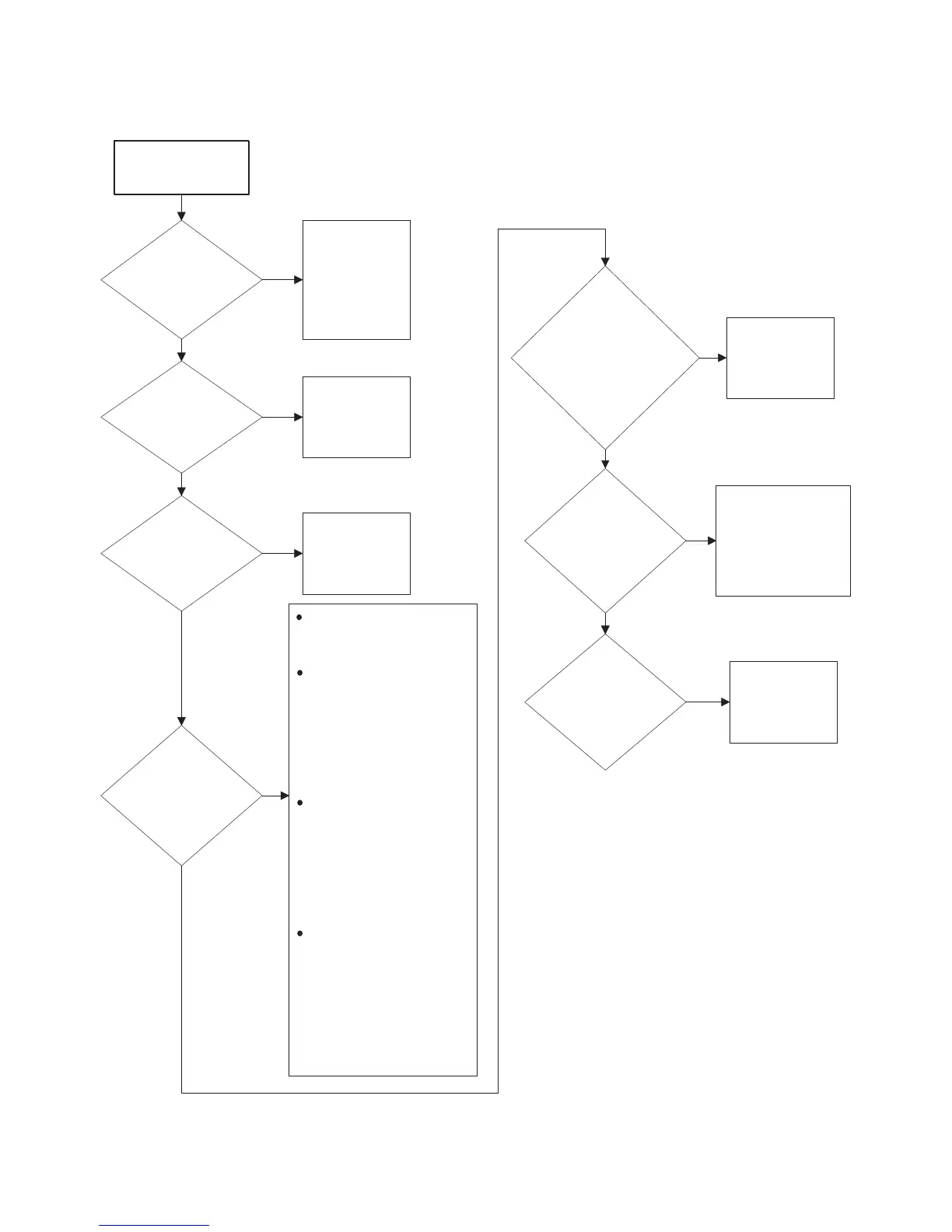

5. Heating Element Does Not Heat or Burner Does Not Ignite (continued)
Clean lint
compartment after
every eight hour shift.
Continued from
previous page
Gas Models:
Are gas valve coils
inoperative?
Test coils and
replace if
available as a
service part,
otherwise
replace valve.
Gas Models:
Is igniter
inoperative?
Gas Models:
Is igniter control
inoperative?
Test igniter and
replace if
inoperative.
Test igniter
control and
replace if
inoperative.
Is
airflow switch
inoperative?
Check back draft
damper for foreign
objects, lint
accumulation or other
causes that may
prevent damper from
opening.
Check ductwork for lint
build-up. Refer to
Installation Manual to
ensure that ductwork
and make-up air
openings are sized
properly.
Check exhaust outlet. If
a screen has been
installed on the outlet, it
may be clogged with
lint or frozen over in
winter. NEVER install a
screen over the
exhaust outlet.
Is lint door
panel not
closed
properly?
Open lint door
panel. Place lint
door panel back on
tumbler ensuring a
tight fit.
Is there
broken, loose
or incorrect
wiring?
Refer to wiring
diagram
located inside
contactor box.
Ye s
No
Ye s
No
Ye s
No
Gas and Electric
Models: Is high
limit thermostat
inoperative?
Test thermostat
and replace if
inoperative.
Ye s
No
Yes
No
Ye s
No
Ye s
