Troubleshooting

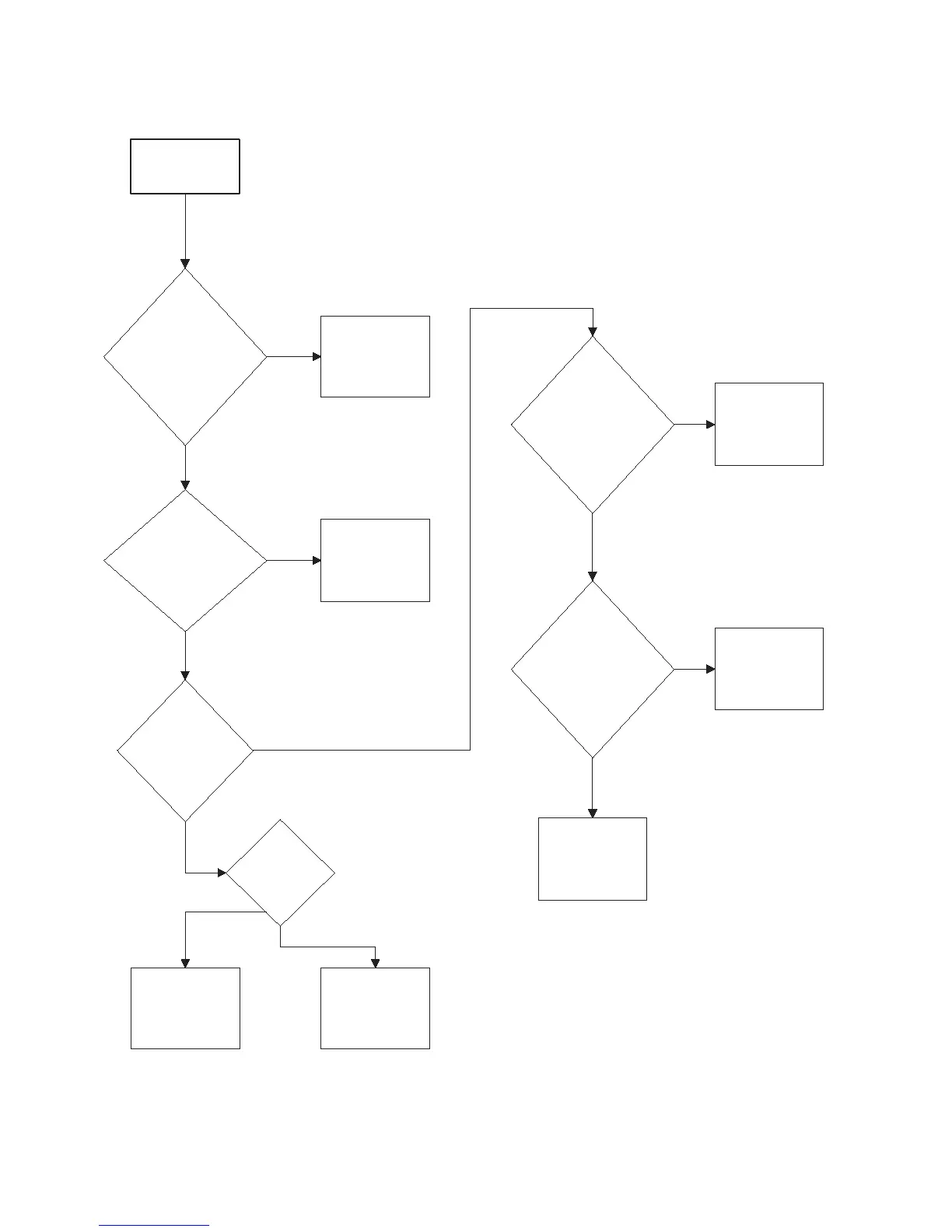

19.Motor Runs, Time on Drying Timer But No Heat (continued)
Continued from
previous page.
TMB2268S-b
Is there
power out of
burner high
limit
thermostat?
Replace burner
high limit
thermostat.
Is there
power into
airflow switch?
Check for loose
or broken wire
from cabinet
limit.
Is there
power out
of airflow
switch?
Is airflow
switch
closed?
Adjust airflow
switch.
Replace airflow
switch.
Is there
power into
cabinet high
limit
thermostat?
Check for
broken wire
from motor
switch.
Is there
power out of
cabinet high
limit
thermostat?
Replace
thermostat.
Check for loose
or burned
connection at
harness plugs.
No
No
Yes
Yes
Yes
No
No
Yes
No
Yes
No
Yes
