Alliance Laundry Systems CA170L - 120 Series Tumble Dryer Dimensions and Exhaust Outlet Locations

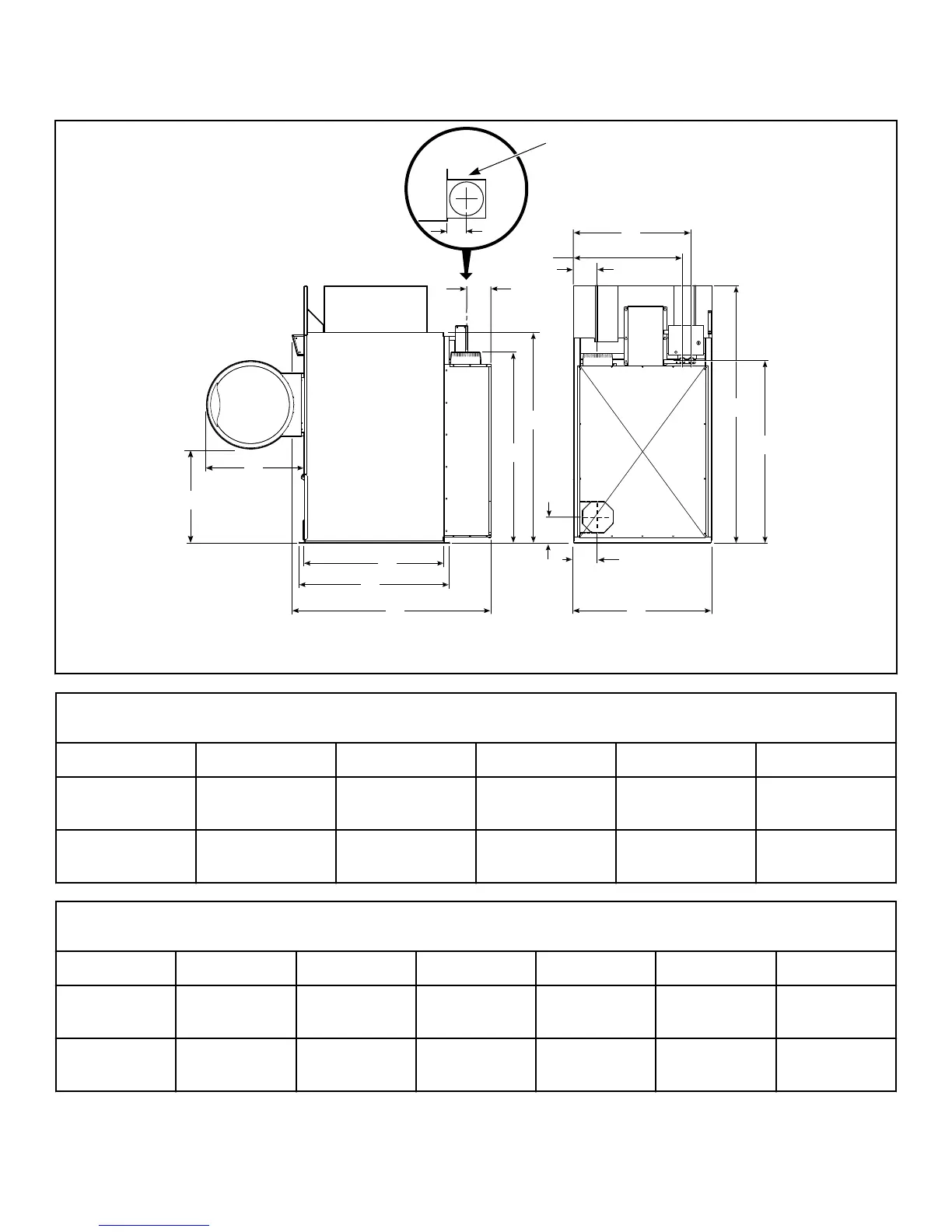

120 Series Tumble Dryer Dimensions and Exhaust Outlet Locations
TMB2423N_SVG
H
U
C
D
E
Y
Z
F
K
G
J
X
I
V
W
B
A
1
1. Top View of Exhaust Duct
Cabinet Dimensions
Models A B C D E
120L/N/E 31.38 in. [797
mm]
32.5 in. [826 mm] 46.5 in. [1,181
mm]
49.91 in. [1,268
mm]
67.92 in. [1,725
mm]
120S 31.38 in. [797
mm]
32.5 in. [826 mm] 46.5 in. [1,181
mm]
49.91 in. [1,268
mm]
67.92 in. [1,725
mm]
Cabinet Dimensions
Models F G H I* J* K*
120L/N/E 46.38 in. [1,178
mm]
85.7 in. [2,177
mm]
70 in. [1,778
mm]
41.6 in. [1,057
mm]
43.2 in. [1,097
mm]
61.5 in. [1,562
mm]
120S 46.38 in. [1,178
mm]
85.58 in. [2,174
mm]
70 in. [1,778
mm]
41.6 in. [1,057
mm]
43.2 in. [1,097
mm]
61.5 in. [1,562
mm]
* Fire suppression system optional - may not be on machine. Refer to Position and Level the Tumble Dryer to temporarily re-
duce the heights of these models.
Specifications and Dimensions
©
Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
16 Part No. 70458101ENR10
