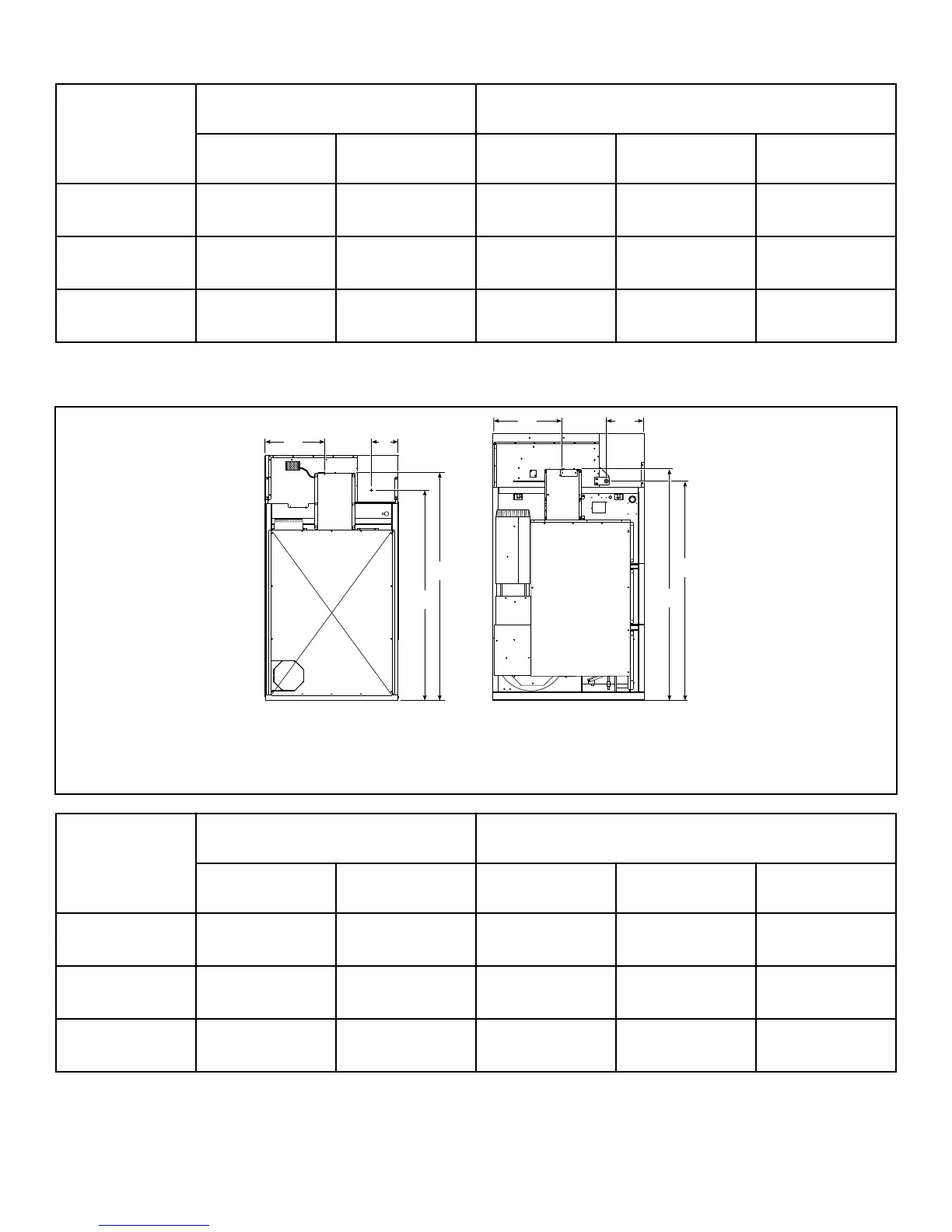

Alliance Laundry Systems CA170L - Electric and Gas Connection Locations for Gas Models Starting 3;11;13

Models
Electrical Connection Gas Connection
A B C D Diameter
120L/N 18.34 in. [466
mm]
77.84 in. [1,977
mm]
12.5 in. [318 mm] 70.5 in. [1,791
mm]
3/4 in. NPT
170L/N 21 in. [533 mm] 81 in. [2,057 mm] 14.85 in. [377
mm]
77.4 in. [1,966
mm]
1 in. NPT
200L/N 21 in. [533 mm] 81 in. [2,057 mm] 13.7 in. [348 mm] 77.4 in. [1,966
mm]
1 in. NPT
Electric and Gas Connection Locations for Gas Models Starting 3/11/13
TMB2400N_SVG
B
D
D
B
C
C
A
A
21
1. 120L/N
2. 170L/N and 200L/N
Models
Electrical Connection Gas Connection
A B C D Diameter
120L/N 18.34 in. [466
mm]
77.84 in. [1,977
mm]
12.5 in. [318 mm] 70.5 in. [1,791
mm]
1 in. NPT
170L/N 21 in. [533 mm] 81 in. [2,057 mm] 14.85 in. [377
mm]
77.4 in. [1,966
mm]
1 in. NPT
200L/N 21 in. [533 mm] 81 in. [2,057 mm] 14.85 in. [377
mm]
77.4 in. [1,966
mm]
1 in. NPT
