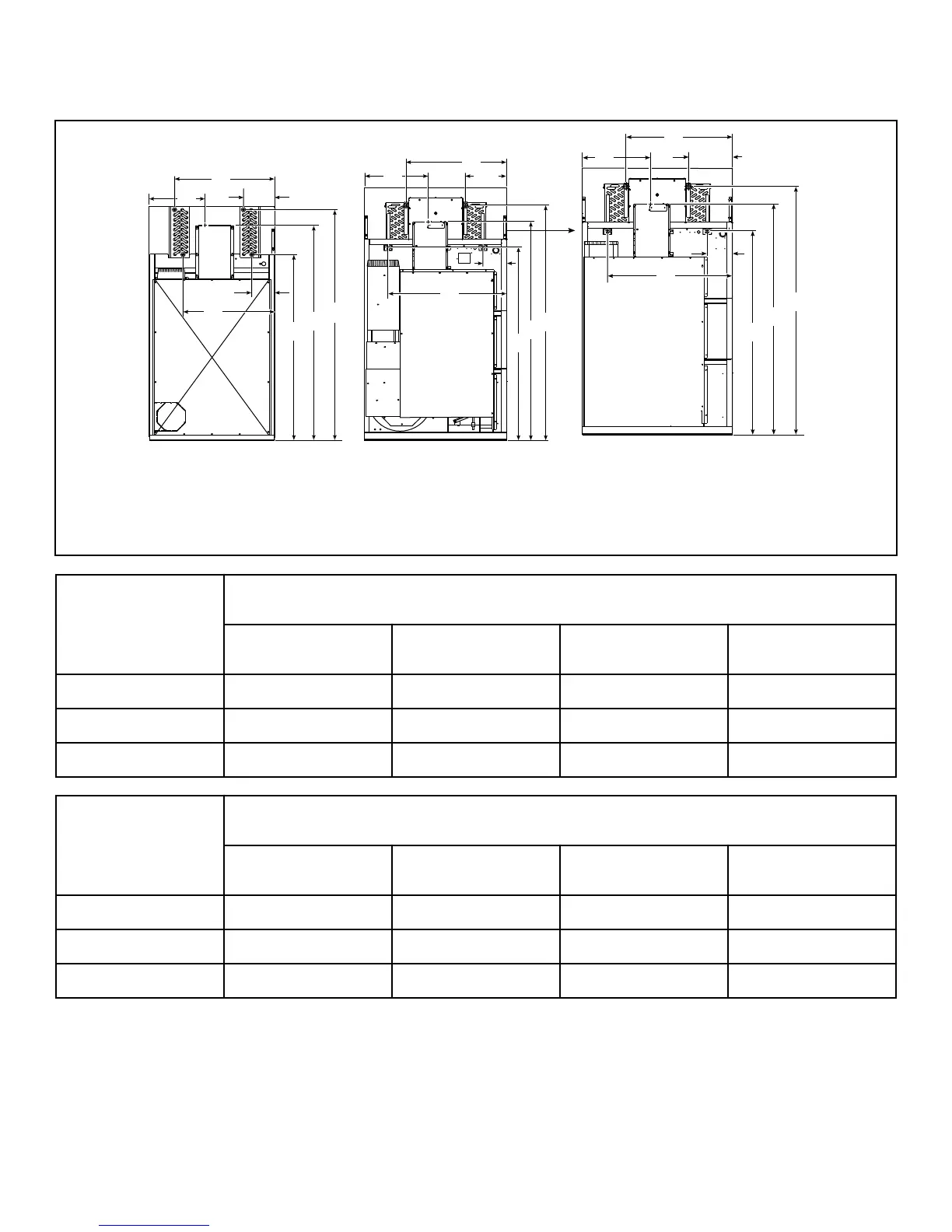

Electric and Steam Connection Locations for Steam Models Through 3/10/13
TMB2401N_SVG
B2
B2
B1
B1
D
D
E
E
F
F
A2
A2
A1
A1
C
C
21
TMB2383N_SVG
B2
B1
D
3
E
F
A2
A1
C
1. 120S
2. 170S
3. 200S
Models
Steam Inlet
Diameter A1 A2 F
120S 3/4 in. NPT 35.875 in. [911 mm] 13.375 in. [340 mm] 82.75 in. [2,102 mm]
170S 3/4 in. NPT 37.625 in. [956 mm] 15.25 in. [387 mm] 88 in. [2,235 mm]
200S 3/4 in. NPT 37.625 in. [956 mm] 15.25 in. [387 mm] 88 in. [2,235 mm]
Models
Steam Outlet
Diameter B1 B2 D
120S 3/4 in. NPT 34.625 in. [879 mm] 13.125 in. [333 mm] 68.5 in. [1,740 mm]
170S 1 in. NPT 44.625 in. [1,133 mm] 8.75 in. [222 mm] 71.75 in. [1,822 mm]
200S 1 in. NPT 44.625 in. [1,133 mm] 8.75 in. [222 mm] 71.75 in. [1,822 mm]
Specifications and Dimensions
©
