Alliance Laundry Systems CA170L - Specific Conversion Procedures

TMB2328N_SVG
4
3
2
1

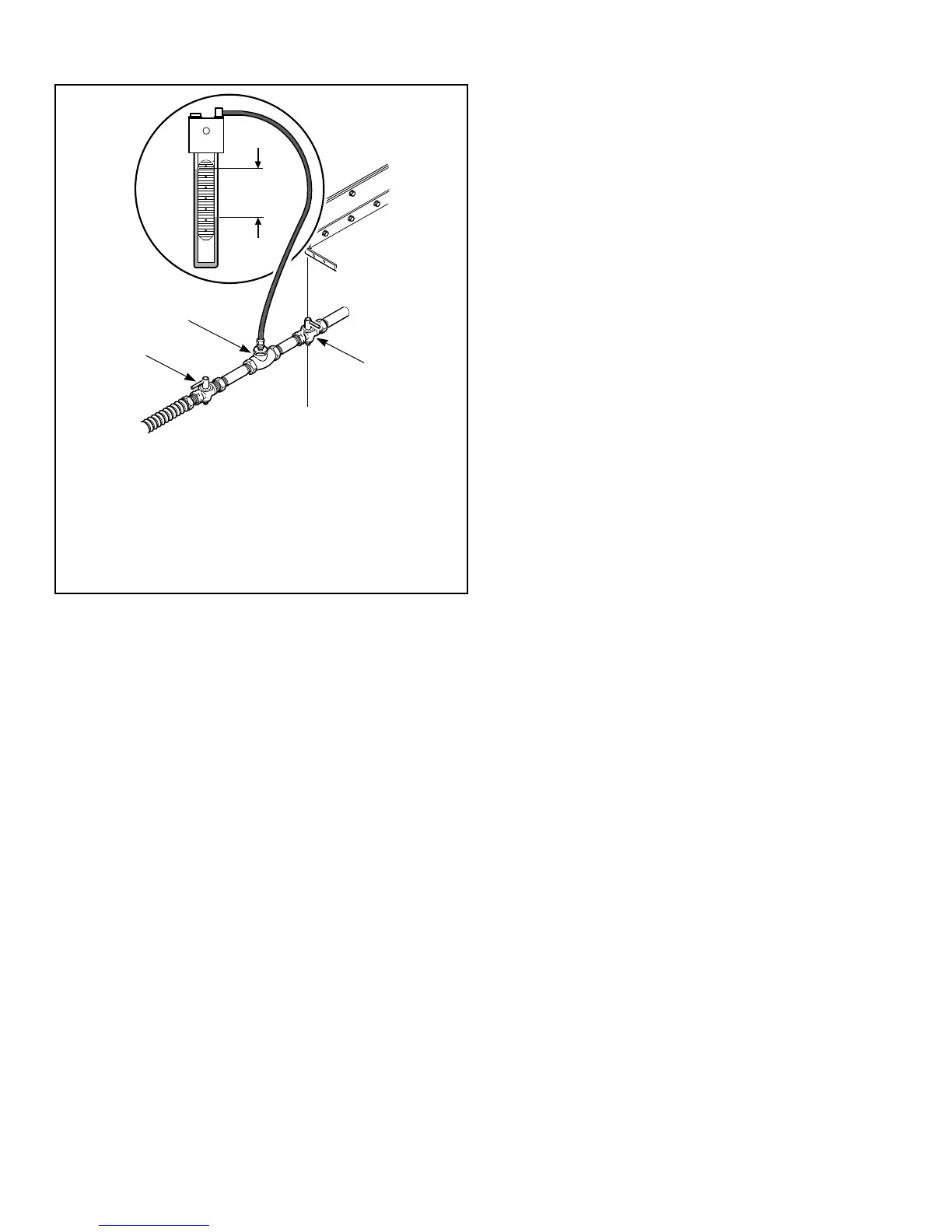

1. Gas Shut-Off Valve (Ahead of pressure tap) (Not Sup-
plied)
2. Pressure Tap
3. Gas Shut-Off Valve (Shown in closed position) (Not Sup-
plied)
4. Specified Local Inlet Pressure
Figure 7
Specific Conversion Procedures
How to Convert Gas Valve from Regulated to Unregu-
lated
NOTE: Conversion from regulated to unregulated is on-
ly needed when regulated tumble dryers were ordered,
but unregulated tumble dryers were needed.
1. Disconnect electrical power from tumble dryer. Close gas
shut-off valve to tumble dryer. Refer to Figure 7 .
2. Follow instructions in Conversion Kit.
Models through
3/10/13
Part No. M400763 (two kits
required)
Models starting
3/11/13
Part No. 44240401P
NOTE: These kits do not contain any burner orifi-
ces.
3. Replace burner orifice(s) as per Table 1 .
4. If applicable, peel off the appropriate conversion sticker (in-
cluded with machine) and apply it to the serial plate over the
“ADJUSTED FOR ______ GAS: ______” information.
5. Commission tumble dryer for use.
How to Change Burner Orifice Size
1. Disconnect electrical power from tumble dryer. Close gas
shut-off valve to tumble dryer. Refer to Figure 7 .
Installation
©
Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
34 Part No. 70458101ENR10
