6
1
2
3
4
5

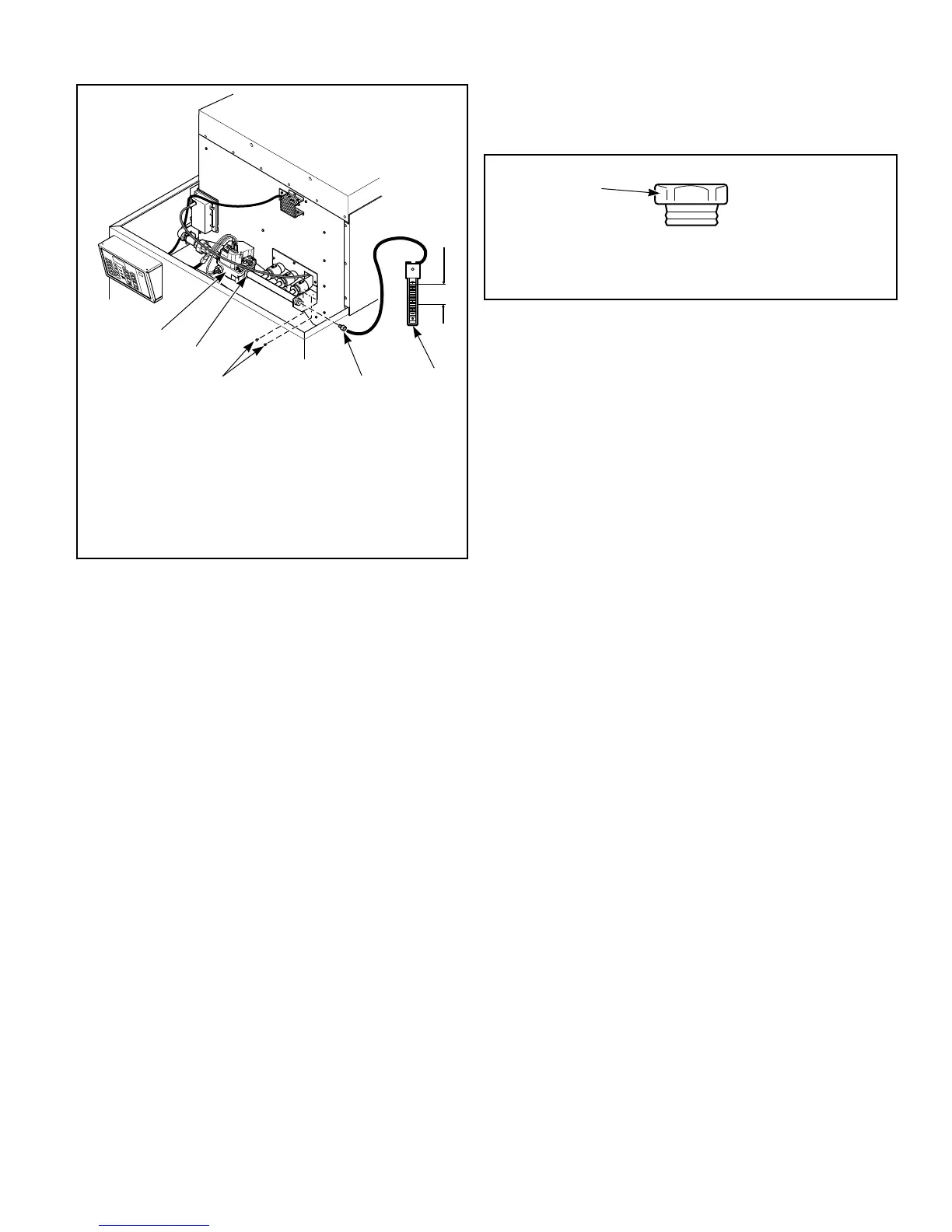

1. Manometer
2. Pressure Tap
3. Burner Tube Attaching Screws
4. Gas Valve Flange
5. Gas Valve
6. Specified Pressure
Figure 8
2. Remove gas valve:
a. Remove the burner orifice(s) from the spud holder.
b. When converting from Natural Gas to L.P. Gas, the left-
most burner and orifice (viewed from front) must be re-
moved.
c. In place of the removed orifice, a blank orifice (Part No.
M400995) and a Burner Opening Cover (Part No.
M413099) must be installed.
3. Install the new, correct burner orifice(s). Refer to Figure 9
and Table 1 . Torque each to 9 – 10 Nm.
4. Reinstall spud holder assembly to gas valve, making certain
burner orifice(s) are in line with burner tube opening. Refer to
Figure 9 .
5. Commission tumble dryer for use.
NOTE: Blank burner orifices are Part No. M400995.
How to Adjust Gas Valve Governor/Regulator
1. Check gas burner orifice (manifold) pressure as follows. Re-
fer to Figure 8 .
2. Remove screw plug from pressure tap.
3. Connect a “U”-tube manometer (or similar pressure gauge) to
the burner orifice (manifold) pressure tap.
4. Start tumble dryer and note pressure once flame is burning.
Remove regulator cap and adjust regulator screw until the
burner orifice pressure per applicable table is achieved. Re-
place regulator cap. Refer to Figure 8 .
5. Commission tumble dryer for use.
Burner Orifice
1. Size Stamped on Orifice
Figure 9
Installation
©
Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
35 Part No. 70458101ENR10
