Alliance Laundry Systems CA170L - Electric and Gas Connection Locations for Gas Models through 3;10;13

Cabinet Dimensions
Models F G H I* J* K*
170L/N/S 53.12 in. [1,349
mm]
94 in. [2,388
mm]
75.12 in. [1,908
mm]
48.86 in. [1,241
mm]
50.45 in. [1,281
mm]
62.5 in. [1,588
mm]
200L/N/S 53.12 in. [1,349
mm]
94 in. [2,388
mm]
75.12 in. [1,908
mm]
48.86 in. [1,241
mm]
50.45 in. [1,281
mm]
62.5 in. [1,588
mm]
* Fire suppression system optional - may not be on machine. Refer to Position and Level the Tumble Dryer to temporarily re-
duce the heights of these models.
Exhaust Outlet Dimensions and Locations
Models V W X Y
170L/N/S 42.38 in. [1,076 mm] 6.75 in. [171 mm] 12 in. [305 mm] 7 in. [178 mm]
200L/N/S 42.38 in. [1076 mm] 6.75 in. [171 mm] 12 in. [305 mm] 7 in. [178 mm]

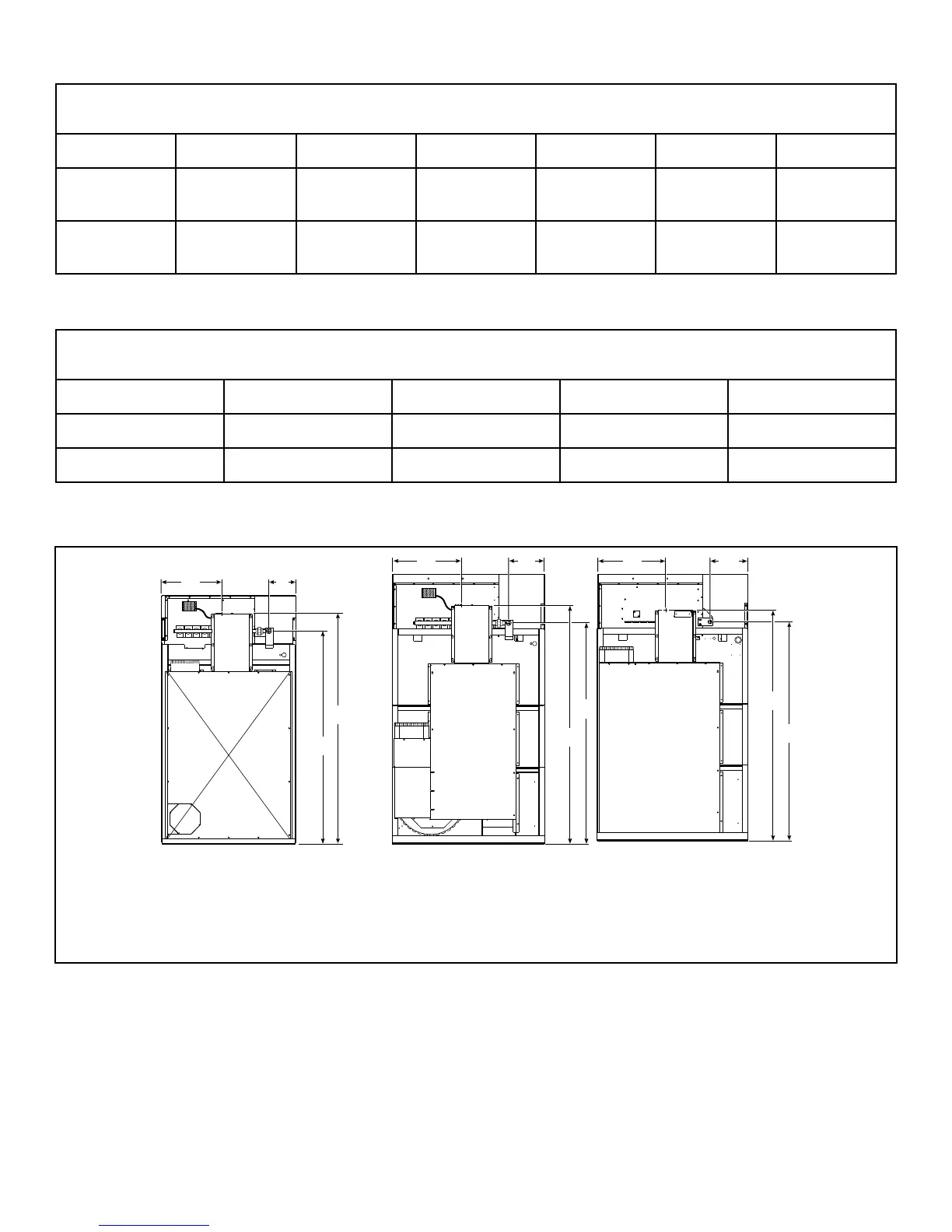

Electric and Gas Connection Locations for Gas Models Through 3/10/13
TMB2255N_SVG
D
B
C
A
B
D
C
A
21
TMB2382N_SVG
A
D
B
C
3
1. 120L/N
2. 170L/N
3. 200L/N
Specifications and Dimensions
©
Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
18 Part No. 70458101ENR10
