Alliance Laundry Systems CA170L - 170 And 200 Series Tumble Dryer Dimensions and Exhaust Outlet Locations

Exhaust Outlet Dimensions and Locations
Models U V W X Y Z
120L/N/E 63.45 in. [1,612
mm]
8.44 in. [214
mm]
10 in. [254
mm]
8.18 in. [208
mm]
6.82 in. [173
mm]
8.18 in. [208
mm]
120S 60.7 in. [1,542
mm]
8.44 in. [214
mm]
10 in. [254
mm]
8.18 in. [208
mm]
6.82 in. [173
mm]
8.18 in. [208
mm]

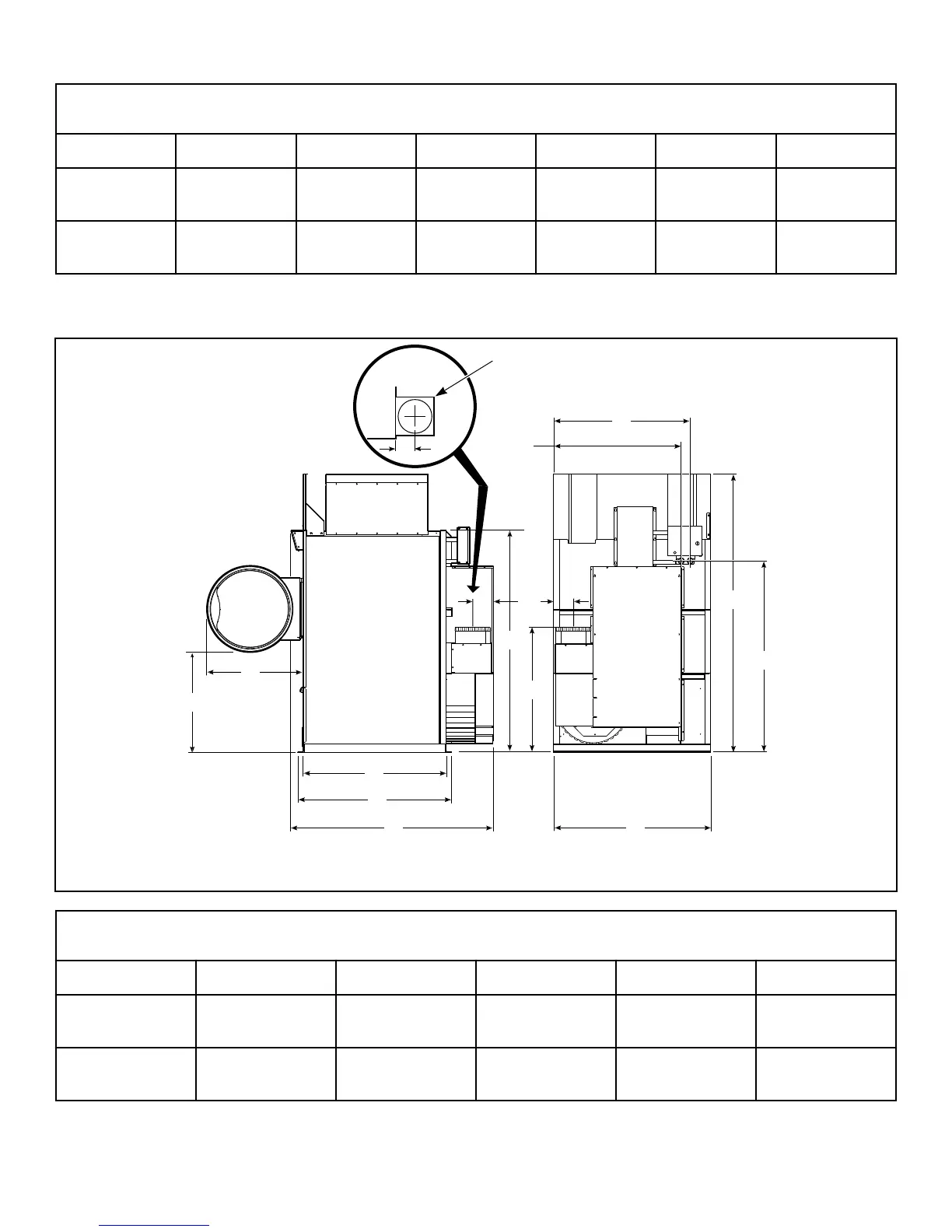

170 and 200 Series Tumble Dryer Dimensions and Exhaust Outlet Locations
TMB2424N_SVG
V
Y
X
W
F
K
G
I
J
E
D
C
H
B
A
1
1. Top View of Exhaust Duct
Cabinet Dimensions
Models A B C D E
170L/N/S 33.86 in. [860
mm]
32.5 in. [ 826 mm] 48.33 in. [1,228
mm]
51.75 in. [1,314
mm]
68.85 in. [1,749
mm]
200L/N/S 32.1 in. [815 mm] 35.6 in. [ 904 mm] 55.83 in. [1,418
mm]
59.25 in. [1,505
mm]
76.35 in. [1,939
mm]
Specifications and Dimensions
©
Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
17 Part No. 70458101ENR10
