Alliance Laundry Systems CA170L - For CE Models Only; Service;Ground Location

• A dedicated ground conduit (wire) must be connected be-
tween the electrical service box ground bar and tumble dryer
ground screw.
WARNING
To reduce the risk of electrical shock, de-energize
the electrical circuit being connected to the tumble
dryer before making any electrical connections. All
electrical connections should be made by a qualified
electrician. Never attempt to connect a live circuit.
W409R1
CAUTION
Label all wires prior to disconnection when servicing
controls. Wiring errors can cause improper and dan-
gerous operation. Verify proper operation after serv-
icing.
W071
For CE Models Only
All models are factory-equipped with an emergency stop button
on the front panel.
NOTE: Activation of the emergency stop switch stops
all machine control circuit functions, but DOES NOT re-
move all electrical power from machine.
Service/Ground Location

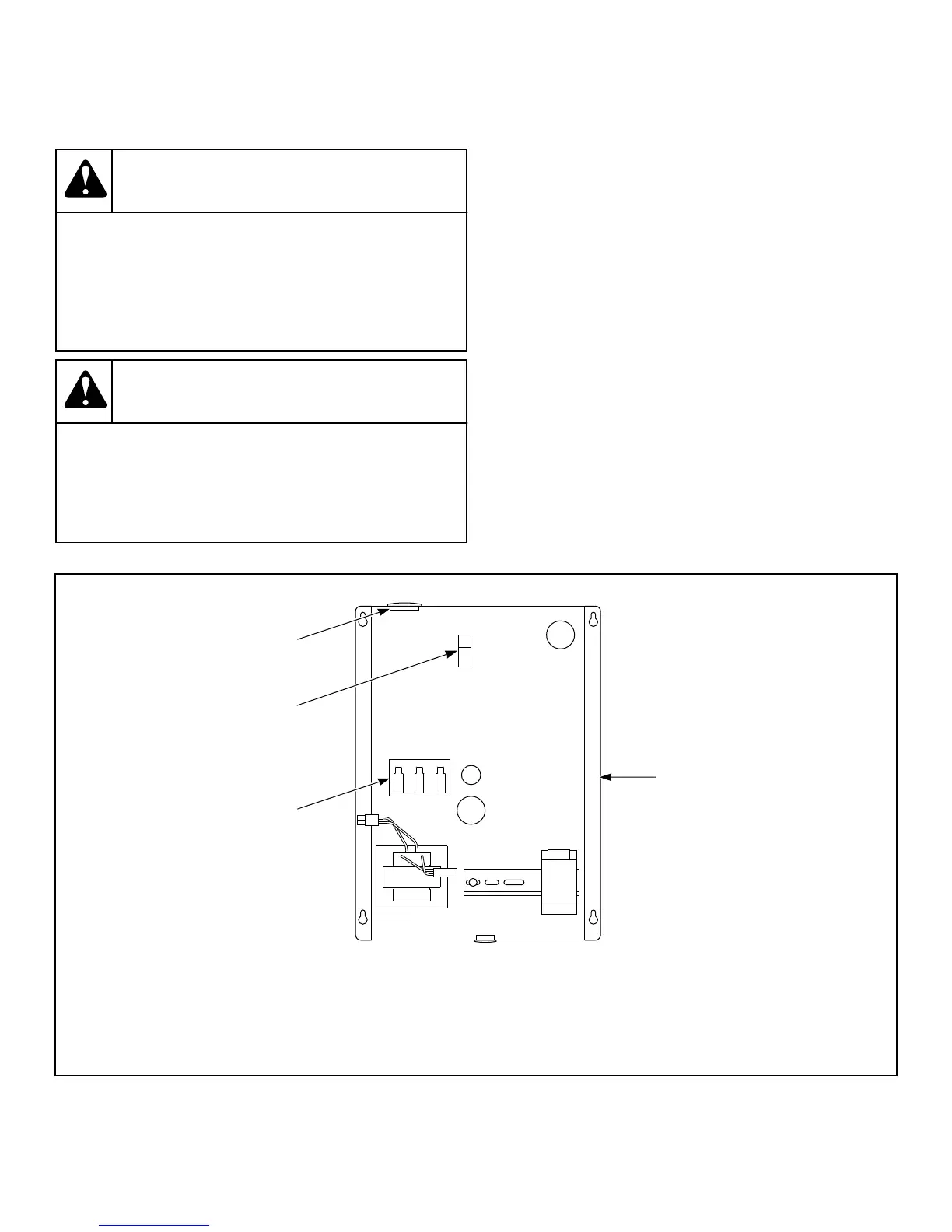

Ground and Terminal Block Locations for Non-CE Gas and Steam Models
TMB2269N_SVG
1
2
3
4
1. Junction Box
2. Terminal Block
3. Earth/Ground
4. Electrical Service
Figure 17
