Non-CE
and Non-
Australian
Models
Australian
and Kore-
an Models
CE Mod-
els
Recommend-
ed
11 in. w.c. 2.74 kPa 27.4 mbar
Minimum 10 in. w.c. 2.49 kPa 24.9 mbar
For converting Non-CE models from Natural Gas to L.P. Gas:
Model Hertz
Date
Range Part No.
120 60 Through
2/14/11
M4577P3
120 60 Starting
2/15/11
M4578P3
120 50 Through
2/14/11
M4973P3
120 50 Starting
2/15/11
M4975P3
170 60 - M4592P3
170 50 - M4974P3
200 50 and 60 - 44257701
CE GASES refer to Installing CE Gas Drying Tumble Dryers
section, the above data does not apply to the CE.
Turn on gas and check all pipe connections (internal and exter-
nal) for gas leaks with a non-corrosive leak detection fluid. Purge
air in gas service line by operating the tumble dryers in the drying
mode. If burner does not light and unit goes into lockout, open
and close the door and restart. Repeat these steps until burner ig-
nites. Use pipe compound, resistant to actions of L.P. gas, on all
pipe threads.
WARNING
Check all pipe connections, internal and external, for
gas leaks using a non-corrosive leak detection fluid.
To reduce the risk of explosion or fire, DO NOT USE
AN OPEN FLAME TO CHECK FOR GAS LEAKS! Gas
connections should be checked twice a year for leak-
age.
W635

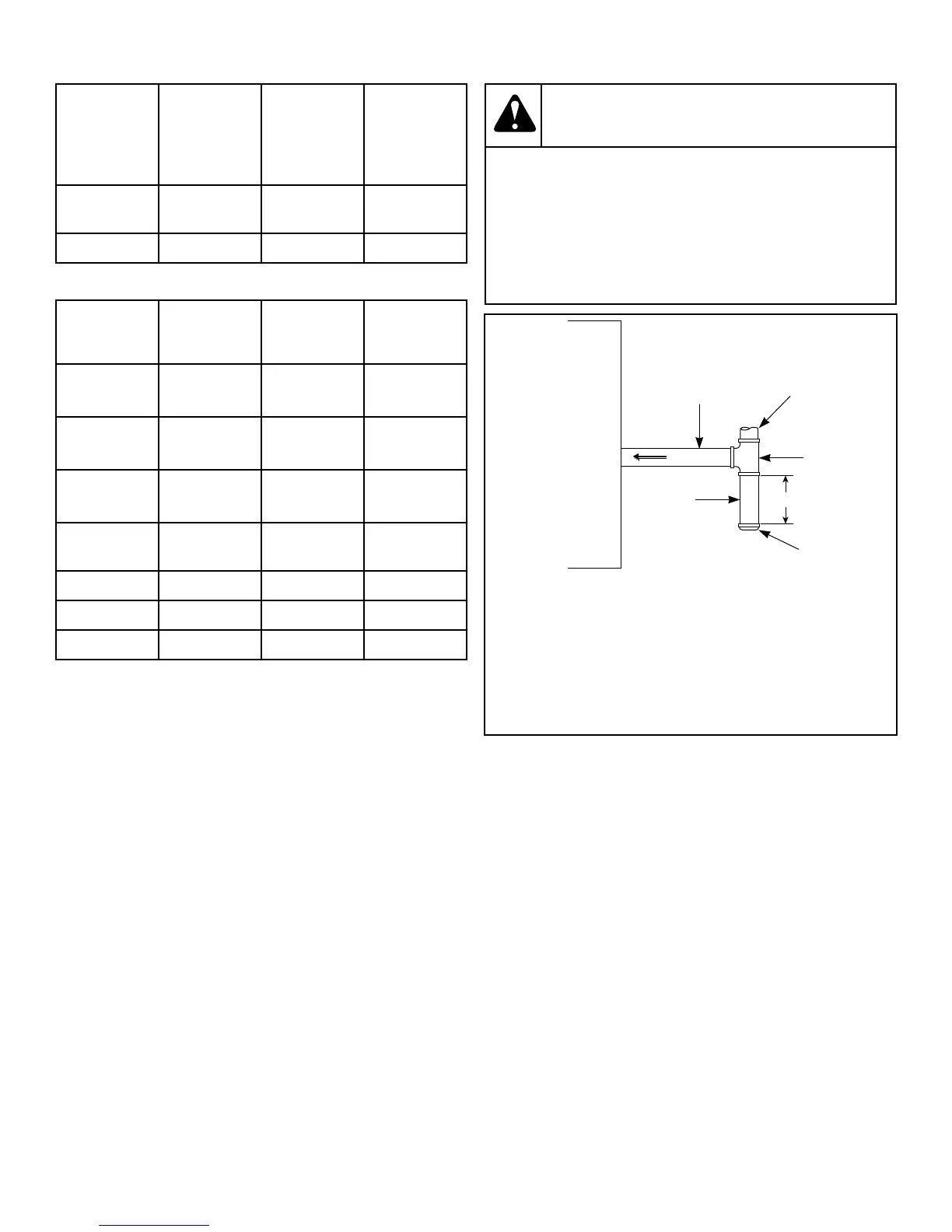

1. Gas Line to Tumble Dryer
2. Gas Supply Piping System
3. Gas "T" Fitting
4. 3 in. [76 mm] Minimum Gas Pipe
5. Gas Pipe Cap
6. Sediment Trap
Figure 15
Gas Requirements
©
Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
43 Part No. 70458101ENR10
