120 Series Tumble Dryers
TMB2014N_SVG
7
6
6
3
5
12
13
1
2
11
8
10
9
4

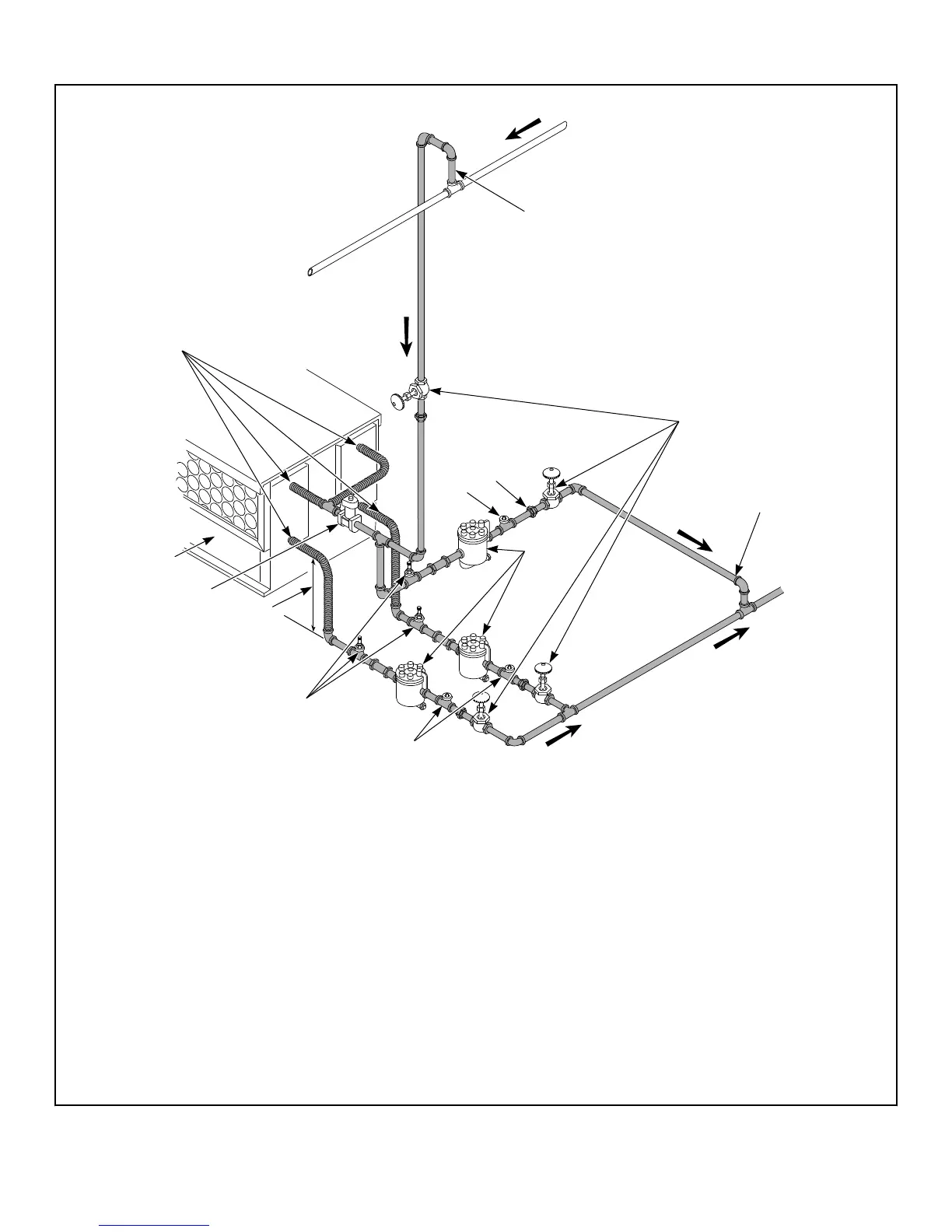

NOTE: Refer to Table 8 for sizing of steam lines. Piping must also be sized accordingly for length of runs and
number of elbows.
1. Supply
2. 12 in. [305 mm] Riser
3. Shut-Off Valve
4. Condensate Return Line from Supply Line
5. Return
6. Check Valve
7. Vacuum Breaker (Optional)
8. 18 in. [457 mm] Drop
9. Solenoid Valve (Supplied with machine)
10. Steam Bonnet
11. Flexible Line
12. Union
13. Trap with Built-In Strainer
Figure 21
Steam Requirements
©
Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
60 Part No. 70458101ENR10
