LED Color
Description
Red Fault Indication Code
Table 12
The Diagnostic LED will flash error codes one half second on
and one half second off. Error codes are separated by a one sec-
ond pause before the code is repeated.
Error Code
DGN LED
status Fault Type
1 Red Ignition Control
Internal Failure
2 2 Red Flashes Gas Valve Not
Connected
3 3 Red Flashes Ignition/Flame
Sense Failure
4 4 Red Flashes Reset Switch is
Shorted
5 Slow Red and
Green Flashes
Low Voltage De-
tection
6 Fast Red and Or-
ange Flashes
Ignition Control is
in Reset Delay

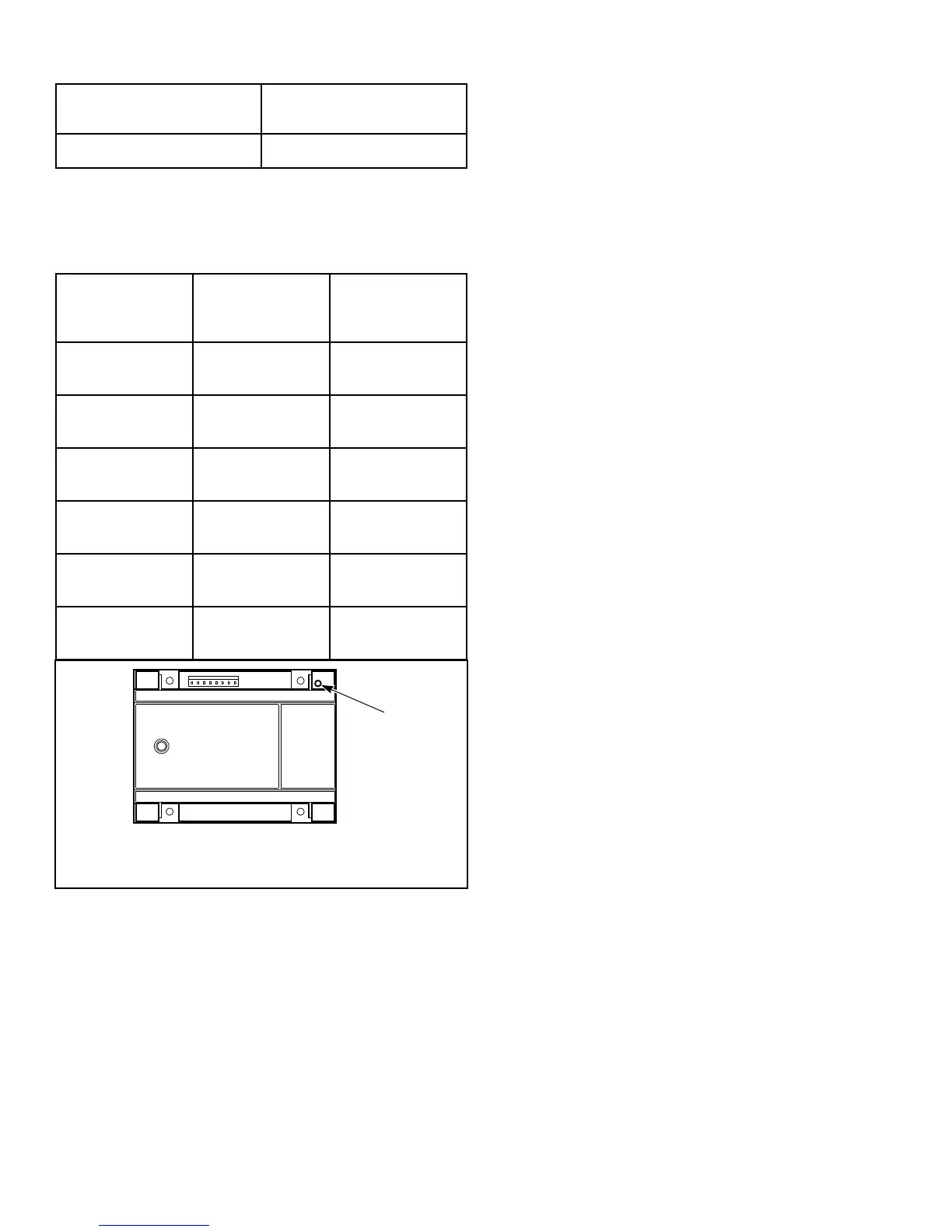

1. Diagnostic (DGN) LED
Figure 44
Operating Instructions
©
Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
77 Part No. 70458101ENR10
