Alpha tools WL 500-550 - Mitre Saw

12
15°
8
22,5°
6
30°
5
36°
4
45°
90°
4
8
9
12
1
2
3
3
15
17
14
13
16
18
10
11
7
5
6
4
5
6
9
20Art.Nr. 22676937 03/2018
GB
Fitting and usage instructions for oblique mitre saw
Before use, read attentively the usage indications.
Intended use
This product is suitable for multi-angle cutting of dierent types of materials, such as wood, plastic, aluminum, etc.
Specication
Cutting width at 90° 160 mm
Cutting width at 45° 110 mm
Cuto height (max.) 100 mm
Table length 400 mm
Table width 76 mm
Blade length 550 mm
Blade width 45 mm
Cutting angle, in degrees: 15°, 22,5°, 30°, 36°, 45°, 90°

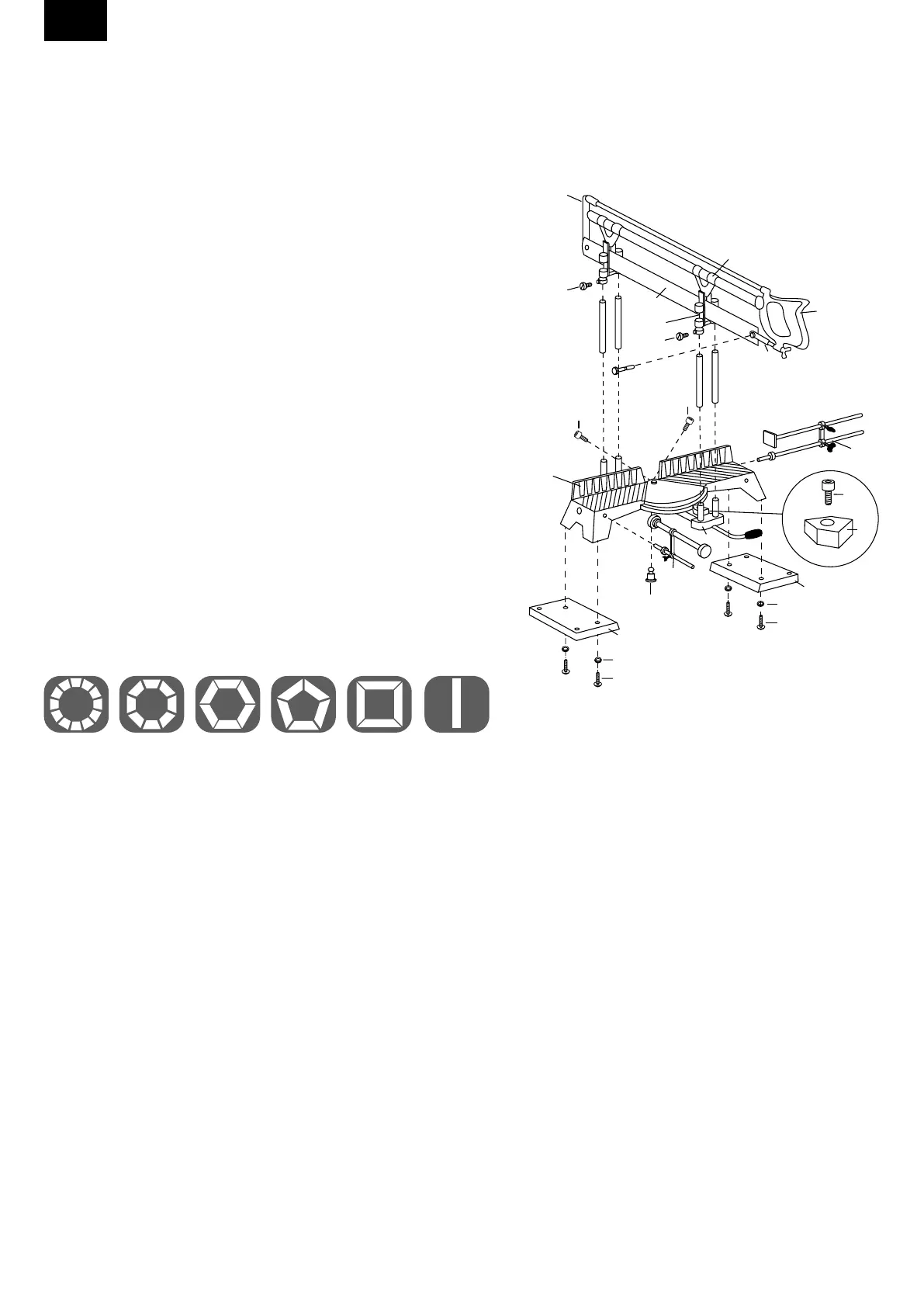

List of accessories
1. Horizontal vice 10. Position sensor
2. Vertical vice 11. Screw position sensor
3. Adjustment screw 12. Cutting table
4. Platform foundation 13. Bolts blade saw
5. Washer 14. Saw grip
6. Seat screw 15. Saw support
7. Angle sheet 16. Saw blade
8. Shaft angle 17. Nozzle guide
9. Adjustment screw of shaft angle 18. Saw tailpiece
Technical data
1. Saw cutting table: Stable cutting table of high quality iron, coated with anticorrosive paint.
In addition to automatic blocking selected angle, as shown above, by screw driving it can adjust any
desired cutting angle.
2. Saw blade: Grip with blade which can be changed:
Saw equipped with standard adjustable saw blade. For iron must be xed a special saw blade
(not included in the delivery).
3. Adjusting the depth of cut: The depth of cut can be adjusted by screws.
4. Rip fence: Four rip fences provide a solid and accurate guidance of the saw frame.
Control indications
Please read carefully the instructions and check before installation if there are all mentioned individual parts.
1. Locate rstly the foundation platforms (4) at the ends of the cutting table (12) and secure them with seat screws (6)
2. Insert shaft angle (8) into round opening of the angle sheet (7). Place the cutting table (12) so that its bottom to point upward. Then beat
carefully the shaft angle (8), with a wooden hammer, in the cutting table (12) and fasten the shaft angle (8) with adjustment screw of shaft
angle (9) through the round opening on the angle sheet (7). Secure the position sensor (10) with the screw (11) on the angle sheet (7). Then
mount the two adjustments screws (3) so that the angle sheet (7) to be durable fastened with cutting table.
Remark: The size between the left side, right side, upper and inner side of the angle sheet (7), and cutting table, must not be overly large, in
order to get a vertical position between the toothed blade and the cutting table.
3. Adjust the cutting depth using the rip fence and fasten the adjustment screw (3). Adjust the saw support (15) with the rip fence.
4. Screw vertical vice (2) and horizontal vice (1) on cutting table (12), depending on the desired setting.
