18
Description of product
DB 534 02. 02

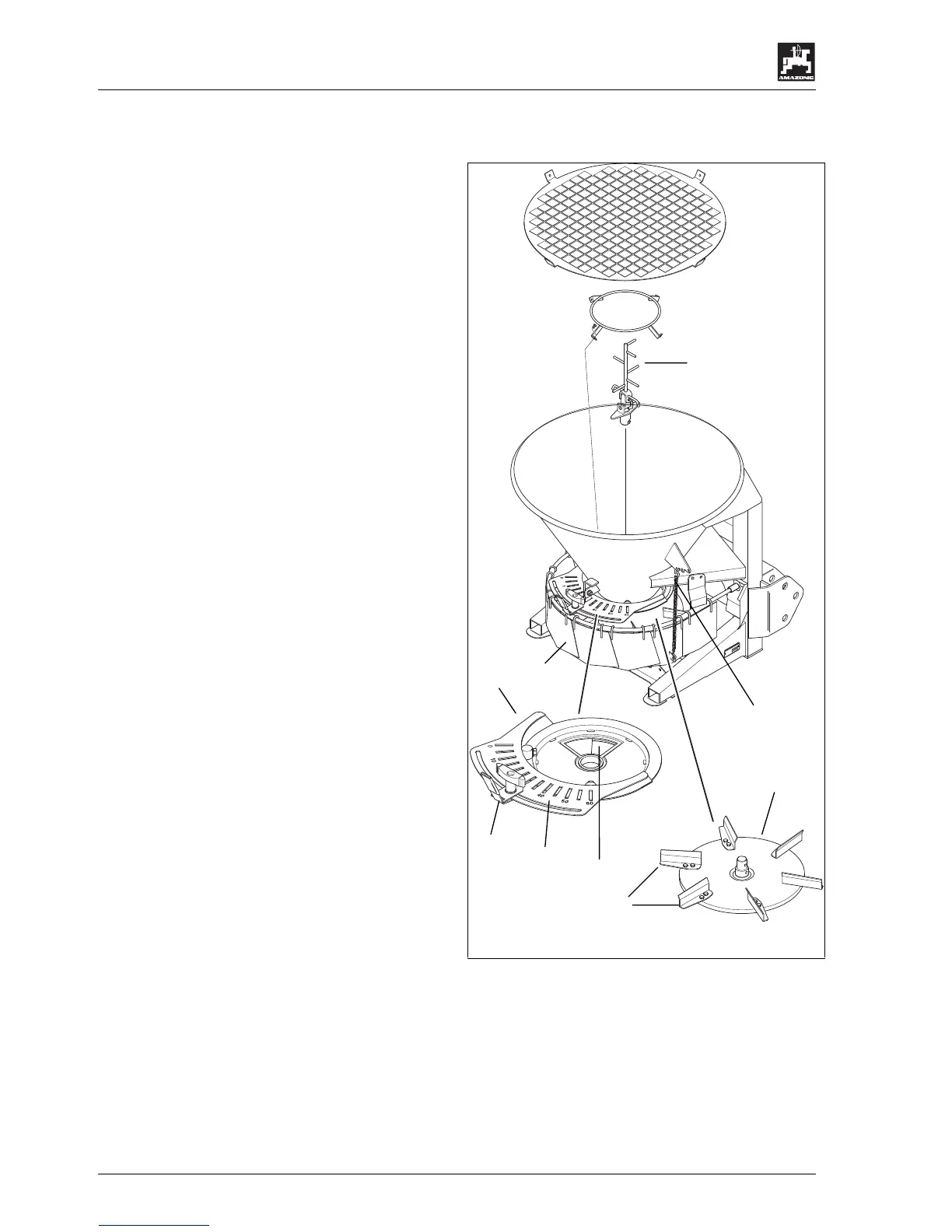

3.1 Function
The spreading material slides down the hopper walls
to the discharge opening (1) in the bottom group (2).
The agitator (3) provides an even spreading material
flow on to the spreading disc.
The spreading disc (4) rotates in clockwise direction
an is provided with 6 spreading vanes (5).
Setting the various spreading widths is done via the
multiple spread width reducer (6). Depending on
the kind of spreading material working widths of
between 1 and 6 m are settable.
The spread width reducer is adjusted via the chain
suspension (7) according to experience values.
Lifting the spread width reducer – increase of
working width.
Lowering the spread width reducer – reduction of
working width
The spread fan provided by the spreading disc can
be moved by twisting the bottom group along the
scale (8).
The shutter (9) allows the opening and closing of the
discharge opening (1) as well as the spread rate
setting.
To close the discharge opening move the shutter
(1) to scale figure "0" on the scale (8) and lock in this
position.
Read the shutter position for spread rate setting
off the scale (8). The necessary shutter position is
determined either by experience values or can be
taken from the setting chart.
D
4
9
2
0
5
H
a
s
b
e
r
g
e
n
-
z
u
l
.
N
u
t
z
l
.
:
Ty
p
:
M
a
s
c
h
.
N
r
.
:
1
2
3
4
5
6
7
8
9
