4.2 PTO shaft drive
The reduction gear (i = 1:2) for the spreading disc
and the agitator is driven via the PTO shaft. With this
gearbox the spreading disc rev. speed is approx. 270
min
-1
at a PTO shaft rev. speed of 540 min
-1
.
4.3 Fitting the PTO shaft
a
Danger of tipping over.
Assemble centrifugal broadcasters only
with empty hopper.
I
Only use the PTO shaft prescribed by
the manufacturer. Walterscheid-PTO
shaft (W100E-SD05-710).
I
Observe the instruction manual of the
PTO shaft manufacturer.

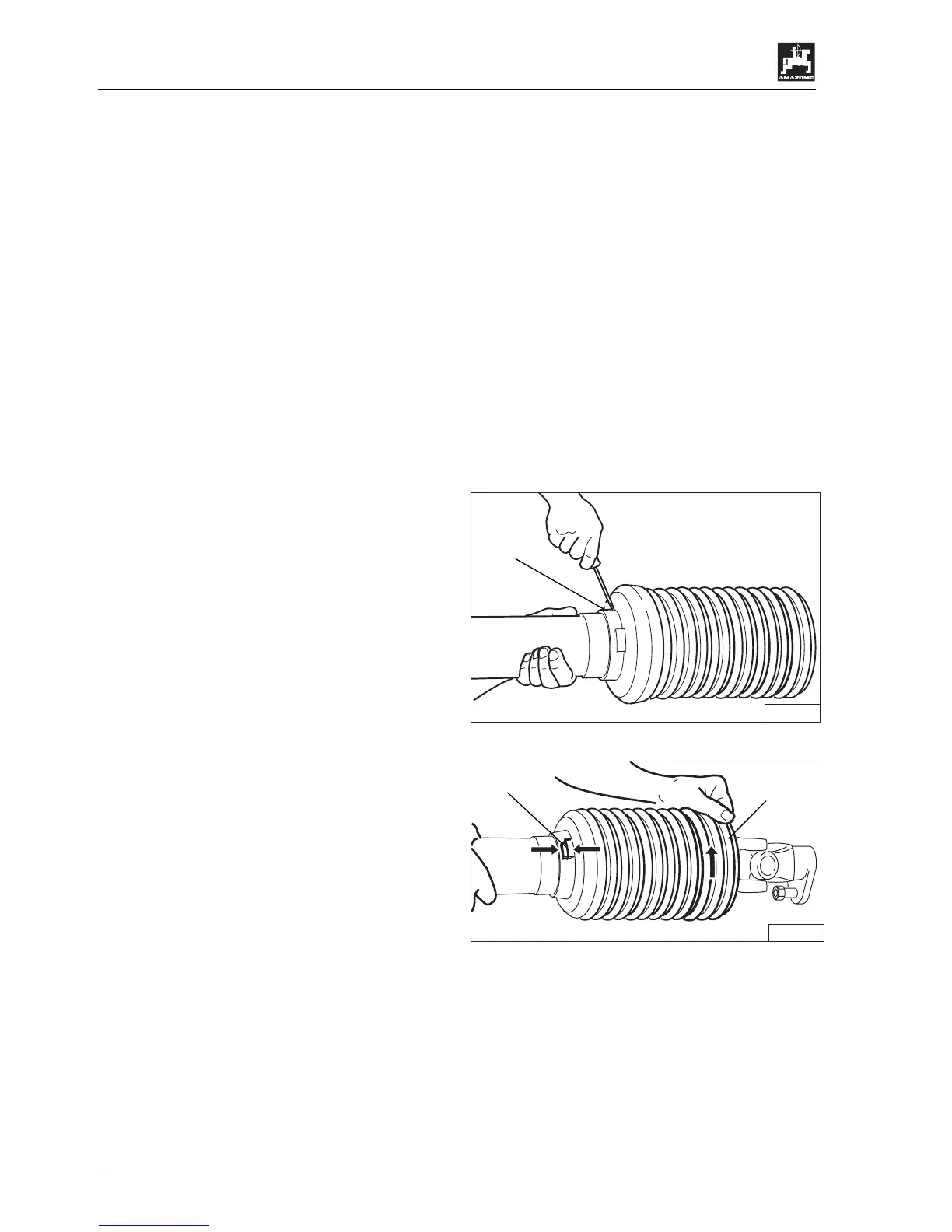

Remove the PTO shaft guard on the implement side
PTO shaft half:
- Tilt machine to the rear.
- Remove fixing bolt (1) n.
ZA 013a
- Twist cone (1) into fitting position (2).
ZA 014a
1
1
2
