Amazone E+S - Adjusting the Spread Fan Pattern

30
Putting into operation
DB 534 02. 02

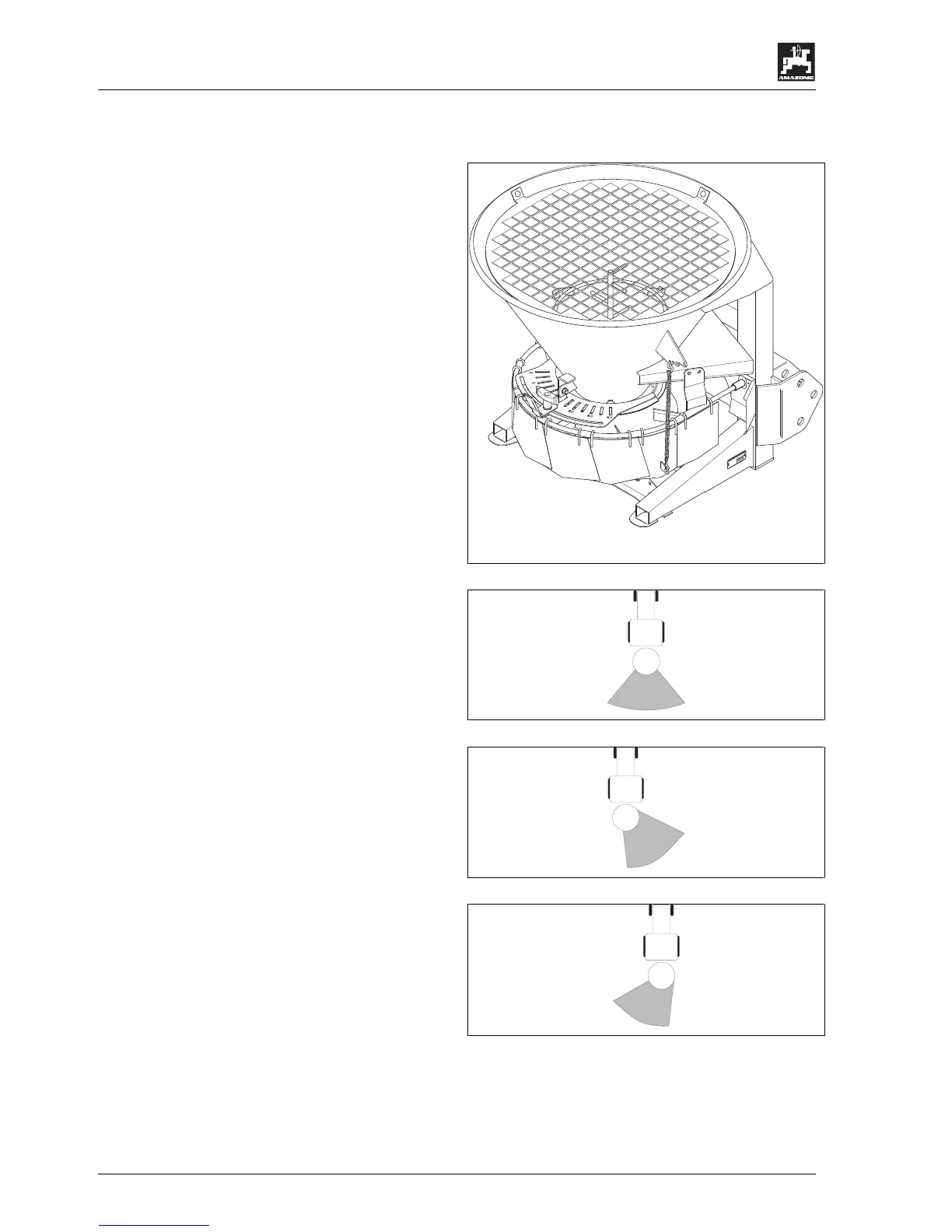

7.4 Swivelling the spread fan
The material spread from the spreading discs forms
the spread fan which can be swivelled by twisting the
bottom group (1) within the range of the scale (2).
The spread fan created by the
Procedure:
- Lift the bottom group locking ratchet (4) and twist
the bottom group (1) either in clockwise direction
or counter clockwise.
- Lower the bottom group locking ratchet (4) in
order to lock the bottom group (1) in this new
position.
D
49205
H
asb
ergen
-
zul.Nutzl.:
Typ:
M
a
s
c
h
.
N
r.:
Way of function:
• If the bottom group has been set to the scale
figure "30" ((neutral position) the spreading disc
creates a spreading material dependent
symmetric spread fan towards the implements
longitudinal axle.
• If the bottom group is twisted in direction of the
scale figure "0" (clockwise) the spreading disc
creates a spread fan which is moved to the right
hand side in relation to the implement’s
longitudinal axle (seen in driving direction).
• If the bottom group is twisted in the direction of
the scale figure "60", the spreading disc creates a
spread fan which is moved to the left hand side in
relation to the implement’s longitudinal axle (seen
in driving direction).
