8.4 Exchange of spreading vanes
I
Exchange spreading vanes as soon as
breakage by wear can be noted.
I
Take care when fitting the spreading
vanes. The open side of the L-shaped
spreading vanes (1) shows in rotating
direction (2).

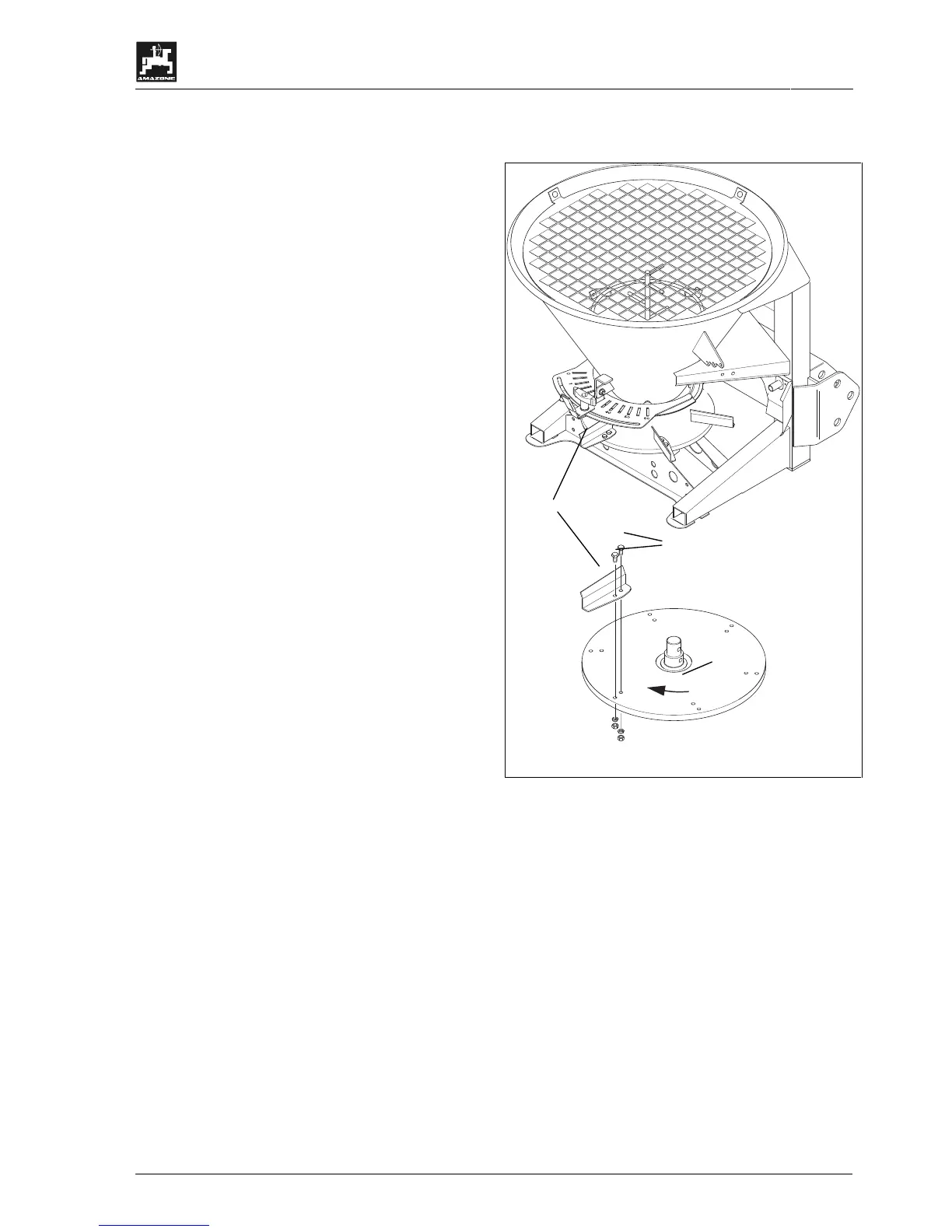

Exchange spreading vane as follows:
- Remove spreading width reducer.
- Remove bolts (3) and exchange spreading vane
(1).
- Retighten bolts (3) firmly.
