Amazone E+S - PTO Shaft Guard Assembly

On receipt of the machine
21
DB 534 02. 02

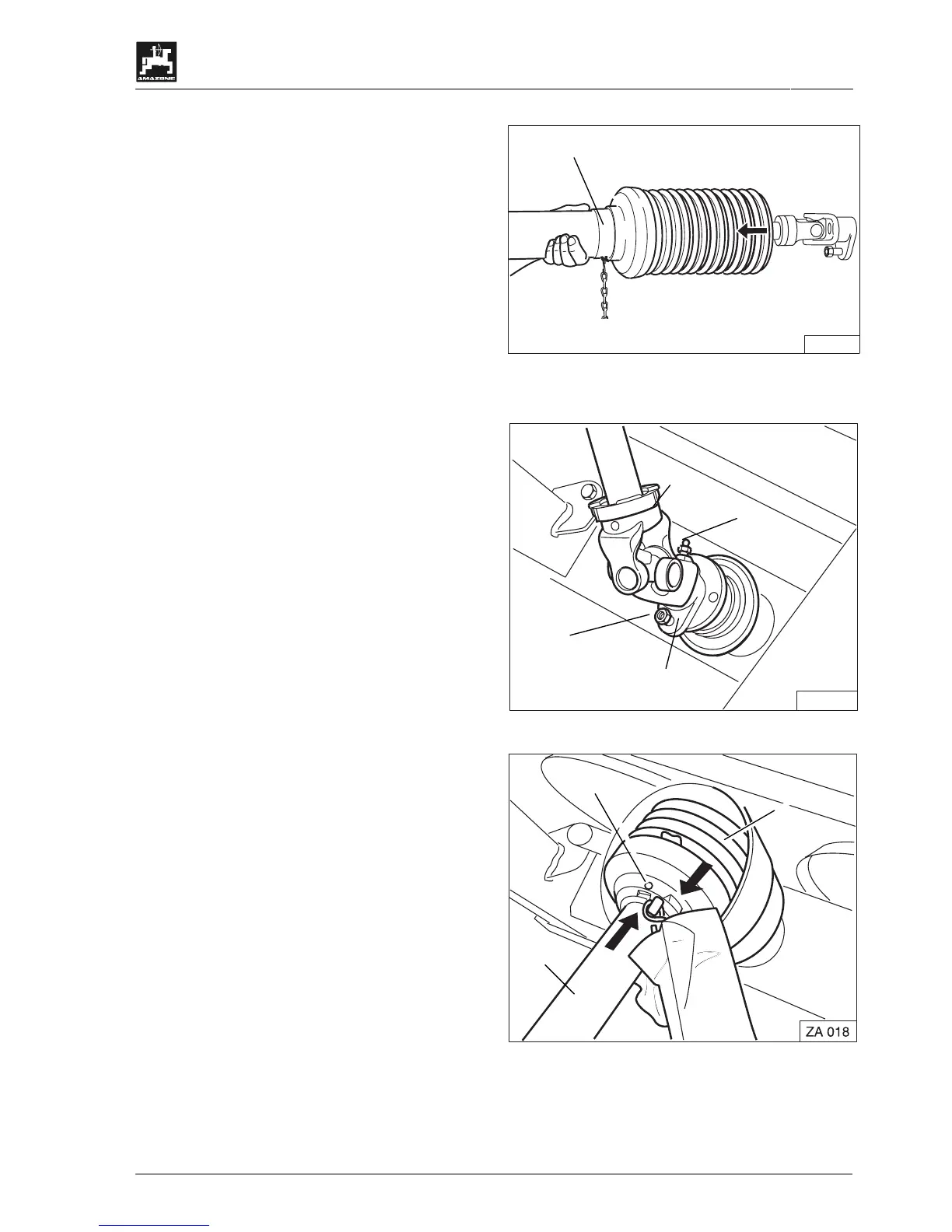

- Pull off protective half.
ZA 015a
I
Before fitting the PTO shaft clean and
grease the gearbox input shaft
- Slacken greasing nipple (1)
- Apply PTO shaft (2).
- Affix connecting yoke (3) with shear bolt (4).
- Screw in grease nipple (1).
ZA 016a
Assembly of PTO shaft guard:
- Push on guard half (1).
- Twist guard cone (2) into fitting position.
- Screw in locking bolt (3).
- Tilt machine to the front.
- Apply second PTO shaft half and affix in the
upper link bracket.
- Secure the guard tube on the frame by using a
chain.
1
2
1
3
4
2
3
1
