Layout and function of the sprayer boom
6.3 Boom width reduction (option)

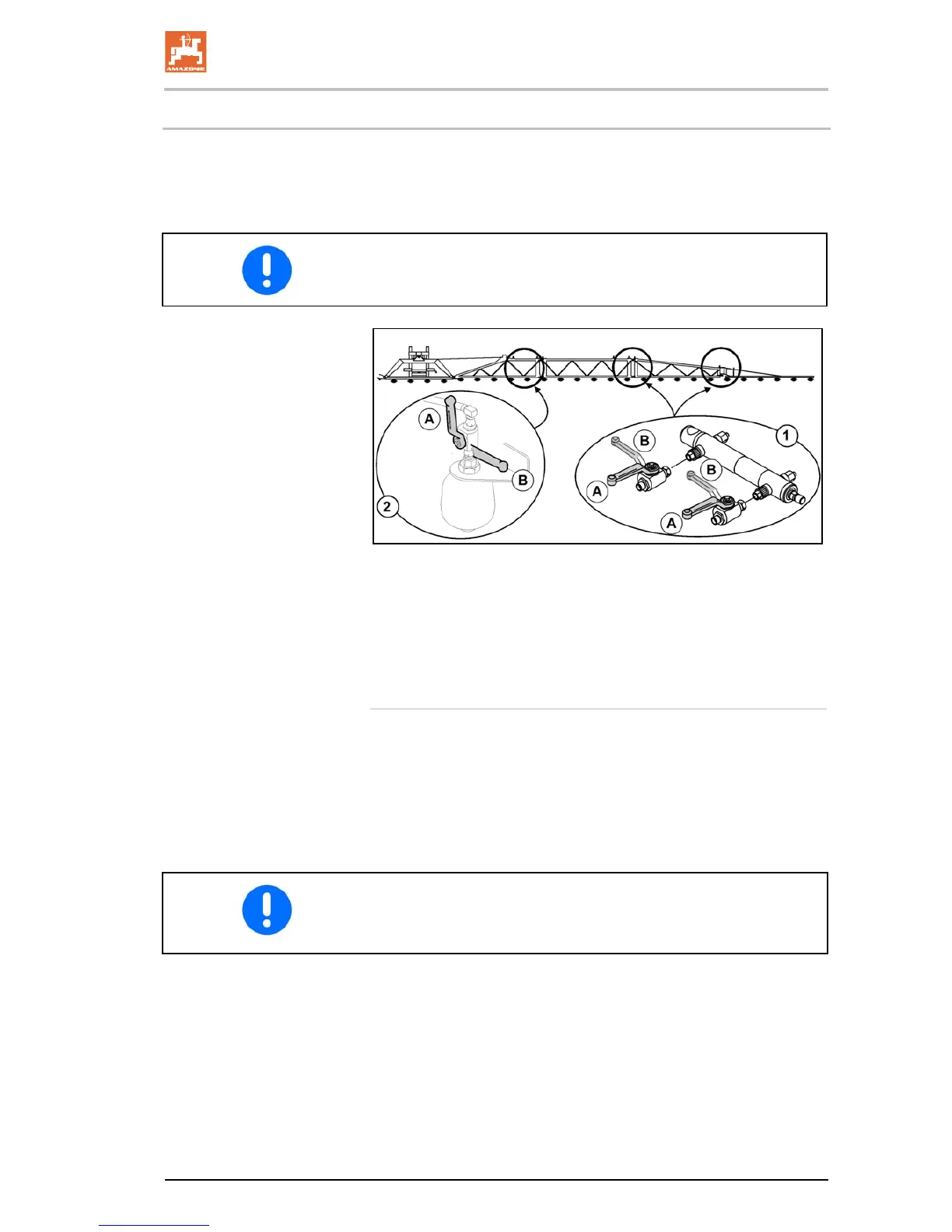

With the boom width reduction, one or two booms can remain folded
in during operation depending on the version.
In addition, switch on the hydraulic accumulator (optional) as a colli-
sion protection.
The corresponding part-width sections have to be switched off on the
control terminal.
(2) Hydraulic accumulator (optional)
(A) Stop tap opened
(B) Stop tap closed
Working with reduced working width
1. Reduce the boom width hydraulically.
2. Close the stop taps for the boom width reduction.
3. Open the stop tap for the boom damping.
4. Switch off the corresponding part-width sections on the control
terminal.
5. Perform work with reduced working width.
Close the stop tap for the boom damping.
• For road transport
• For use with full working width
