Layout and function of the sprayer boom
106
UX01 Super CP Plus BAG0157.3 03.18

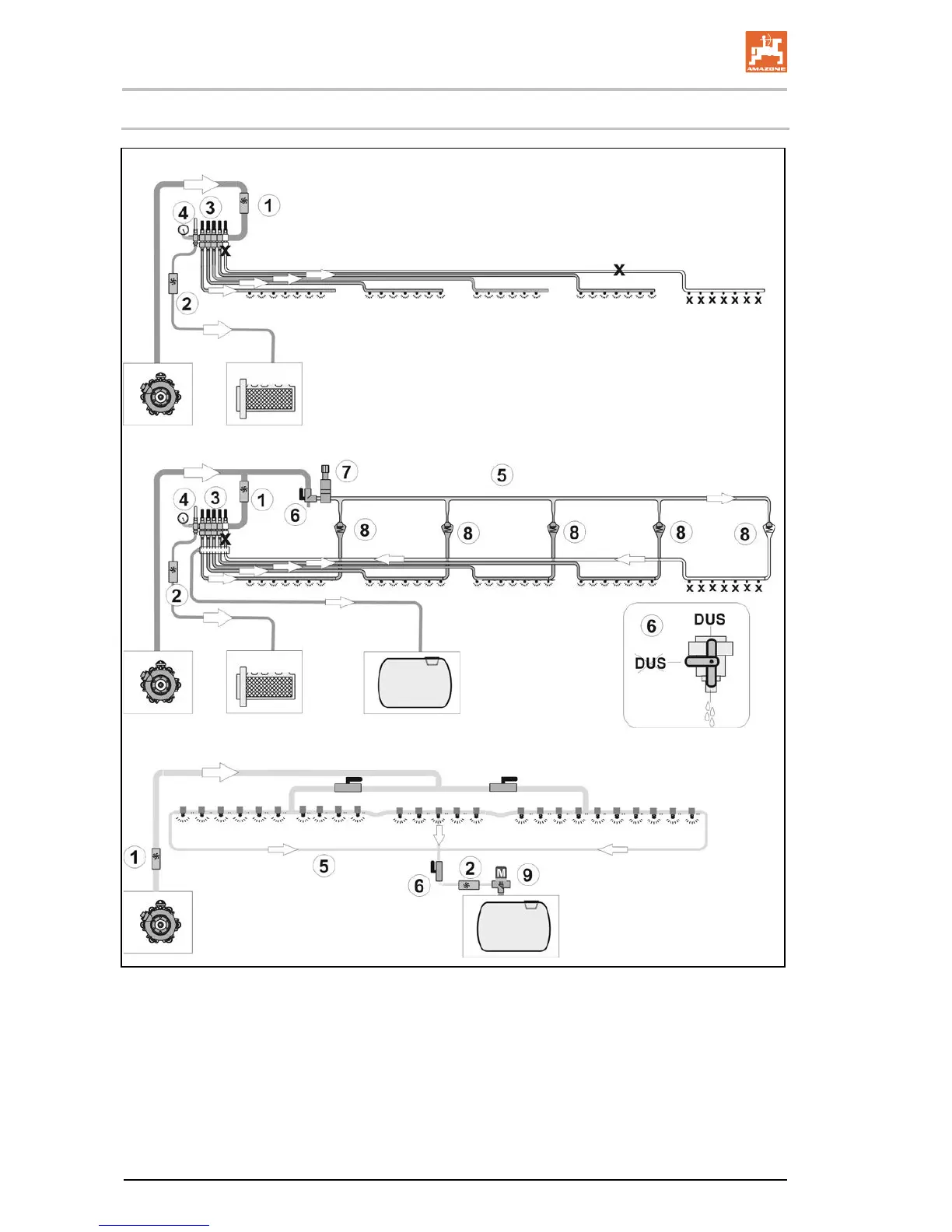

6.7 Spray lines
Spray lines with part-width section valves
Spray lines with part-width section valves and DUS pressure circulation system
Spray lines with single nozzle control and DUS Pro pressure circulation system
(1) Flow meter
(2) Flow meter
(3) Boom part width section valves
(4) Bypass valve for low application rates
(5) Pressure circulation line
(6) DUS stop tap
(7) Pressure control valve
(8) Check valve
(9) Pressure control valve
