Layout and function of the basic implement
UX01 Super CP
Plus BAG0157.3 03.18
71

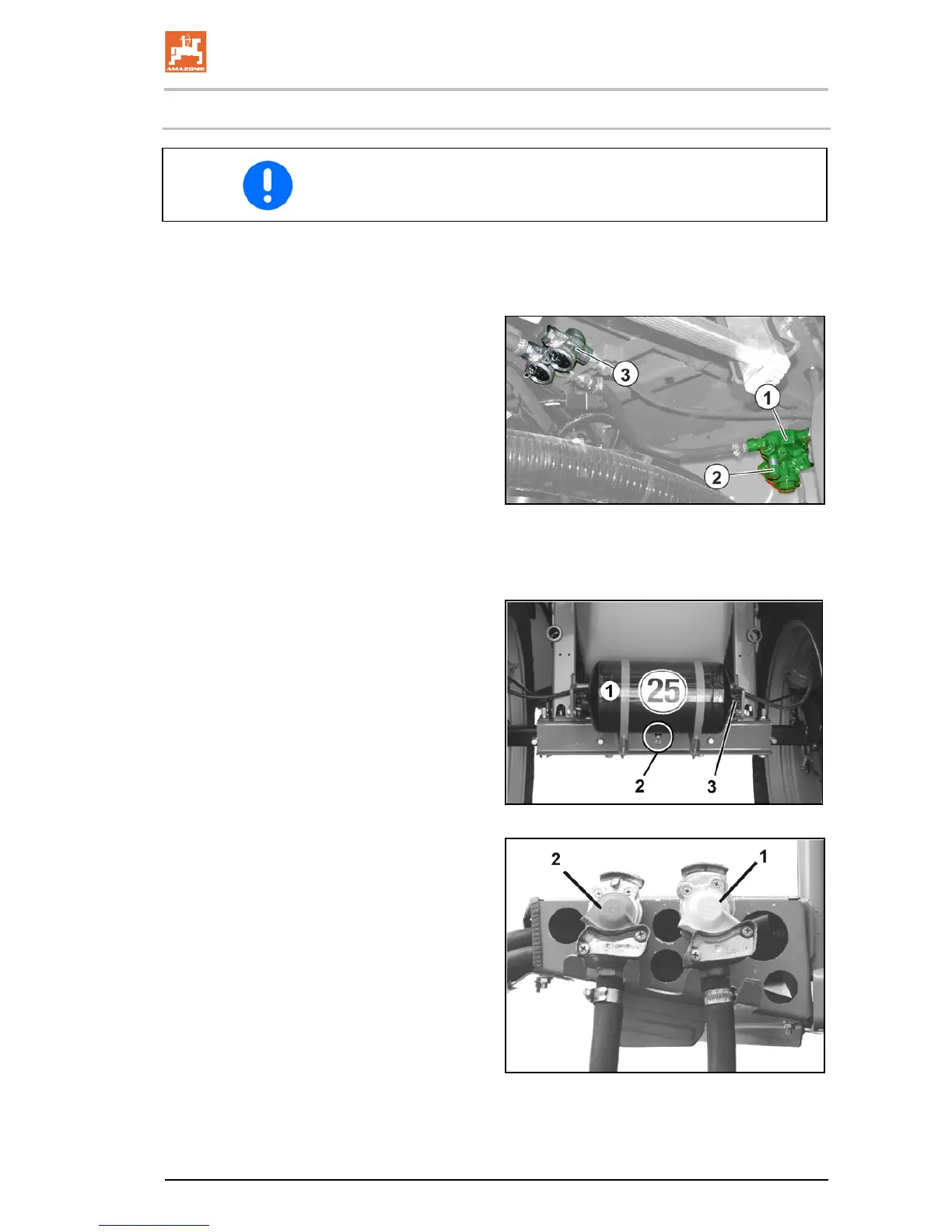

5.6 Pneumatic brake system
Observing the maintenance intervals is essential for proper function-
ing of the dual line service brake system.
The brake drums are fitted with self regulating brake levers that make
sure that the wear to the brake linings is compensated.
(1) Brake valve
(2) Release valve with actuation button
The actuation button
must be pushed in up to the stop to re-
lease the service brake system, e.g. to
manoeuvre the uncoupled trailed
sprayer.
ο must be pulled out up to the stop and
the trailed sprayer is braked again by
the supply pressure coming from the
air reservoir.
(3) Line filter
new
(1) Air reservoir
(2) Drainage valve for condensation water.
(3) Test connection
Dual-circuit pneumatic braking system
(1) Brake line coupling head (yellow)
(2) Supply line coupling head (red)
