Layout and function of the sprayer boom
UX01 Super CP
Plus BAG0157.3 03.18
105
6.5 Hydraulic tilt adjustment (optional)
The sprayer boom can be aligned parallel to the ground or the target
surface using the hydraulic tilt adjustment in event of unfavourable
terrain conditions, e.g., with tracks that have different depths or driv-
ing in a furrow on one side.
Adjustment using control terminal
Refer to control terminal instruction manual.
6.6 DistanceControl (optional)
The sprayer boom regulating device Dis-
tanceControl automatically keeps the sprayer
boom parallel at the desired distance from the
target surface.

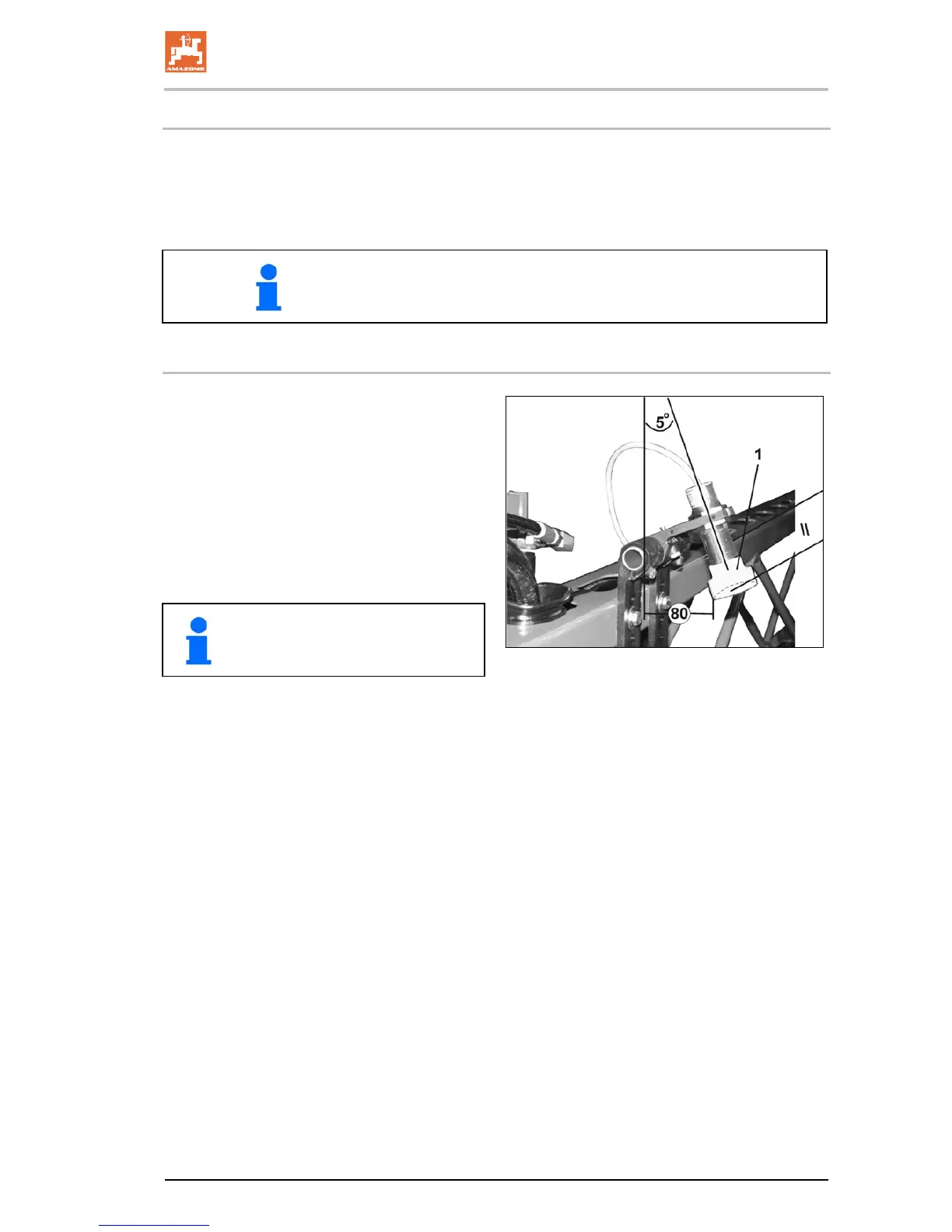

Ultrasonic sensors (1) measure the distance to
the ground or the crop.
When the sprayer boom is switched off at the
headlands, the sprayer boom is automatically
lifted by approx. 50 cm. When it is switched on,
the sprayer boom is lowered back to the calibrat-
ed height.
See operating manual for the ISOBUS
software.
Setting the ultrasound sensors:
See figure
