Layout and function of the basic implement
90
UX01 Super CP Plus BAG0157.3 03.18

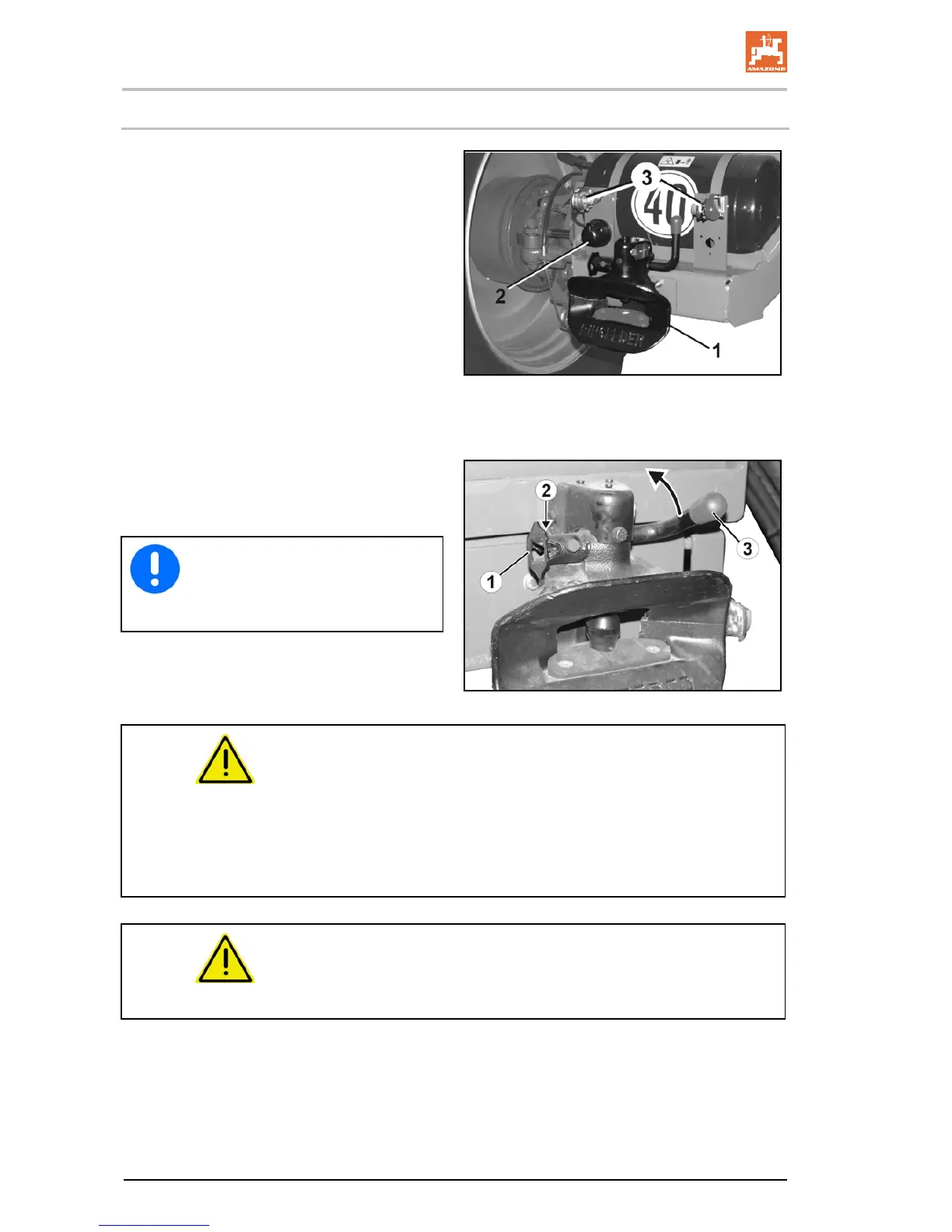

5.19 Towing device (optional)
The automatic drawbar is used to pull braked
trailers
• with a permissible total weight of 12000 kg
and pneumatic brake.
• with a permissible total weight of 8000 kg
and overrun brake.
• with a total weight that is lower than the
permissible total weight of the field sprayer.
• without drawbar load.
• with towing eye 40 DIN 74054.
(1) Drawbar
(2) Lighting connection
(3) Brake connection
To unlock the towing device, pull on the knob (1)
and turn until it engages in the upper notch (2).
Then swivel the lever (3) up until the pin is un-
locked.
The drawbar of the trailer must be
long enough to prevent collisions with
the boom when driving in curves.
WARNING
Risk of crushing when coupling the machine and standing be-
tween the machine and the trailer!
Instruct people to leave the danger area between the machine and
the trailer before you approach the trailer.
Coupling the trailer via the automatic drawbar is a one-man operation.
Helpers as guides are not necessary.
WARNING
When coupling and uncoupling trailers, observe the safety in-
structions in the section about coupling and uncoupling the im-
plement, page 145.
