Amazone UX 4201 Super User Manual

Cleaning, maintenance and repairs
230
UX01 Super CP Plus BAG0157.3 03.18

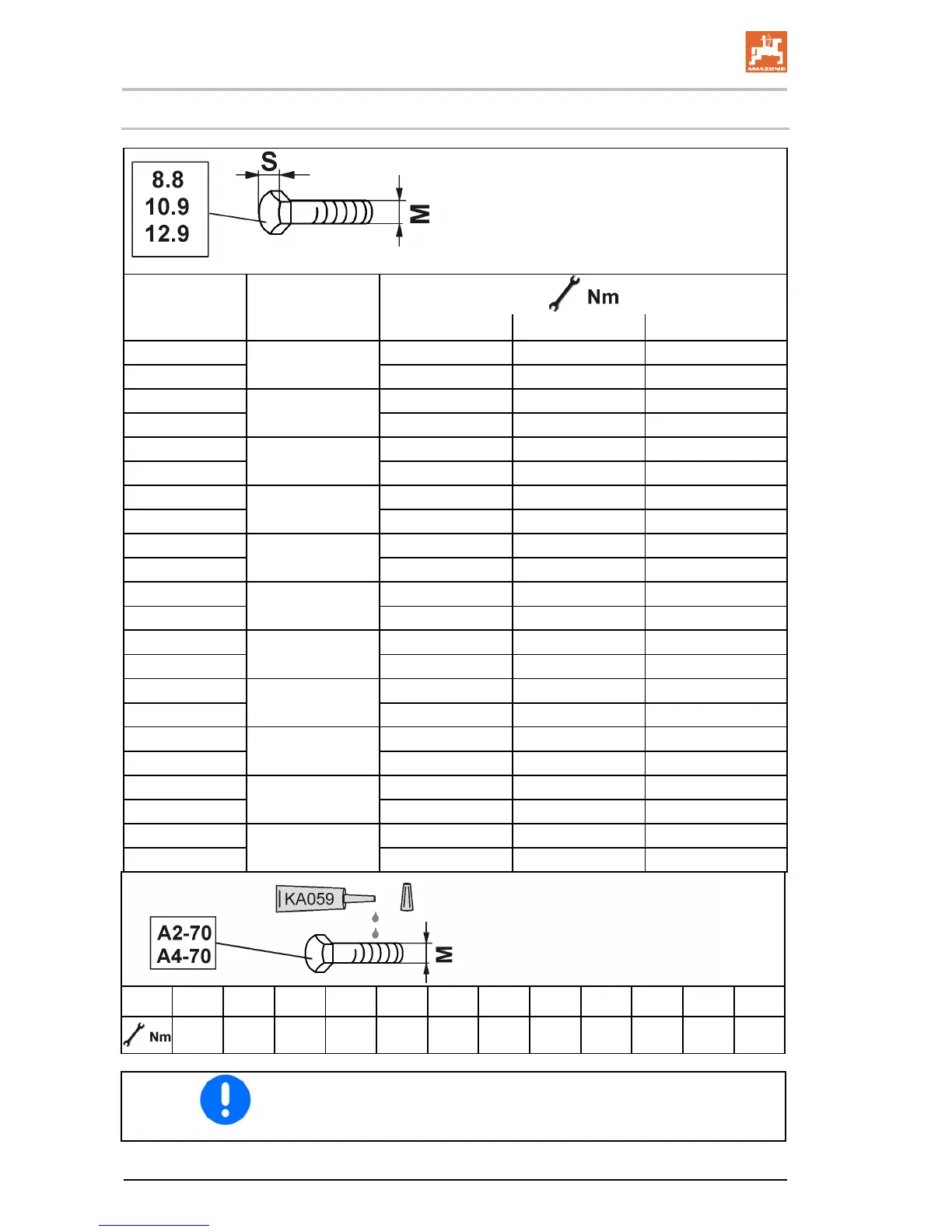

14.21 Bolt tightening torques
M
S
8.8
10.9
12.9
M 8
13
25 35 41
M 8x1 27 38 41
M 10
16 (17)
49 69 83
M 10x1 52 73 88
M 12
18 (19)
86 120 145
M 12x1.5 90 125 150
M 14
22
135 190 230
M 14x1,5 150 210 250
M 16
24
210 300 355
M 16x1,5 225 315 380
M 18
27
290 405 485
M 18x1,5 325 460 550
M 20
30
410 580 690
M 20x1,5 460 640 770
M 22
32
550 780 930
M 22x1,5 610 860 1050
M 24
36
710 1000 1200
M 24x2 780 1100 1300
M 27
41
1050 1500 1800
M 27x2 1150 1600 1950
M 30
46
1450 2000 2400
M 30x2 1600 2250 2700
M
M4 M5 M6 M8 M10 M12 M14 M16 M18 M20 M22 M24
2.4 4.9 8.4 20.6 40.7 70.5 112 174 242 342 470 589
Coated bolts have different tightening torques.
Observe the specific data for tightening torques in the maintenance
section.
