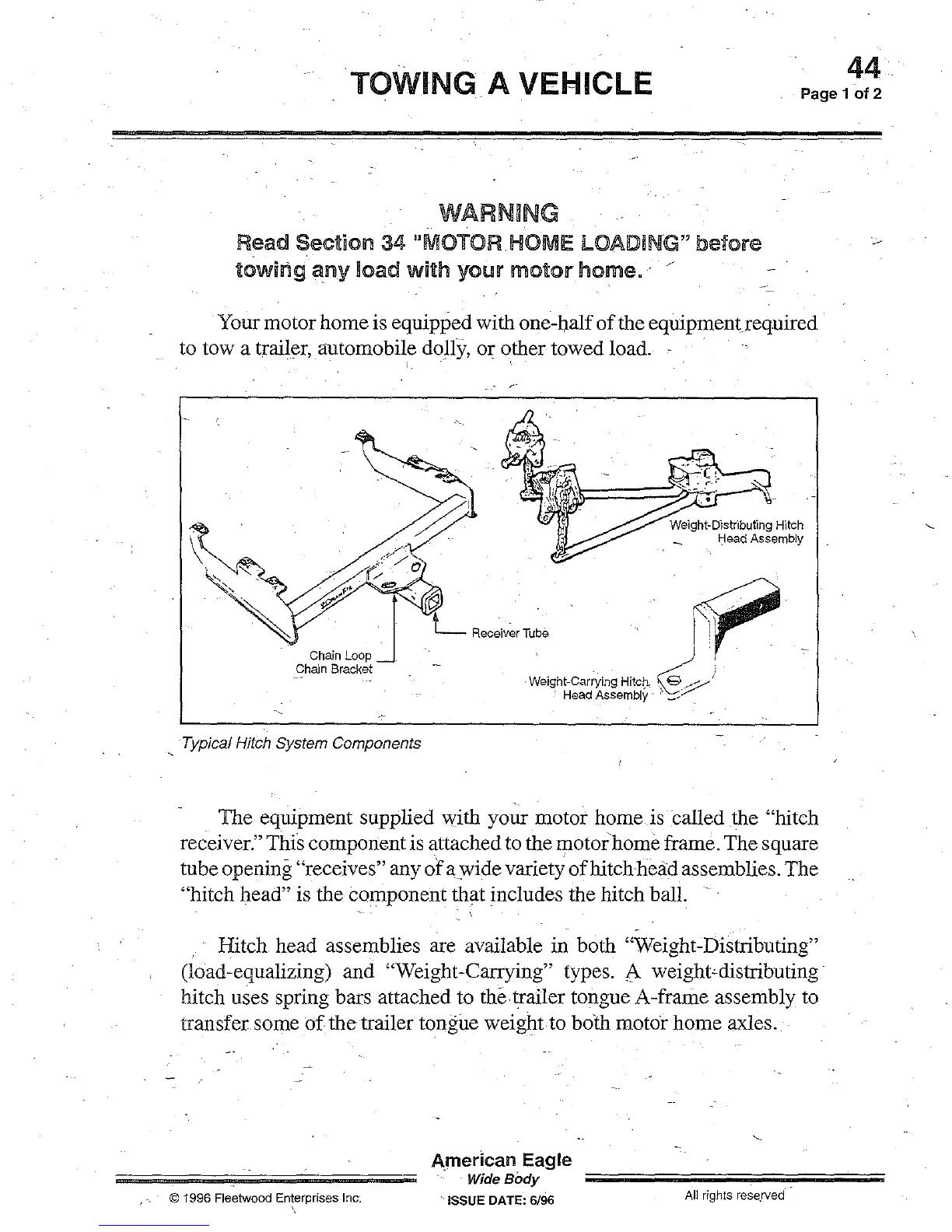

._--
44
TOWJNGA
VEHICLE
Page 1
of
2
WARNING
Read Section 34 "MOTOR HOME LOAD!I\fG" before
towing
any load
with
yOlll'
motor
home
..
Your motor home is equipped with one-half
of
the equipmentrequired .
to tow a trailer, automobile dolly, or other towed load.
Chain
Loop
Chain
Bracket
i·
, .
//1
//
Weight·Dlstributing
Hitch
Head
Assembly
~
~
L Receiver Tube
!'11r
.
Weight-Carrying Hitch
~.y':
Head
Assembly
~;::::-
Typical
Hitch System Components
The equipment supplied with your motor home
is
called the "hitch
receiver." This
component is attached to the motoihome frame. The square
tube opening
"receives" any
of
a.wide variety
of
hitch head assemblies. The
"hitch head" is the component that includes the hitch ball.
Hitch. head assemblies are available in both
"Weight-Distributing"
(load-equalizing) and "Weight-Carrying" types. A
weight~distributing'
hitch uses spring bars attached to the trailer tongue A-frame assembly to
transfer some
of
the
trailer tongue weight to both motor home axles.
© 1996
Fleetwood
Enterprises
Inc.
\
American
Eagle
..
Wide
Body
. ISSUE DATE: 6/96
~
All
rights
rese,rved
~
~
