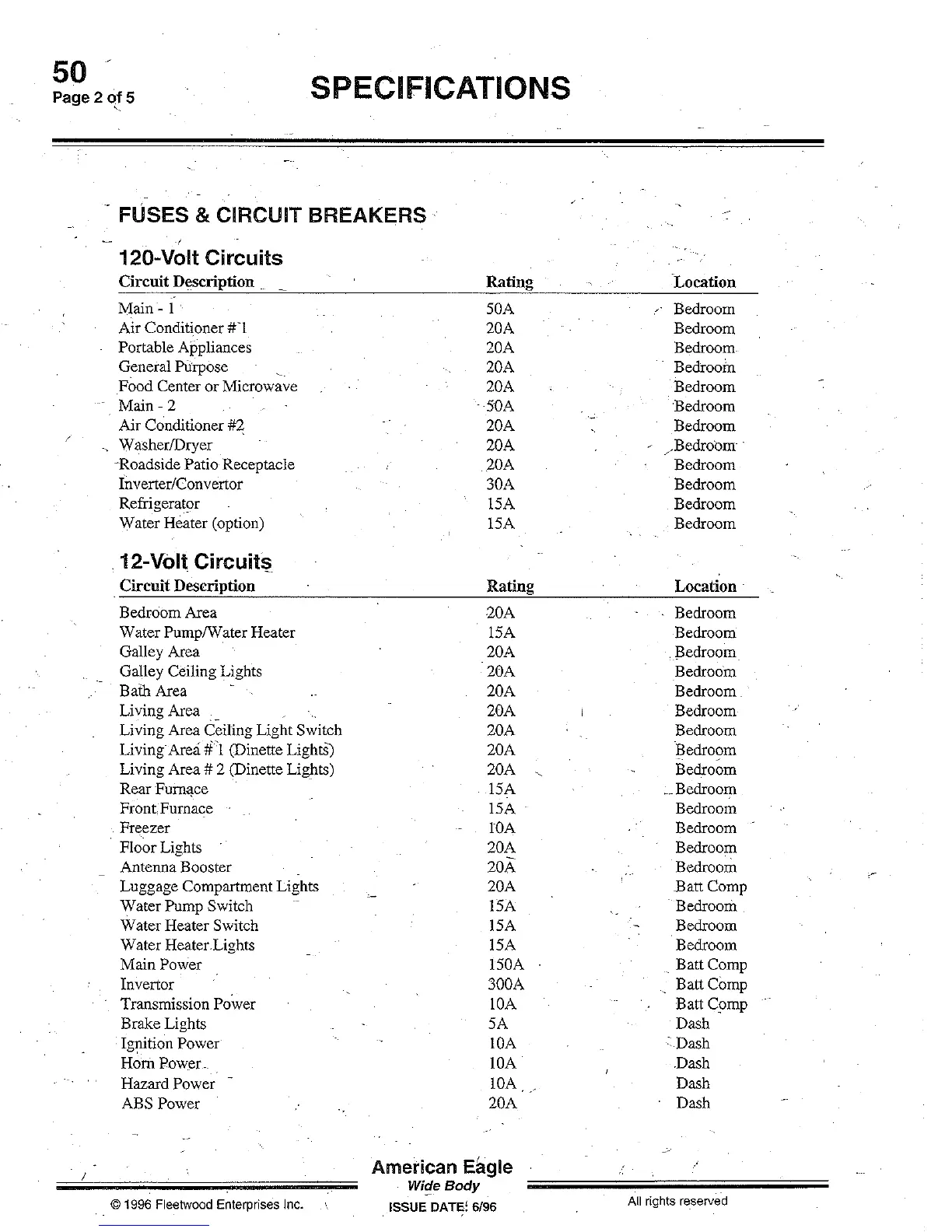

American Eagle 1997 - Fuses & Circuit Breakers

50
Page 2 of5
' ..
SPECIFICATIONS
FUSES & CIRCUIT BREAKERS ..
,
120-Volt
Circuits
Circuit Description . Rating
'Location
Main -
I 50A Bedroom
Air Conditioner #'1
20A Bedroom
Portable Appliances
20A
Bedroom
General Piirpose
20A Bedroom
Food Center or Microwave
20A Bedroom
Main - 2
.. 50A
'Bedroom
Air Conditioner #2
20A Bedroom
WasherlDryer
20A
.-
,Bedroom'
-Roadside Patio Receptacle
20A Bedroom
Inverter/Convertor
30A Bedroom
Refrigerat9f
15A Bedroom
Water Heater (option)
15A Bedroom
. 12-Volt Circuit!?
Circnit Description
Rating Location
Bedroom Area
20A Bedroom
Water PumplWater Heater
15A
Bedroom
Galley Area
20A . Bedroom
Galley Ceiling Lights
20A Bedroom
Bath Area
20A Bedroom
Living Area
.. .-
20A Bedroom
Living Area
Ceiling Light Switch
20A
Bedroom
Living
Area ih (Dinette Lights)
20A Bedroom
Living Area # 2 (Dinette Lights)
20A Bedroom
Rear Furn,!ce 15A .. ,Bedroom
Front Furnace 15A Bedroom
Freezer
lOA Bedroom
Floor Lights
20A Bedroom
Antenna Booster
20A Bedroom
Luggage Compartment Lights 20A Batt Comp
Water
Pump Switch 15A Bedroom
Water Heater
Switch 15A Bedroom
Water Heater.Lights
15A Bedroom
Main Power 150A
Batt Comp
Invertor
300A BattComp
Transmission Power lOA Batt Comp
Brake Lights 5A Dash
Ig~ition Power
lOA
'Dash
Hom Power,
lOA Dash
Hazard Power lOA Dash
ABS Power
20A Dash
/
American Eagle
WicJe Body
© 1996 Fleetwood Enterprises Inc.
ISSUE DATE: 6/96
All rights re_served
