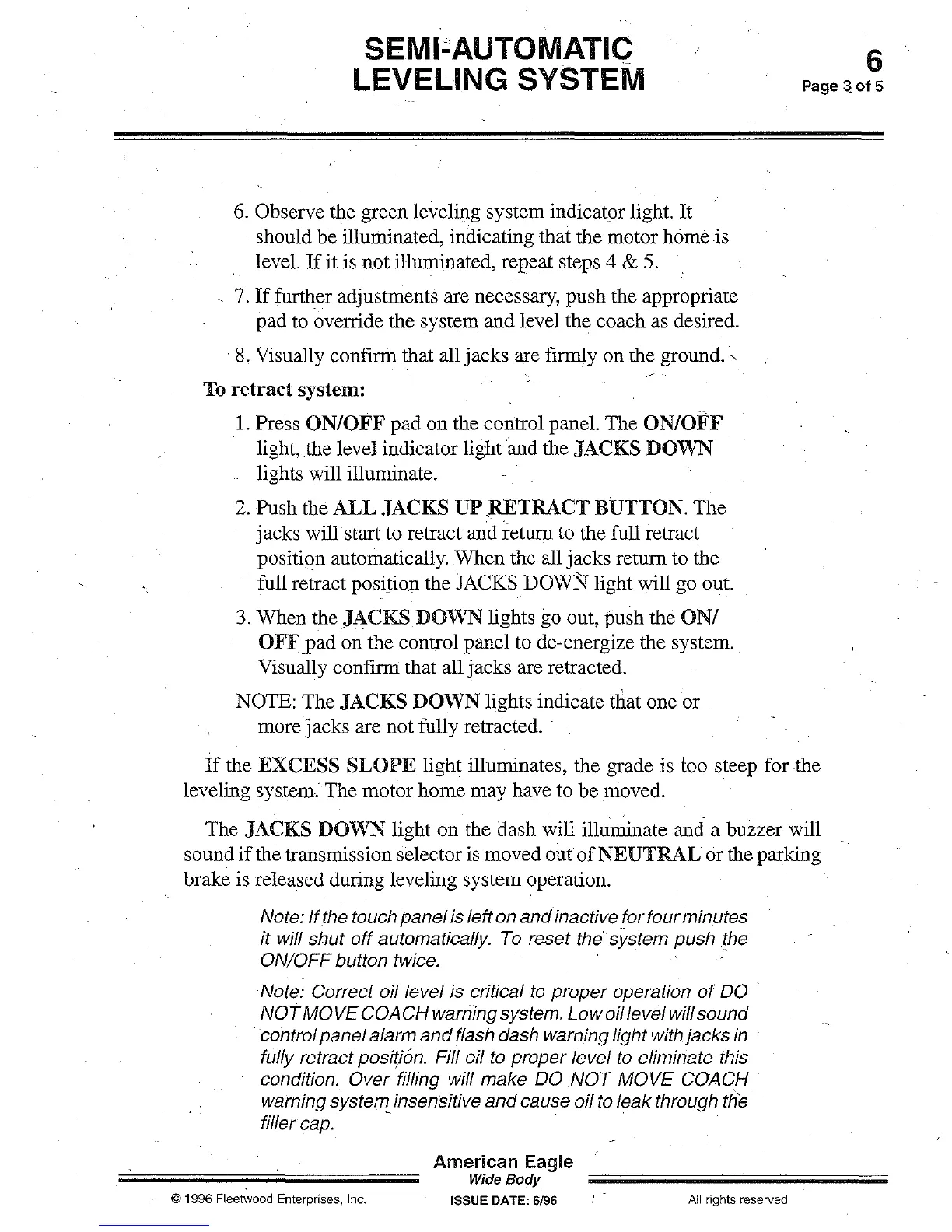

6. Observe the green leveling system indicator light.
It
should be illuminated, indicating that the motor home is
level.
If
it is not illuminated, repeat steps 4 & 5.
7.
If
further adjustments are necessary, push the appropriate
pad to override the system and level the coach as desired.
8.
Visually confi.rrll that all jacks are firmly on the ground.
"-
To
retract
system:
1.
Press
ON/OFF
pad on the control panel. The
ON/OFF
light, .the level indicator light and the
JACKS
DOWN
lights will illuminate.
2.
Push the
ALL
JACKS
UP
RETRACT
BUTTON. The
jacks will start to retract and return to the full retract
position automatically. When the. all jacks return to the
full retract positio:n the
JACKS.
DOwN
light will go out.
3.
When the
JACKS
DOWN
lights go out, push the
ON/
OFF. pad on the control panel to de-energize the system.
Visually confirm that all jacks are retracted.
NOTE: The
JACKS
DOWN
lights indicate that one or
more jacks are not fully retracted.
If
the
EXCESS
SLOPE
light illuminates, the grade is too steep for the
leveling system. The motor home may have to be moved.
The
JACKS
DOWN
light on the dash will illuminate and a buzzer will
sound
if
the transmission selector
is
moved out
of
NEUTRAL
or the parking
brake is released during leveling system operation.
Note:
If
the touch
panel
is left on
and
inactive
for
four minutes
it will shut
off
automatically. To reset the'system push the
ON/OFF button twice.
Note: Correct oil level is critical
to
proper operation
of
DO
NOT
MOVE
COACH
warning system.
Low
oil level will sound
control panel alarm
and
flash dash warning light with jacks in .
fully retract position. Fill oil
to
proper level
to
eliminate this
condition.
Over
filling will make
DO
NOT
MOVE
COACH
waming system insensitive
and
cause oil to leak through the
filler
cap. -
