16060-101 Rev. M
20
Alignment and Measurement

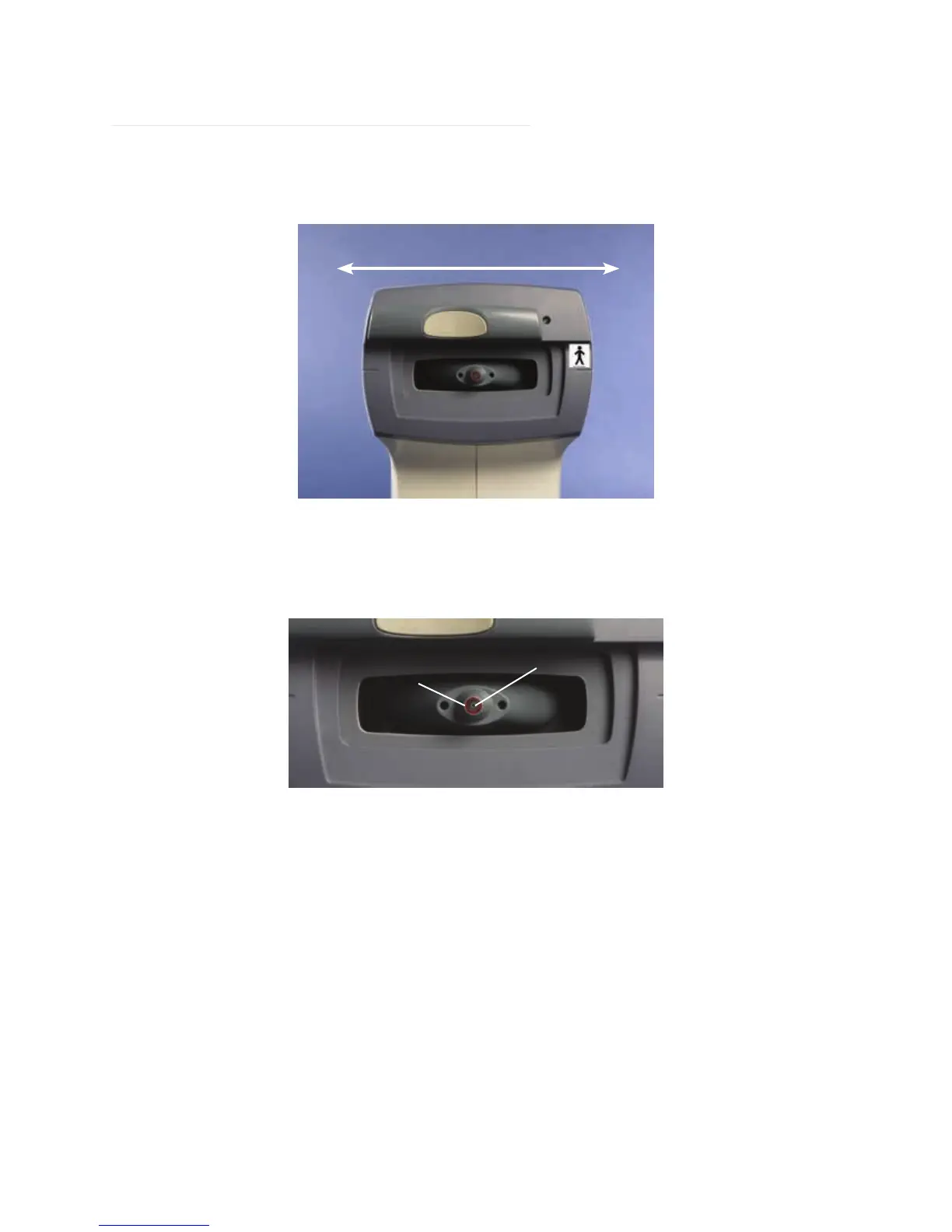

Slide headrest left or right
The Reichert 7CR features a left/right sliding forehead rest that enables the instrument to
automatically determine which eye is being measured. It must be positioned completely to one side
or to the other in order to take a measurement. Position the forehead rest to the desired position
before beginning the measurement process.
Illuminated
Nosepiece
Air Tube
inside the air tube, surrounded by a ring of red lights. In order to take a measurement, patients must
patient can see any of the red lights. If any red lights can be seen, the automatic alignment system will
