Forehead Rest Pad Replacement
The Reichert 7CR tonometer has a removable
Forehead Rest Pad, to allow for easier
replacement of the pad.
On the bottom part of the Forehead Rest Pad,
there is a small indent, which is to allow room
to grip the pad with your finger. Refer to Figure
CL-1.
1. Grip the Forehead Rest Pad with your
fingers at the Indent at the bottom of the pad.
Refer to Figure CL-2.
2. Gently remove the Forehead Rest Pad by
peeling it away from the Headrest. Refer to
Figure CL-3.
3. Install a new Forehead Rest Pad by pressing
it onto the grooves of the Headrest. Refer to
Figure CL-4.
Note: 

󰀨
Note: If you have the old style Headrest
Assembly and need to replace the
Headrest, please contact Reichert.
Indent

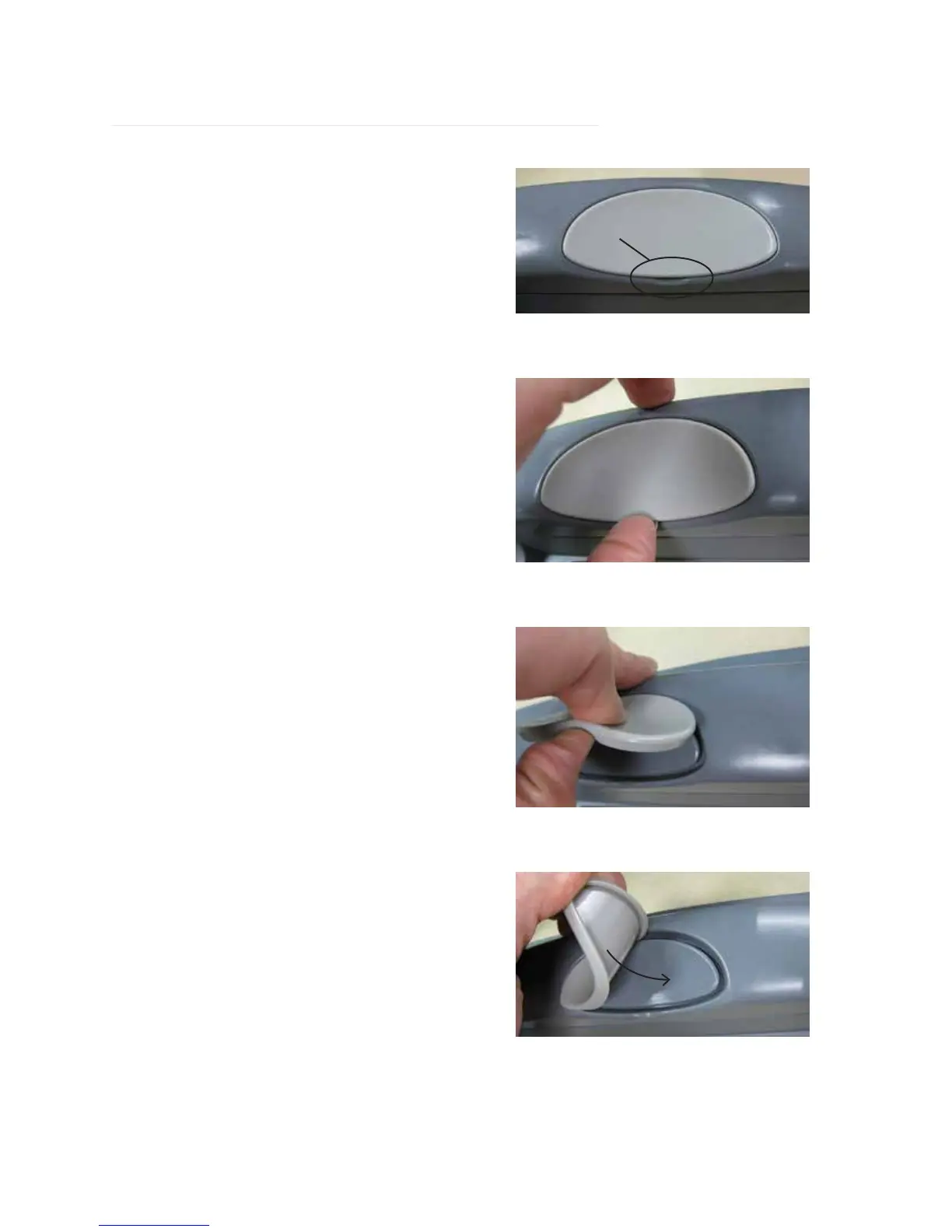

Figure CL-1. Forehead Rest Pad Indent
Figure CL-2. Grip Forehead Rest Pad
Figure CL-3. Remove Forehead Rest Pad
Figure CL-4. Install Forehead Rest Pad
