16060-101 Rev. M
10

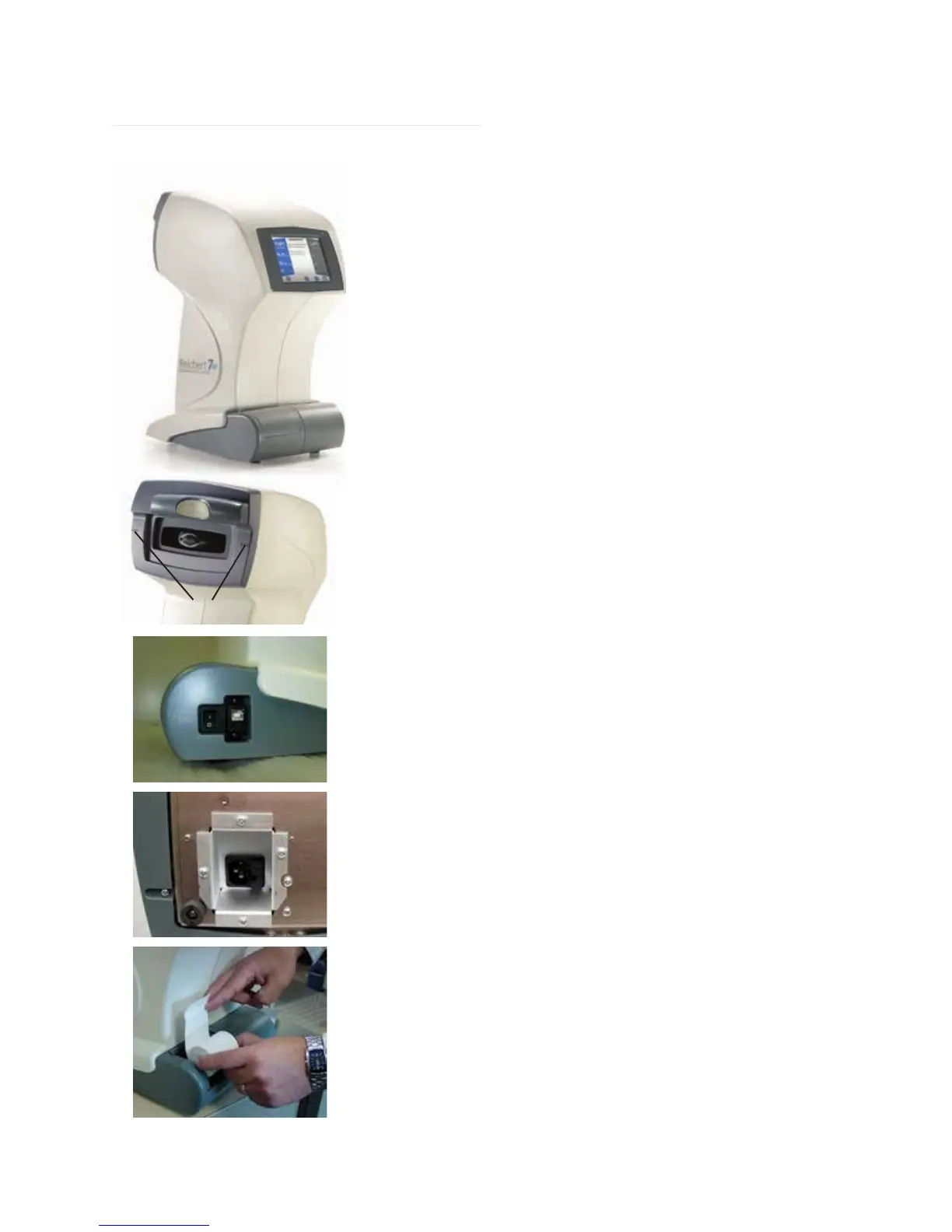

Parts Identification
1. Operator Display: Displays measurement data.
2. Printer Door:
3. Forehead Rest: Alignment mechanism that moves right or
left for correct patient positioning.
4. Nosepiece Objective: Air tube that emits “air puff.”
5. Canthus Alignment Marks (right and left side): Alignment
mark that indicates the vertical position of the center of the
patient’s eye.
6. ON/OFF Switch: Switch that controls input power to the
unit. “O” indicates OFF, and “ | ” indicates “ON.”
7. USB Port: Communication port that transfers data to a
computer.
Note:
Reichert 7CR at: http://www.reichert.com
8. Main Power Connector and Fuse Holder: Connection
point for input power and the fuses. Press the top tab and
bottom tab together on the fuse panel to remove the fuse
holder and fuses. It is located on the underside of the unit.
9. Printer: Thermal printer supplied with the unit.
Accessories
•
•
•
•
•
• Forehead Rest Pad
•
3
4
1
2
6
7
8
9
5
