Unpacking Instructions (continued)
8. Remove the white cardboard Accessories Box. (Please refer to Figure IS-03.)
Note: The Accessories Box includes a power cord, cable for the Phoroptor Head, Bluetooth
antenna for the Central Unit, near vision card and illuminator, face shields, dust covers for
the Phoroptor Head and Controller, and User’s Guide.
9. Remove the Controller (wrapped in plastic) from the box. (Please refer to Figure IS-04.)
10. Remove the plastic wrapping from the Controller.
11. Remove the Central Unit (packed in foam) from the box. (Please refer to Figure IS-05.)
Note: If any of the above accessories or parts are missing, immediately contact Reichert
,
so we
can ship the missing accessories or parts.
Instrument Setup (continued)

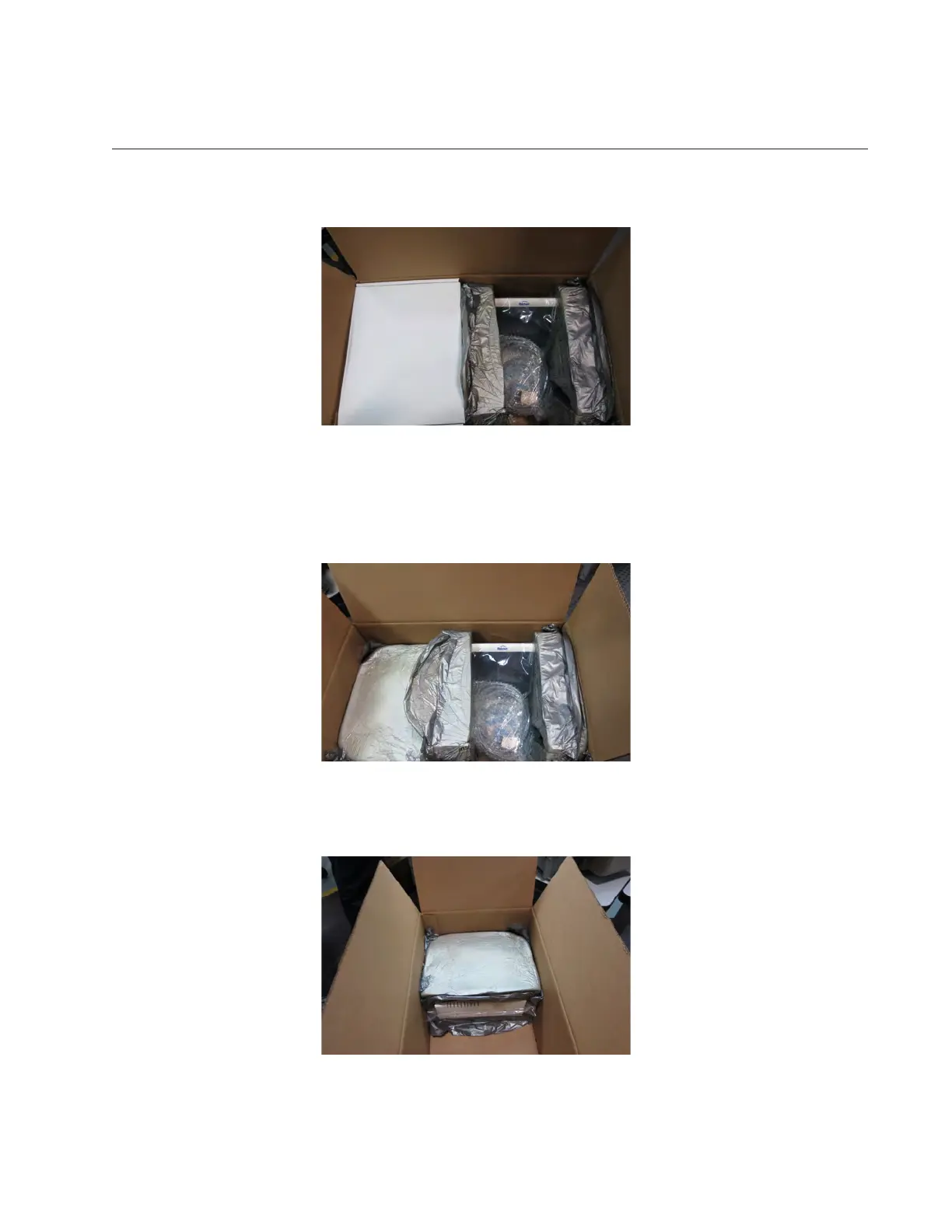

Figure IS-03, Packaging - Accessories Box
Controller
Accessories
Box
Figure IS-04, Packaging - Controller
Controller
Central
Unit
Figure IS-05, Packaging - Central Unit
Central
Unit
11
16241-101 Rev. D
To Next Page
