Setup
Connecting the Phoroptor VRx System Components
WARNING: APPLY RATED INPUT VOLTAGE TO THE UNIT AS INDICATED ON THE DATA PLATE TO PREVENT
DAMAGE TO THE INSTRUMENT AND/OR INJURY TO THE OPERATOR OR PATIENT.
WARNING: CAREFULLY ARRANGE THE CABLES FOR THE UNIT AND ACCESSORIES, SO THE CABLES DO
NOT PRESENT A TRIPPING HAZARD TO THE EXAMINER OR A DANGER TO THE PATIENT.
WARNING: POSITION THIS INSTRUMENT SO THE PLUG IS EASILY ACCESSIBLE.
WARNING: DO NOT PLUG IN THE UNIT UNTIL THE COMPUTER SYSTEM IS SETUP.

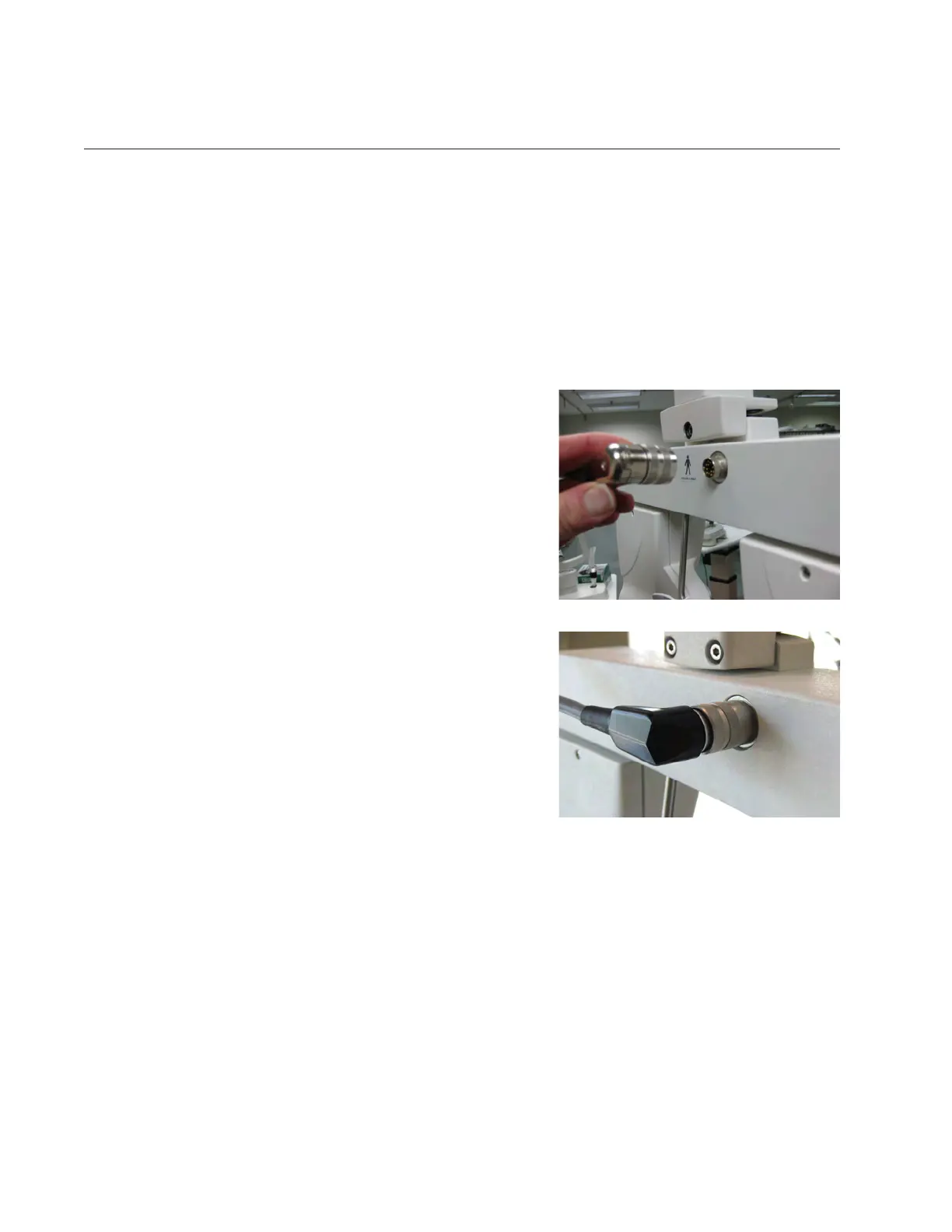

1. Connect the Phoroptor Cable (REF 559-275) to the
Phoroptor Head by aligning the cable to the Pins in
the Phoroptor Head and securely attaching the Cable.
(Please refer to the picture at the top right.)
2. Secure the metal Collar on the Phoroptor Cable by
turning it clockwise, until the cord is fully secured and
properly seated to the back of the Phoroptor Head.
(Please refer to the picture at the bottom right.)
3. Connect the Phoroptor head to the Central Unit by
attaching the Phoroptor Cable (REF 559-275) to the
Phoroptor port in the Central Unit.
(Please refer to Figure IS-07.)
4. Connect the Controller to the Central Unit by attaching
the built-in cable to the Controller port in the Central Unit.
(Please refer to Figure IS-07.)
5. Connect the Projector to the Central Unit by attaching
the cable or pairing a Bluetooth adapter to the projector
port in the Central Unit. (Please refer to Figure IS-07.)
6. Connect a computer to the Central Unit by attaching the
cable or pairing a Bluetooth adapter to the EMR port in
the Central Unit. (Please refer to Figure IS-07.)
7. Connect Lensmeters or Auto Refractors to the Central
Unit by attaching the cable or pairing a Bluetooth adapter
to the Instrument 1 or Instrument 2 port in the Central
Unit, as needed.
Note: The instrument includes connection cables for the Phoroptor Head and the Controller.
You must purchase separately all connection cables or Bluetooth adapters for connecting
Lensmeters, Auto Refractors, projectors, and computers.
8. Plug in the power cord to an outlet providing appropriate voltage.
9. Connect the Phoroptor VRx to another Phoroptor VRx through the Transfer port to send data
from one device to another.
You can make the connection using the appropriate serial cable or
Bluetooth adapter.
