1. Illuminated Bubble Level
2. Convergence Lever
3. Threaded Pin for Near Vision Rod
4. Leveling Thumb Screw
5. Forehead Rest Adjustment Knob
6. Touch Screen Display
7. USB Port
8. Power Indicator Light
9. Control Knob
10. Phoroptor Connection Port
11. Instrument 1 Connection Port for connecting
auxiliary equipment
12. Projector Connection Port
13. EMR Port for connecting to a computer
14. Wireless Antenna
15. Transfer Port
16. Power Indicator Light
17. Printer Connection Port
18. Instrument 2 Connection Port for connecting
auxiliary equipment
19. Controller Connection Port
20. Target Device Corneal Vertex Distance
21. Lens Apertures
22. Forehead Rest
23. Height Adjustment Knob
24. Mid Position Height Marking
25. Power Indicator Light
Parts Identification (continued)

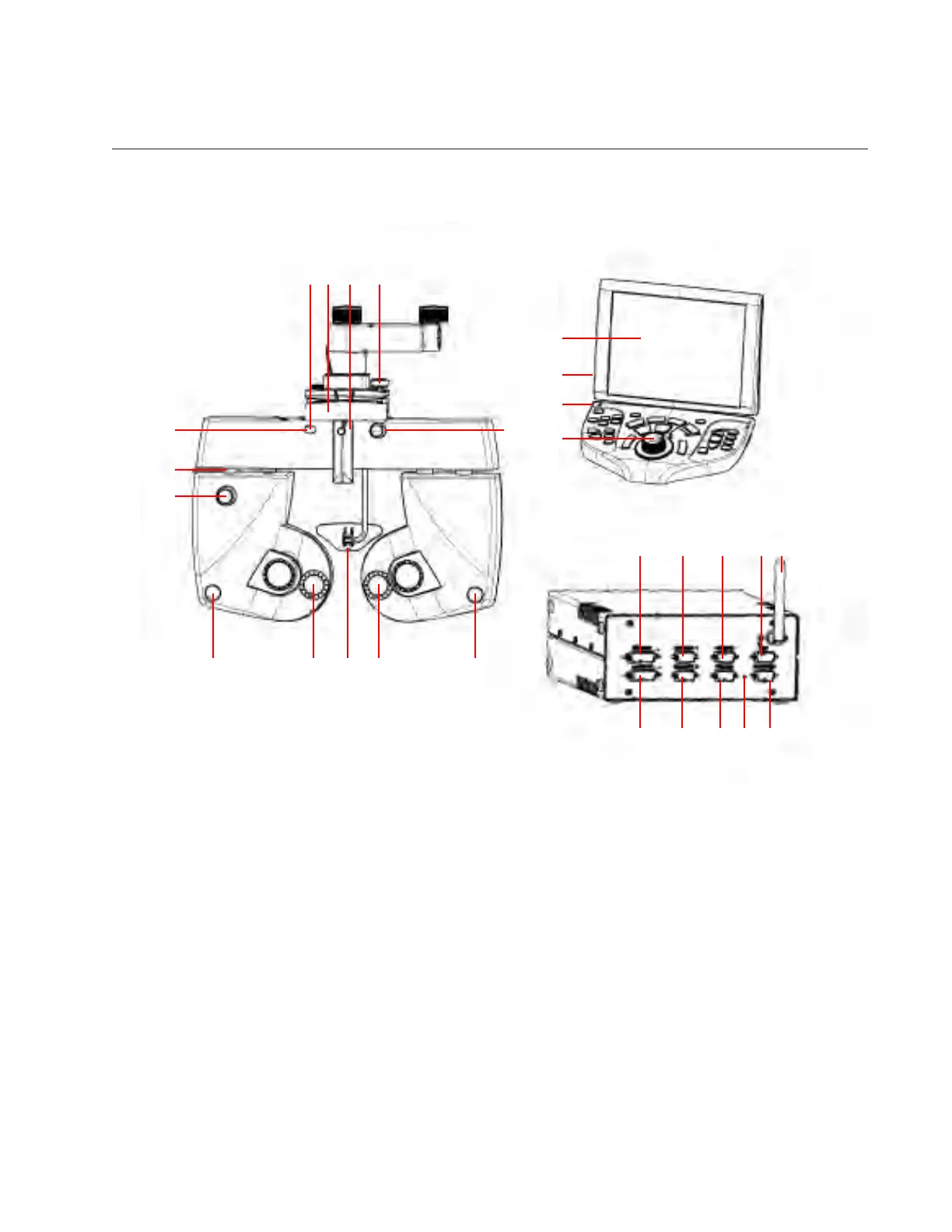

Figure IS-06, Parts Identication
7
24
25 5
21 3 4
2020
23
8
9
6
Instrument Setup (continued)
Phoroptor Head
Central Unit
Controller
22 2121
19
10
18
11
17
12
16 15
1314
13
16241-101 Rev. D
