Ametek VDS 200Q Series User Manual

AMETEK CTS VDS 200Q Series
Manual for Operation V 1.3.1 13 / 36
3.2.1.
ISO 7637
3.2.1.1.

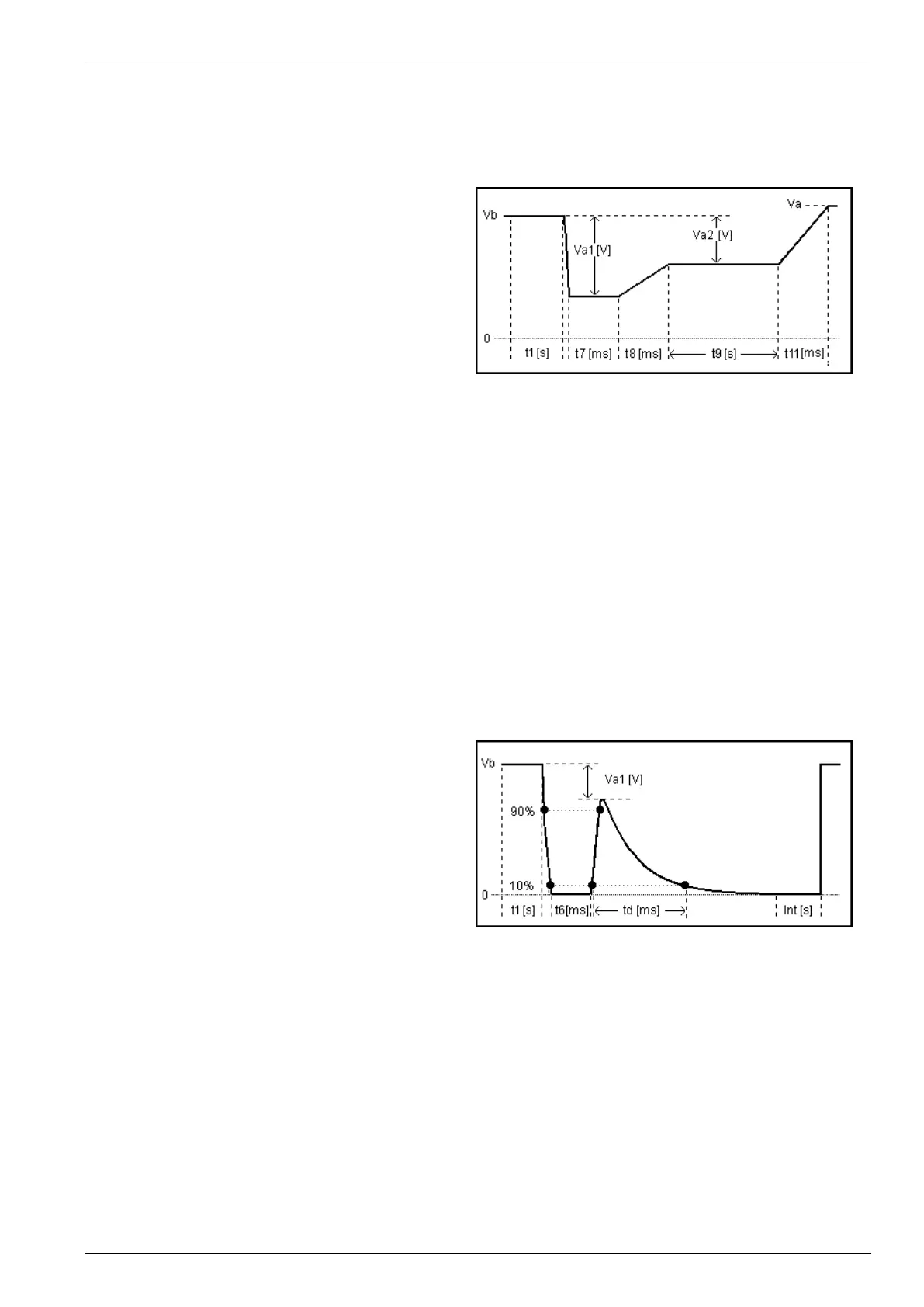

Pulse 4 voltage drop
This pulse simulates supply voltage reduction caused by energizing the starter-motor circuits of internal
combustion engines, excluding spikes associated with starting.
tf [Vb-Va1] < 5ms
Limits depends VDS voltage range
Input restrictions
0.0 V <= Vb + Va1 <= 30.0V (60.0V)
0.0 V <= Vb + Va2 <= 30.0V (60.0V)
Parameters:
Vb
0.0V
-
30.0V (60.0V)
Va1
- 30.0V (- 60.0V)
-
30.0V (+ 60.0V)
Va2
- 30.0V (- 60.0V)
-
30.0V (+ 60.0V)
t1
0.1s
-
99.9s
t7
5ms
-
999ms
t8
5ms
-
999ms
t9
0.1s
-
99.9s
t11
5ms
-
999ms
Va
0.0V
-
30.0V (+ 60.0V)
I
1A
-
(Imax)
tri
Auto / Manual
3.2.1.2.
Pulse 2b
This pulse simulates transients from DC motors acting as generators after ignition is switched off.
tr, tf ( 10/90%) =1ms  50%
Limits depends VDS voltage range
Input restrictions
Va1  0.0V
0.0 V  Vb + Va1  30.0V (60.0V)
Parameters:
Vb
0.0V
-
30.0V (60.0V)
Va1
- 30.0V (- 60.0V)
-
0.0V
t1
0.1s
-
99.9s
t6
1ms
-
999ms
td
5ms
-
9999ms
int
0.1s
-
99.9s
n
1
-
30,000 / endl.
tri
Auto / Manual
I
1A
-
(Imax)
