AMETEK CTS VDS 200Q Series
Manual for Operation V 1.3.1 35 / 36
8.1.1.1.
Connectors
General
Live parts are on the plugging side touch protected in the unmated condition as
per:
IEC, EN 60529, DIN VDE 0470, part 1
IEC, EN 61010-2-031, VDE 0411, part 2-031
For additional connectors please download the catalogue from Multi Contact: www.multi-contact.com

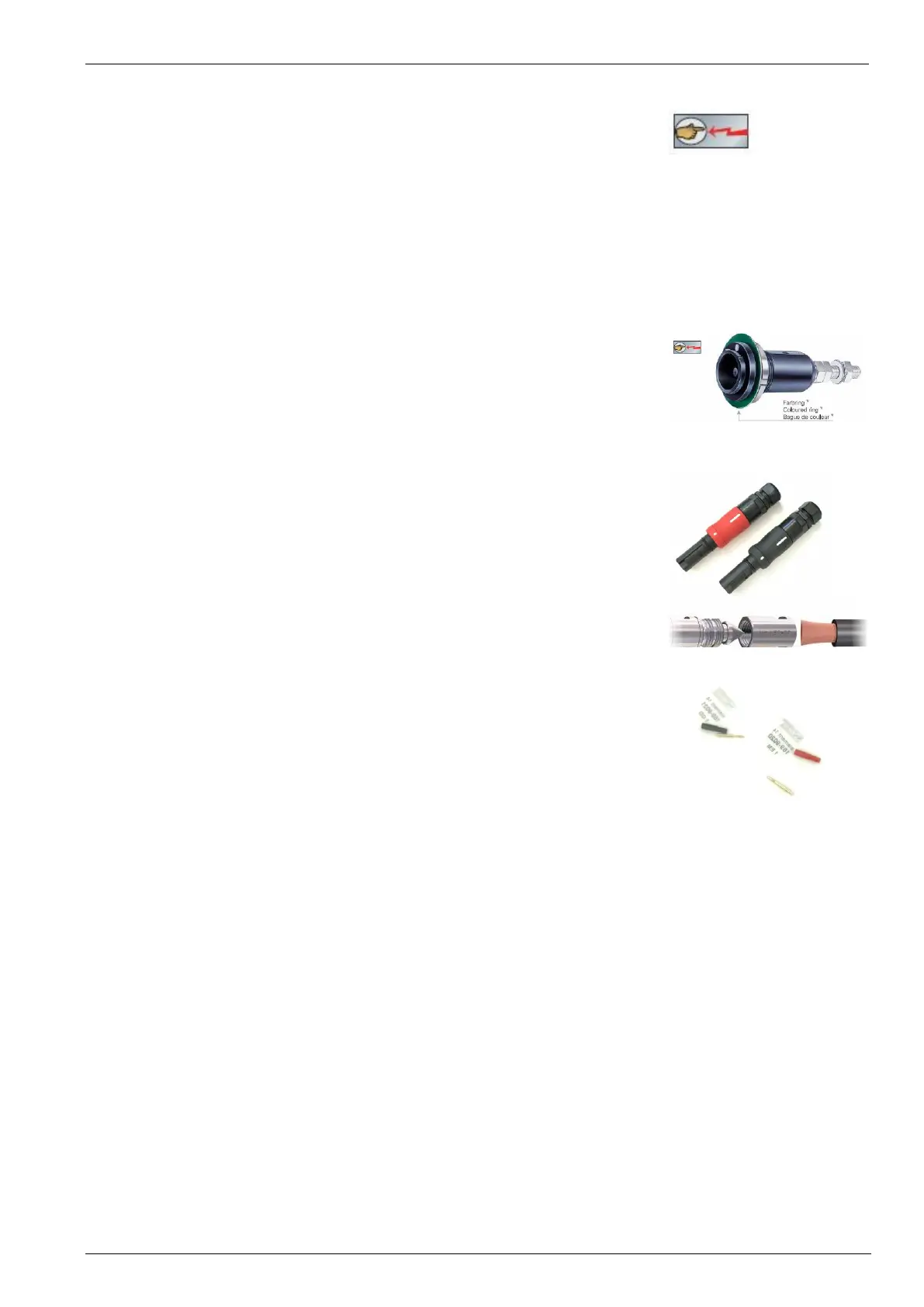

8.1.2.
Connectors VDS 200Qxx.2
Panel receptable
Plug ID/S10BV-C... with bayonet locking and threaded stud
Multi Contact code Description
ID/S10BV… Receptacle 10 mm 250 A C1 coded (Red)
ID/S10BV… Receptacle 10 mm 250 A C4 coded (Black)
DUT Connection Provided
Sockets with bayonet locking and AxiClamp termination for flexible
cables class 5 and class 6 as per IEC 60228. Touch protected in
unplugged condition (IEC, DIN EN 60529. With AxiClamp, the
reusable screw termination for cables.
Multi Contact code Description
KBT10BV-AX/M25/50-70… Coupler 10 mm 250 A red, C1 coded, positive
KBT10BV-AX/M25/50-70… Coupler 10 mm 250 A red, C4 coded, negative
Sense Connection Provided
2mm banana set, red and black
