Ametek VDS 200Q Series User Manual

AMETEK CTS VDS 200Q Series
Manual for Operation V 1.3.1 15 / 36

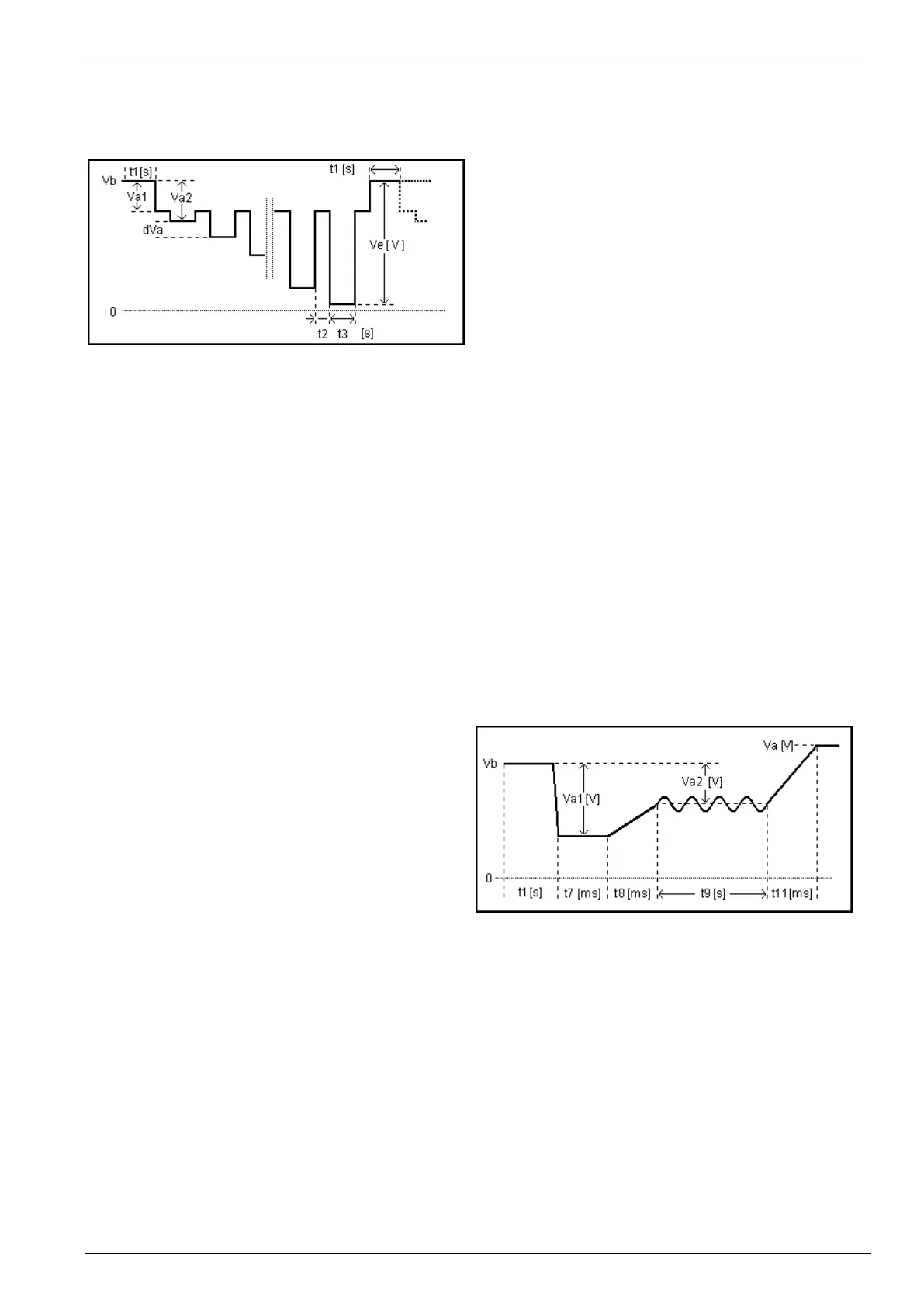

3.2.2.3.
Supply voltage profile
This test is to determine the reset behavior of the device under Test at different voltage drops. This test is
applicable to equipment with reset function.
Parameters:
Vb
0.0V
-
30.0V (60.0V)
Va1
- 30.0V (- 60.0V)
-
30.0V (60.0V)
Va2
- 29.9V (- 59.9V)
-
30.0V (60.0V)
Ve
- 30.0V (- 60.0V)
-
30.0V (60.0V)
dVa
- 30.0V (- 60.0V)
-
30.0V (60.0V)
t1
0.1s
-
99.9s
t2
0.1s
-
99.9s
t3
0.1s
-
99.9s
n
1
-
30,000 / endl.
tri
Auto / Manual
I
1A
-
(Imax)
3.2.2.4.
Pulse ’Starting profile’
This test simulates a motor startup including a possible ripple.
tr, tf =  10ms
Ripple = 2Hz
Limits depends VDS voltage range
Input restrictions
0.0 V  Vb + Va1  30.0V (60.0V)
0.0 V  Vb + Va2  30.0V (60.0V)
Parameters:
Vb
0.0V
-
30.0V (60.0V)
Va1
- 30.0V (- 60.0V)
-
30.0V (60.0V)
Va2
- 30.0V (- 60.0V)
-
30.0V (60.0V)
t1
0.1s
-
999ms
t7
5ms
-
999ms
t8
5ms
-
999ms
t9
0.5s
-
99.5s
t11
5ms
-
999ms
n
1
-
30,000 / endl.
tri
Auto / Manual
I
1A
-
(Imax)
