3.2.3.
Functions
3.2.3.1.

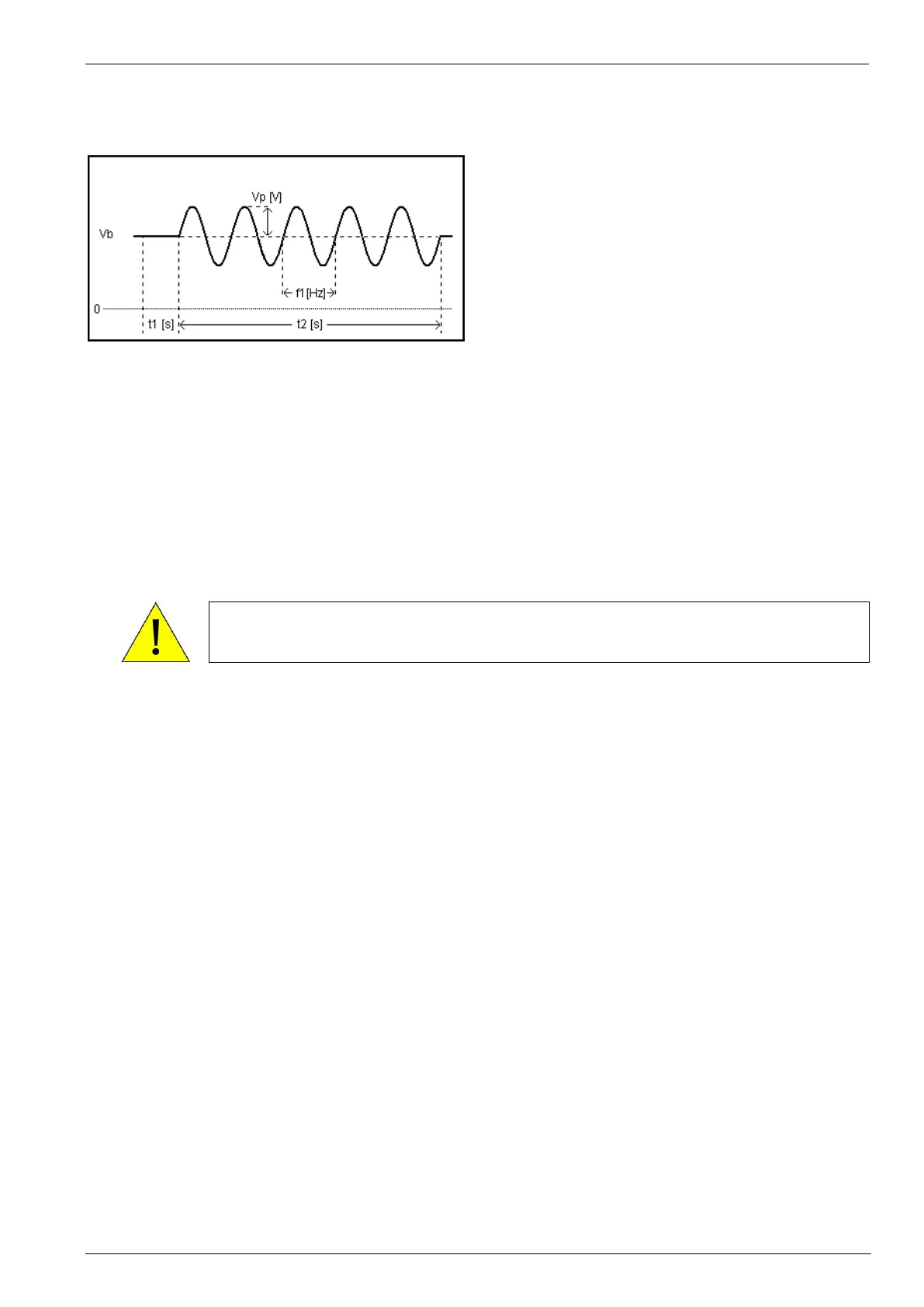

Sine wave
Limitations
Vb + Vp <= 30.0V (60.0V)
Vb - Vp = 0.0V
Parameters:
Vb
0.0V
-
30.0V (60.0V)
Vp
0.1V
-
30V
1)
t1
0.1s
-
99.9s
f1
0.001kHz
-
250.00kHz
f< 100Hz  1.2Hz
t2
1.0s
-
999.9s
n
1
-
30’000 / endl.
I
1.0A
-
(Imax)
Be sure to select the appropriate bandwidth in the Service menu appropriate for the
necessary test frequency.
