Manual for Operation V 1.3.1 18 / 36
3.2.3.2.

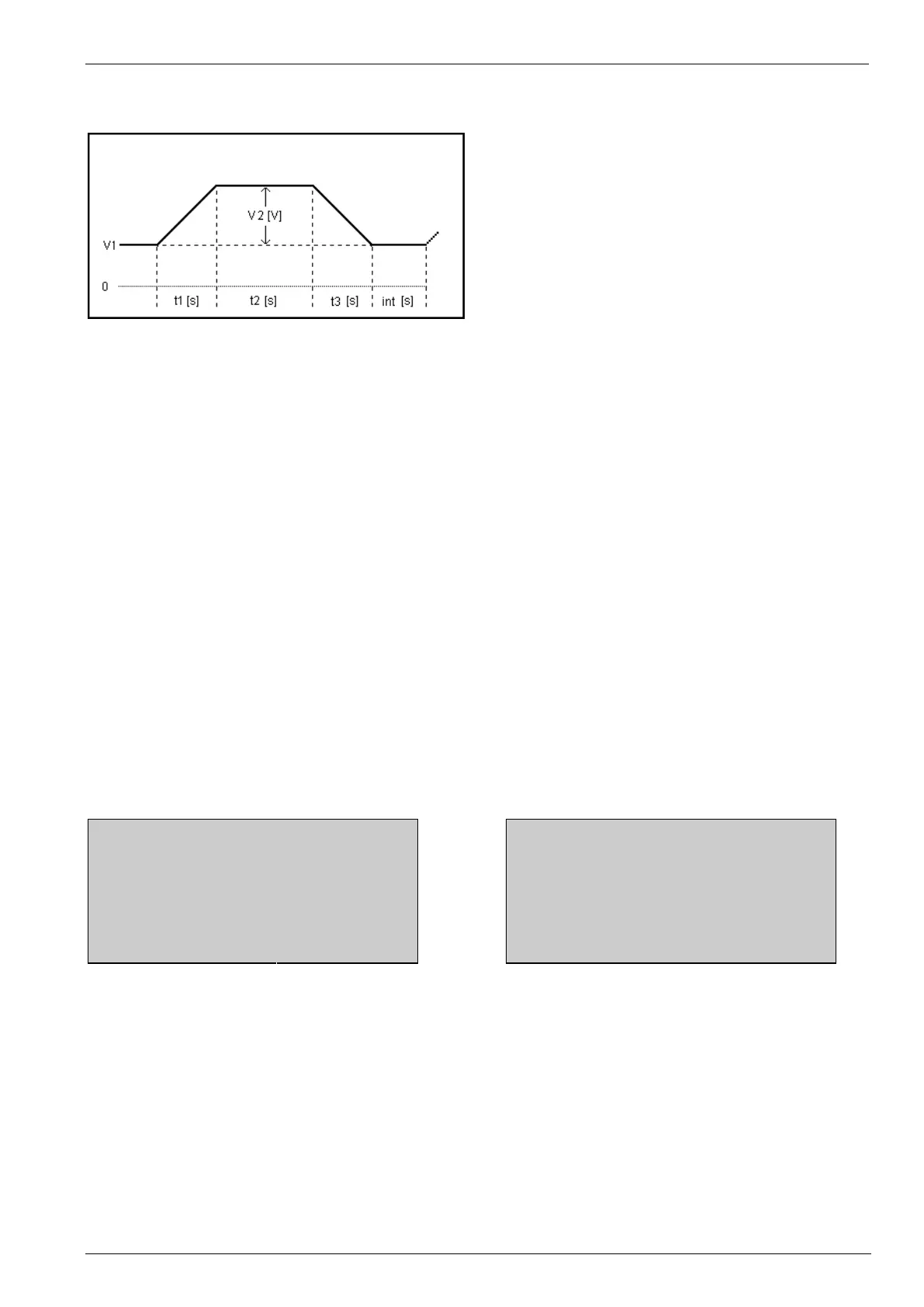

Jump Start
Limitations
V1 + V2 <= 30.0V (60.0V)
V1 + V2 = 0.0V
Parameters:
V1
0.0V
-
30.0V (60.0V)
V2
- 30.0V (- 60.0V)
-
30.0V (60.0V)
t1
0.01s
-
999.99s
t2
0.01s
-
999.99s
t3
0.01s
-
999.99s
int
0.1s
-
99.9s
n
1
-
30,000 / endl.
tri
Auto / Manual
I
1A
-
(Imax)
3.2.3.3.
VDS Externally via the analog input
The power amplifier can be driven by an external control voltage (-10 to 10V), e.g. from an external waveform
generator.
For this purpose the operator must select VDS Extern by pressing the related function key. The Extern
mode is displayed and the unit can only be operated via the coaxial BNC input ANALOG IN at the rear part.
Parameters:
Input voltage at BNC input :-10...10V dc
Extern
Extern
I = 100A
Voltage Current
13.5 V 14.5 A
I = 100 A
Start Change
Stop
F1
F2
F3
F4
F5
F6
F7
F1
F2
F3
F4
F5
F6
F7
Note: The measured values are for indication only. Low current values are indicated with the value “LOW”.
