Ametek VDS 200Q Series User Manual

AMETEK CTS VDS 200Q Series
Manual for Operation V 1.3.1 16 / 36
3.2.2.5.

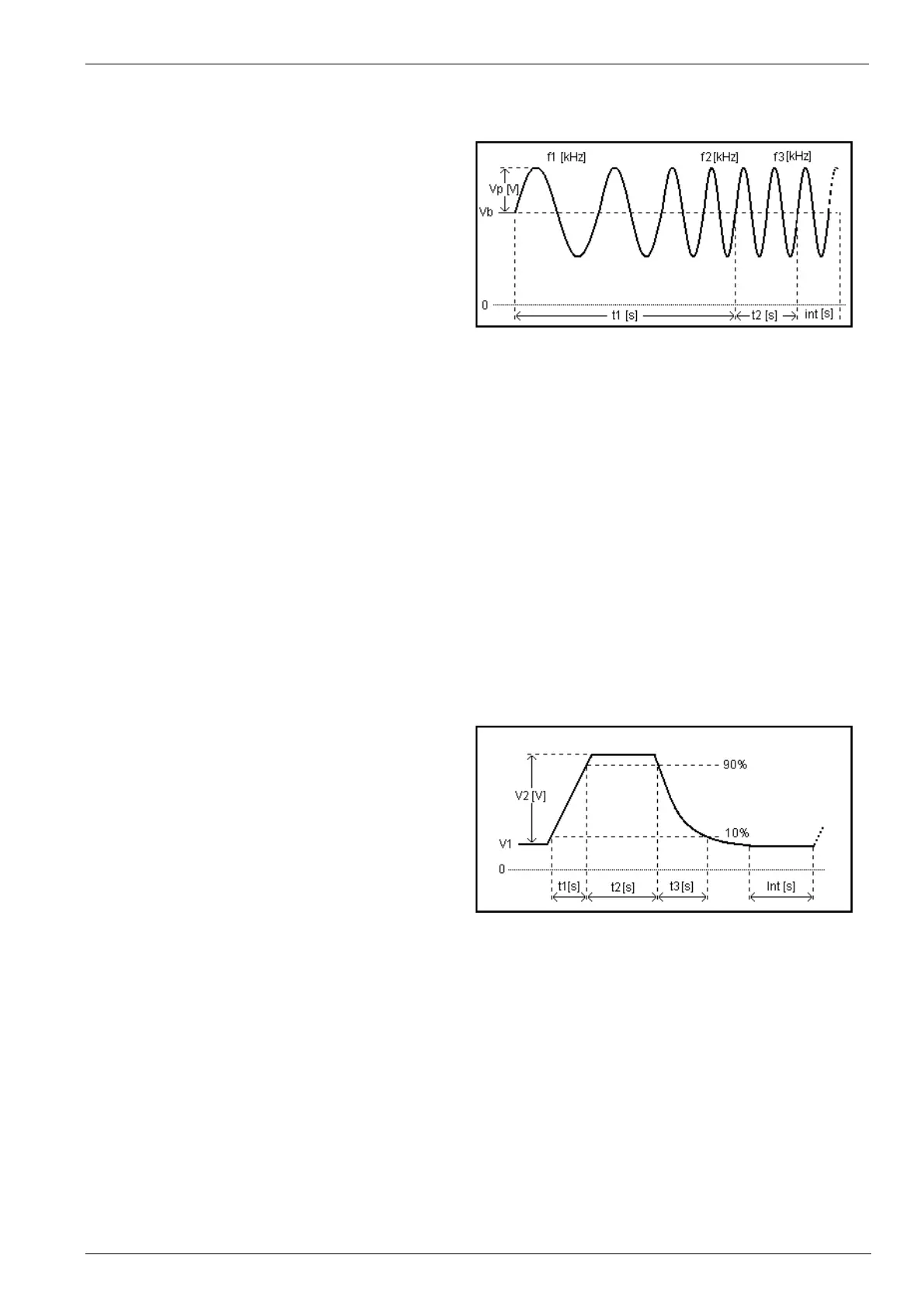

Sinus Sweep
This test simulates a residual a.c. on the dc supply
During Int f3 is applied.
Limitations
Vb + Vp <= 30.0V (60.0V )
Vb - Vp = 0.0V
Parameters:
Vb
0.0V
-
30.0V (60.0V)
Vp
0.0V
-
0.1 - 30.0V
1)
f1
0.001Hz
-
150.000kHz
2)
f2
0.001Hz
-
150.000kHz
2)
f3
0.001Hz
-
150.000kHz
2)
t1
0.1s
-
999.9s
t2
0.1s
-
999.9s
int
0s
-
999s
n
1
-
30,000 / endl.
tri
Auto / Manual
I
1A
-
(Imax)
1) VDS 200Qnn.1 models: 250kHz; VDS 200Q10, 180kHz
2) VDS 200Q10: 0.1 - 60V
3.2.2.6.
Overvoltage Vmax
This test simulates a high energy load dump pulse.
Limits depends VDS voltage range
Input restrictions
0.0 V  V1 + V2  30.0V (60.0V)
Parameters:
V1
0.0V
-
30.0V (60.0V)
V2
0.0V
-
30.0V (60.0V)
t1
0.01s
-
999.99 s
t2
0.01s
-
999.99 s
t3
0.01s
-
999.99 s
int
0.1s
-
99.9s
n
1
-
30,000 / endl.
tri
Auto / Manual
I
1A
-
(Imax)
