2.
Operating Functions
2.1.

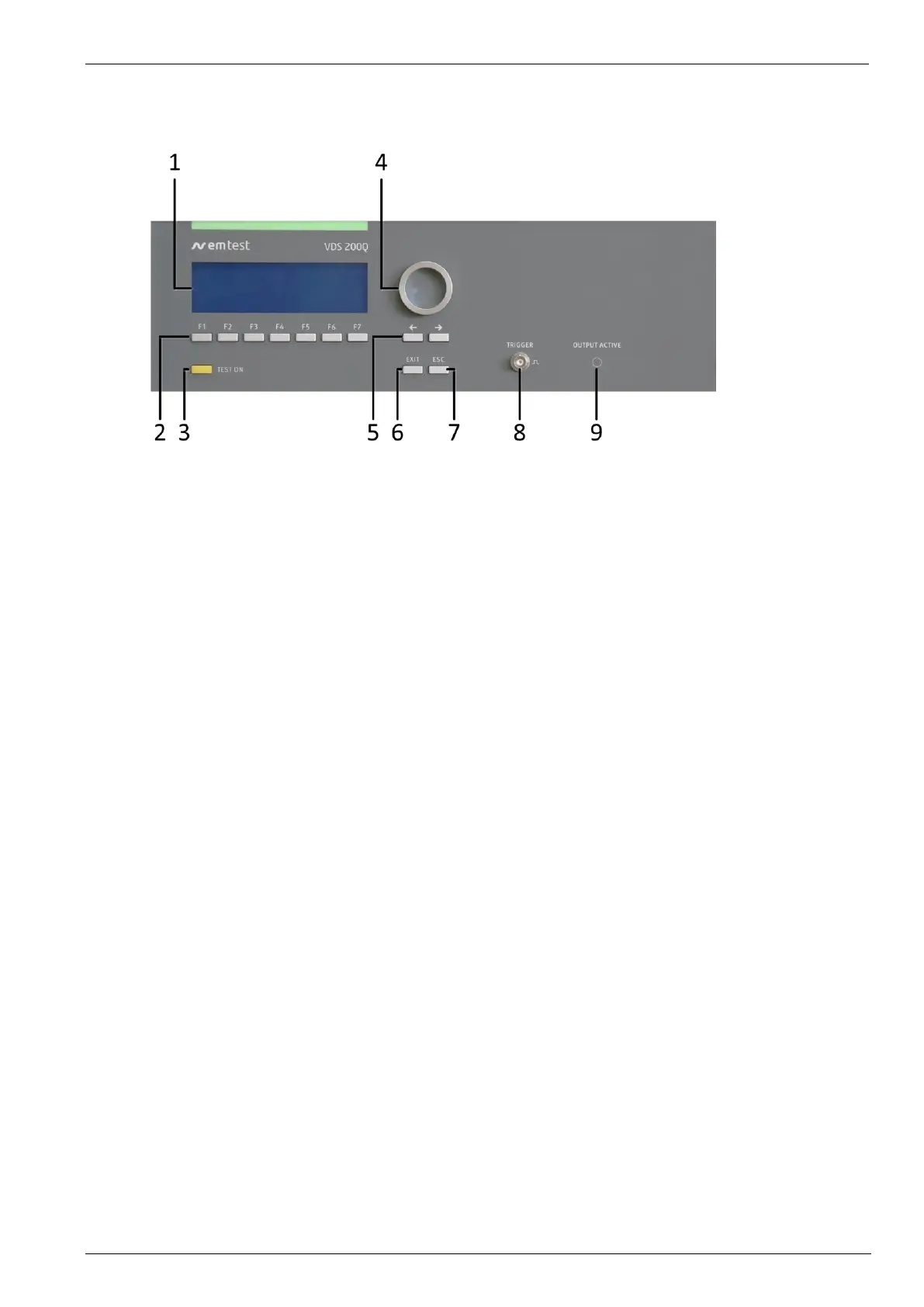

Front view
1 Display
2 Function keys "F1..F7"
3 "TEST ON"
4 Knob (Inc/Dec)
5 Cursor keys "" and "→"
6 EXIT
7 ESC
8 BNC CRO Trigger ( for oscilloscope)
9 OUTPUT ACTIVE LED
1 Display
All functions and parameters are displayed (8 lines with max. 40 characters).
2 Function keys "F1 .. F7"
Parameters and functions, displayed in the lowest line, can be selected with the related function key.
3 Test On
By pressing the key "TEST ON" the test procedure is initiated with the preselected parameters. The yellow
button is illuminated and indicates the Test ON status. After “Test OFF” or when no test is started, the output
voltage and the current will be set to zero.
4 Knob (Inc / Dec)
The knob increments or decrements test parameters with a numeric value or selects from a list of parameters.
5 Cursor keys
Parameters and functions can be changed on-line. The selection of these parameters is realized with the cursor
moving to the left or to the right.
6 Exit
Pressing the "EXIT" function will return to the previous menu. This is only possible if no test routine is running.
7 ESC
When pressing the ESC button the user moves back one page in the menu.
8 BNC CRO Trigger
At the BNC connector CRO TRIGGER a signal is available to trigger an oscilloscope.
9 OUTPUT ACTIVE LED
Output to the DUT or other generators.
