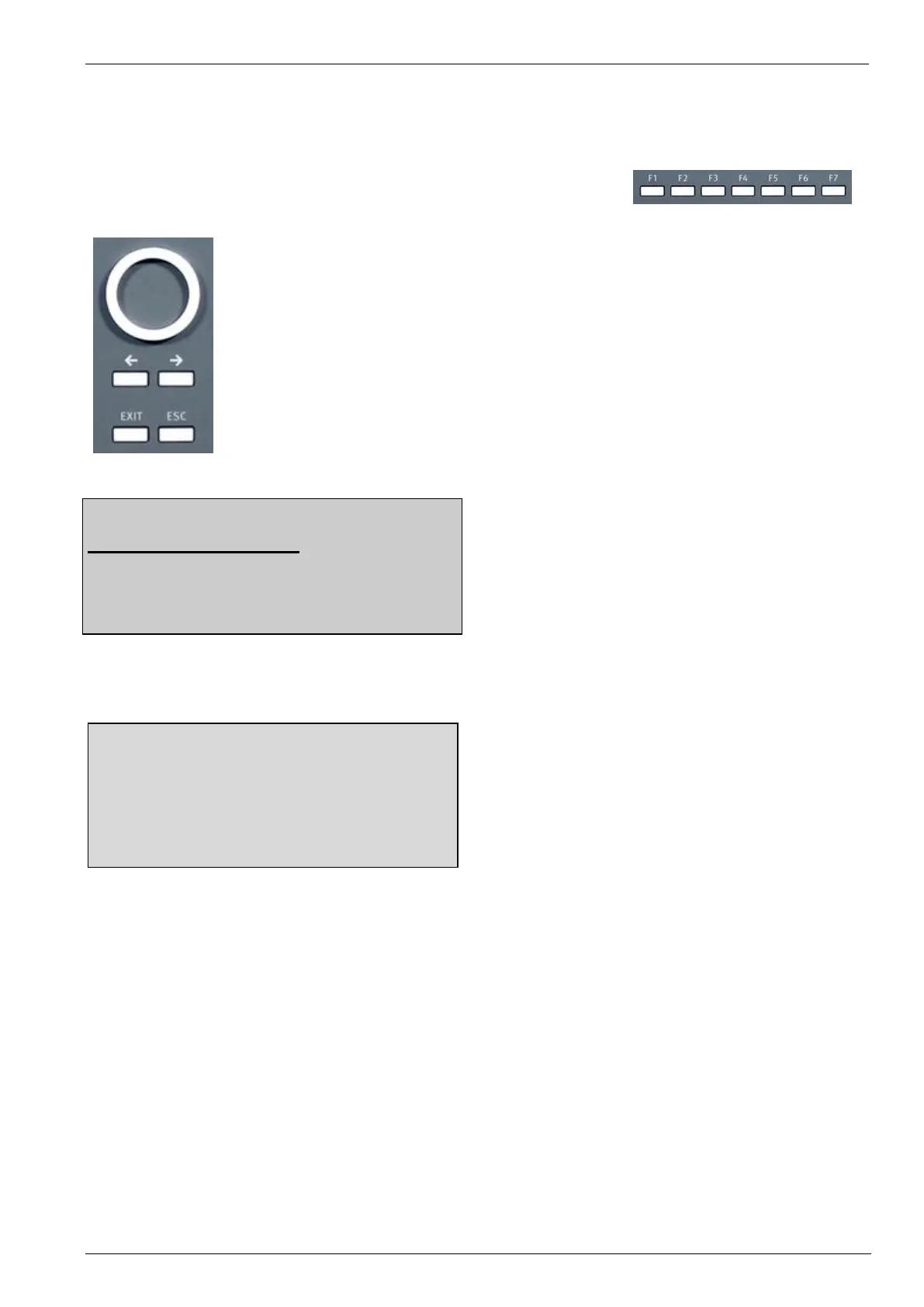

The simulator VDS 200Q is operated by an easy menu control system.
Seven function keys are available to select parameters and functions. All
functions are indicated on the display; max. 8 lines and 40 characters.
The selected parameter is blinking and can be changed by turning the knob (incr./decr.).
➔ : The digit to be changed can be selected with the cursor (➔ ).
- Set values are directly indicated on the screen.
- Status on the bottom lines shows the desired status after pressing the function key.
ESC : ESC will take you back to the previous level in the menu and set the displayed
values. The latest settings are stored automatically and will be recalled when the
menu is selected again.
EXIT : The firmware will reset to the main screen.
AMETEK CTS
VDS 200Q100.2
Voltage Drop Simulator
V 1.00.00
Int. V1.00.00
The serial number and the version number SWN are
used for traceability reasons. These numbers are listed
in the factory test reports and calibration certificates.
These numbers also are listed within the test reports
generated by the iso.control software
Start-up display example VDS 200Q200.2
F1 Source Mode
A mode that allows the user to set immediate voltage for quick tests with a DUT.
F2 Wave Simulator
In this mode, the internal signal generator is used to generate arbitrary waveforms as required in different
standards.
The operator can use the generator in this mode as a,
- DC power supply source,
- powerful power arbitrary wave generator with integrated test routines
- or simply as a battery simulator
The amplifier can be remote controlled by any external arbitrary generator. External generators shall be
connected at the rear part of the equipment. Any waveform can be generated up to the upper bandwidth of the
unit.
F6 Source Settings
Set-up, self-test, source settings and addresses of AMETEK CTS can be selected and displayed.
