AMETEK CTS VDS 200Q Series
Manual for Operation V 1.3.1 19 / 36
3.2.3.4.

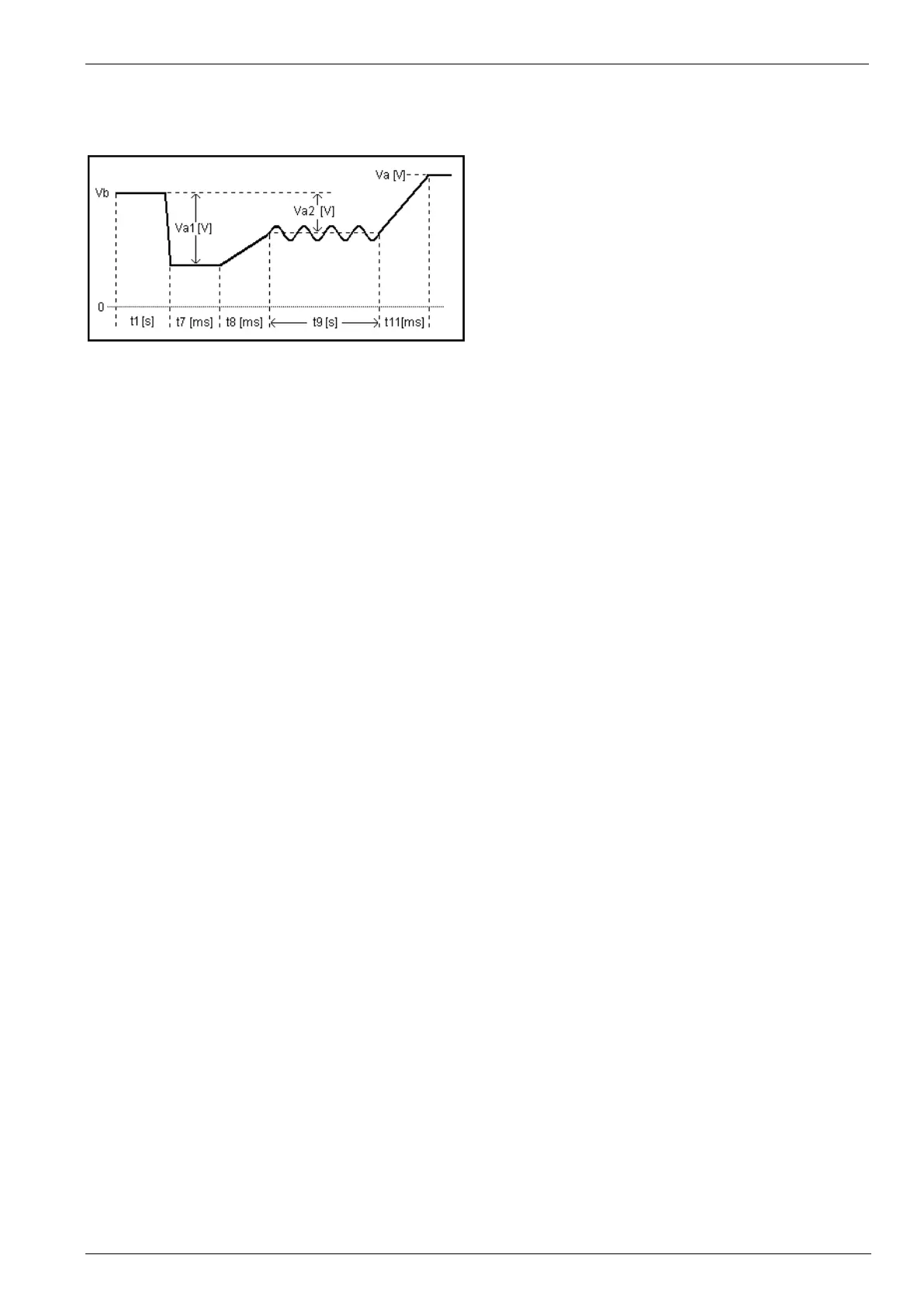

Pulse 4 ( GM 9105 P)
In addition to the ISO pulse 4 a 5Hz ripple of 1Vp-p is superimposed during t9 to Va.
tr, tf =  10ms
Input restrictions
0.0 V  Vb + Va1  30.0V (60.0V)
0.0 V  Vb + Va2  30.0V (60.0V)
Parameters:
Vb
0.0V
-
30.0V (60.0V)
Va1
- 30.0V (- 60.0V)
-
30.0V (60.0V)
Va2
- 30.0V (- 60.0V)
-
30.0V (60.0V)
t1
0.1s
-
99.9s
t7
5ms
-
999ms
t8
5ms
-
999ms
t9
0.4s
-
99.8s
t11
5ms
-
999ms
tri
Auto / Manual
I
1A
-
(Imax)
