Ametek VDS 200Q Series User Manual

AMETEK CTS VDS 200Q Series
Manual for Operation V 1.3.1 14 / 36
3.2.2.
ISO 16750-2 WD 03/2000-2
3.2.2.1.

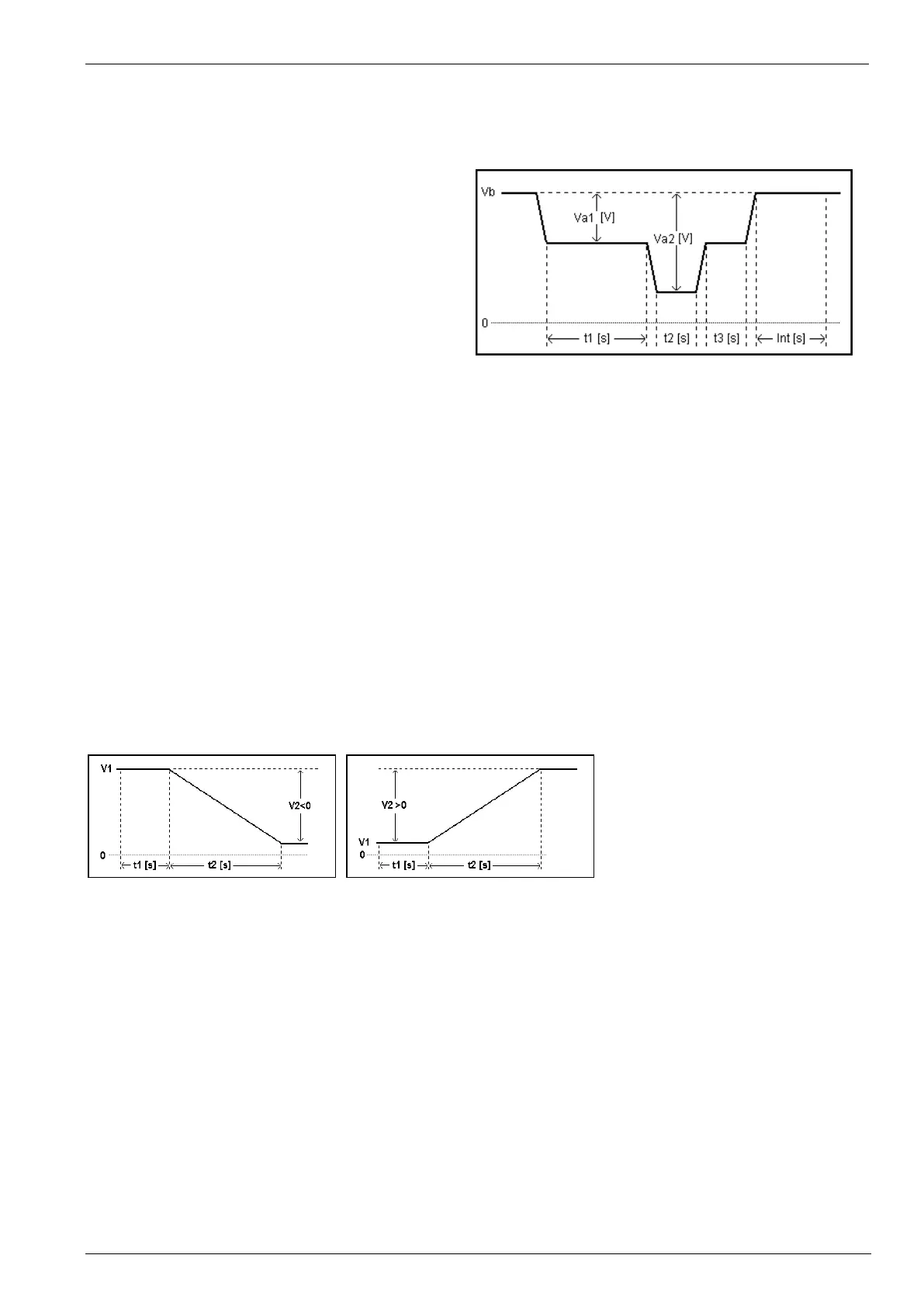

Short voltage drop
This test is to simulate the effect of a classical fuse actuation in another circuit.
tr, tf =  10ms
Limits depends VDS voltage range
Input restrictions
0.0 V  Vb + Va1  30.0V (60.0V)
0.0 V  Vb + Va2  30.0V (60.0V)
Parameters:
Vb
0.0V
-
30.0V (60.0V)
Va1
- 30.0V (- 60.0V)
-
30.0V (60.0V)
Va2
- 30.0V (- 60.0V)
-
30.0V (60.0V)
t1
0.1s
-
99.9s
t2
0.1s
-
99.9s
t3
0.1s
-
99.9s
int
0.1s
-
99.9s
n
1
-
30,000 / endl.
tri
Auto / Manual
I
1A
-
(Imax)
3.2.2.2.
Slow decrease / increase
This test is to simulate a gradual discharge and recharge of the battery.
Parameters:
V1
0.0V
-
30.0V (60.0V)
V2
- 30.0V (- 60.0V)
-
30.0V (60.0V)
t1
0.1s
-
99.9s
t2
0.1s
-
9999.9s
I
1A
-
(Imax)
Remarks:
WD 03/2000-2 Voltage change rate = ( 3  0.1 ) V per minute
ISO 16750-2 Voltage change rate = ( 0.5  0.1 ) V per minute
