AMETEK CTS VDS 200Q Series
Manual for Operation V 1.3.1 6 / 36
Additionally, on the front of the VDS 200Q models, there are the following elements:
Power ON/OFF Switch
Used to power on and off the system. At start, a synchronization and boot process will occur. After a few
moments, the system is ready to be used.
CAUTION:
Do not misuse the power on/off switch.
The VDS 200Q contains multiple controllers and signal generators that must be synchronized at
startup.
For best results, please allow at least five seconds between switching off and back on the
generator.

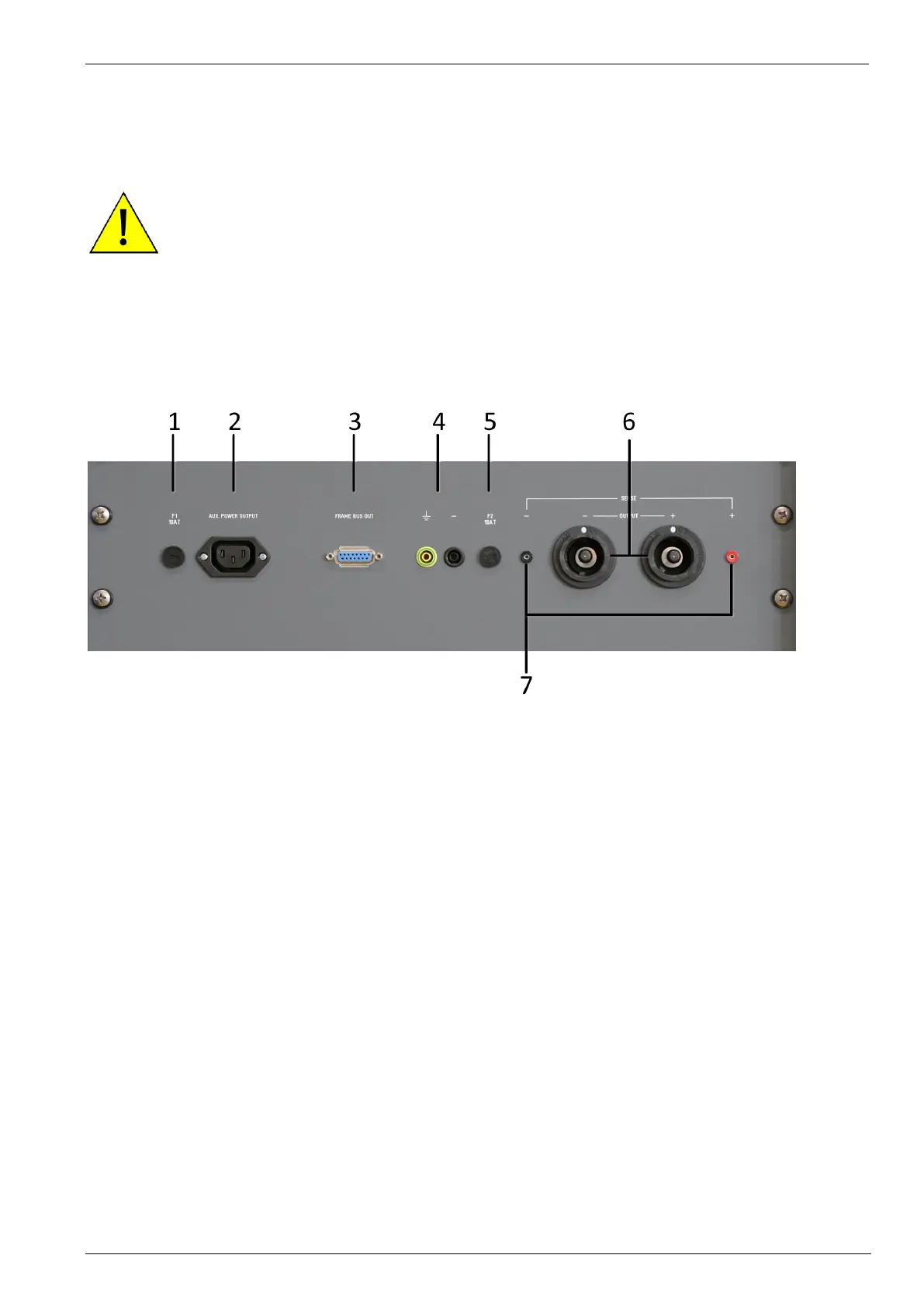

Output Connectors and Interconnects VDS 200Q150.2 and VDS 200Q200.2
1 Fuse 10 A (5x20 mm) for the PFM mains
2 Mains output to external PFM 200N200
3 Frame Bus out to PFM 200N200
4 Ground connector Minus to GND to
minimize noise, when an isolated output is not
needed
5 Fuse 10 A (5x20 mm) against excess ground
leakage current
6 DC out to DUT or PFM 200N200
7 Sense input
