AMETEK CTS VDS 200Q Series
Manual for Operation V 1.3.1 7 / 36

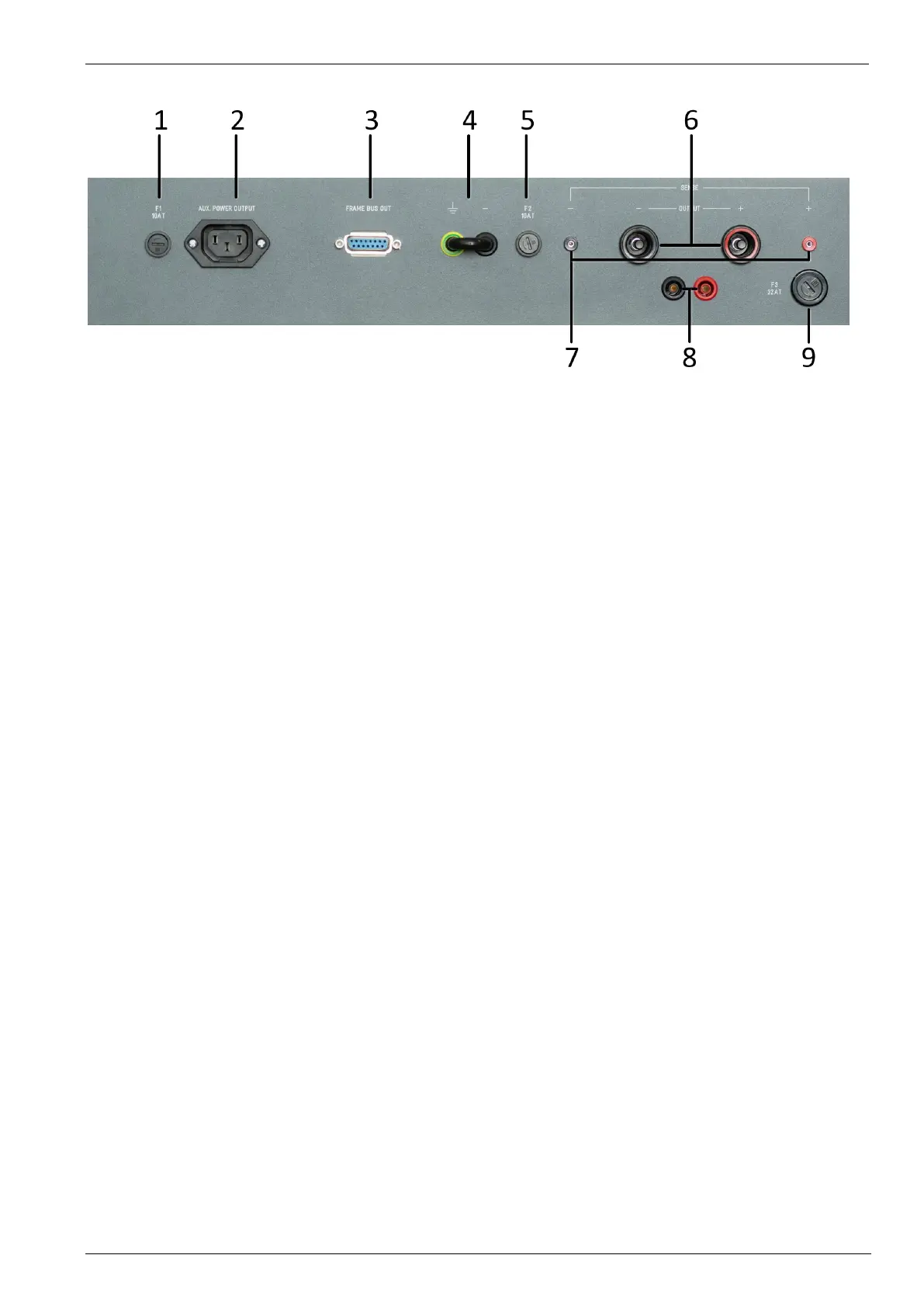

Output Connectors and Interconnects VDS 200Q100.2
1 Fuse 10 A (5x20 mm) for the PFM mains
2 Mains output to external PFM 200N100
3 Frame Bus out to PFM 200N100
4 Ground connector Minus to GND to
minimize noise, when an isolated output is not
needed
5 Fuse 10 A (5x20 mm) against excess ground
leakage current
6 DC out to DUT
7 Sense input
8 Measurement or
Low-current output (32A max.)
9 Fuse 32 A for Low-current output
