When Installing Internal Options 3-7

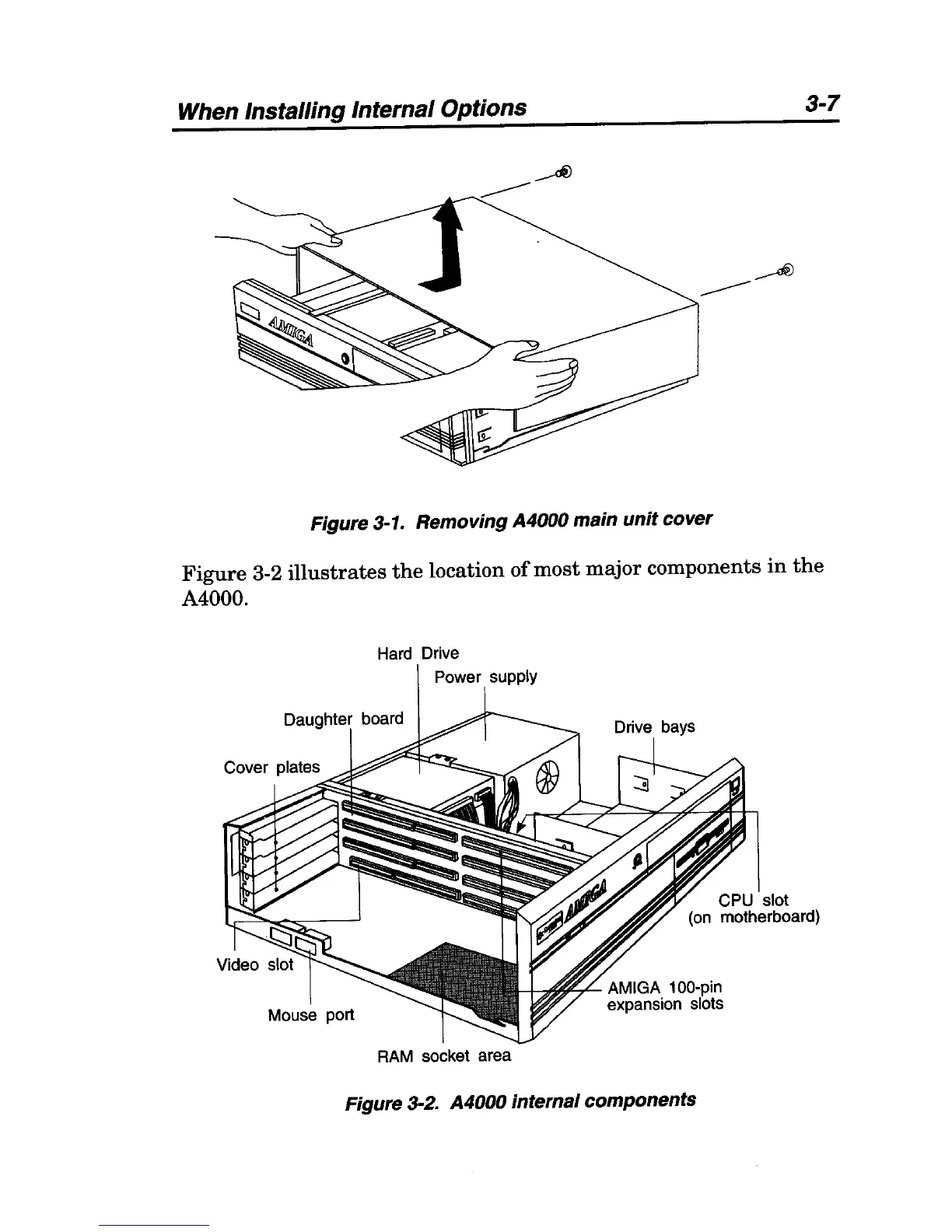

Figure 3-1. Removing A4000 main unit cover
Figure
3-2
illustrates
the
location
of
most
major
components
in
the
A4000.
Hard
Drive
Power supply
Daughter board
RAM
socket area
Figure 3-2. A4000 internal components
