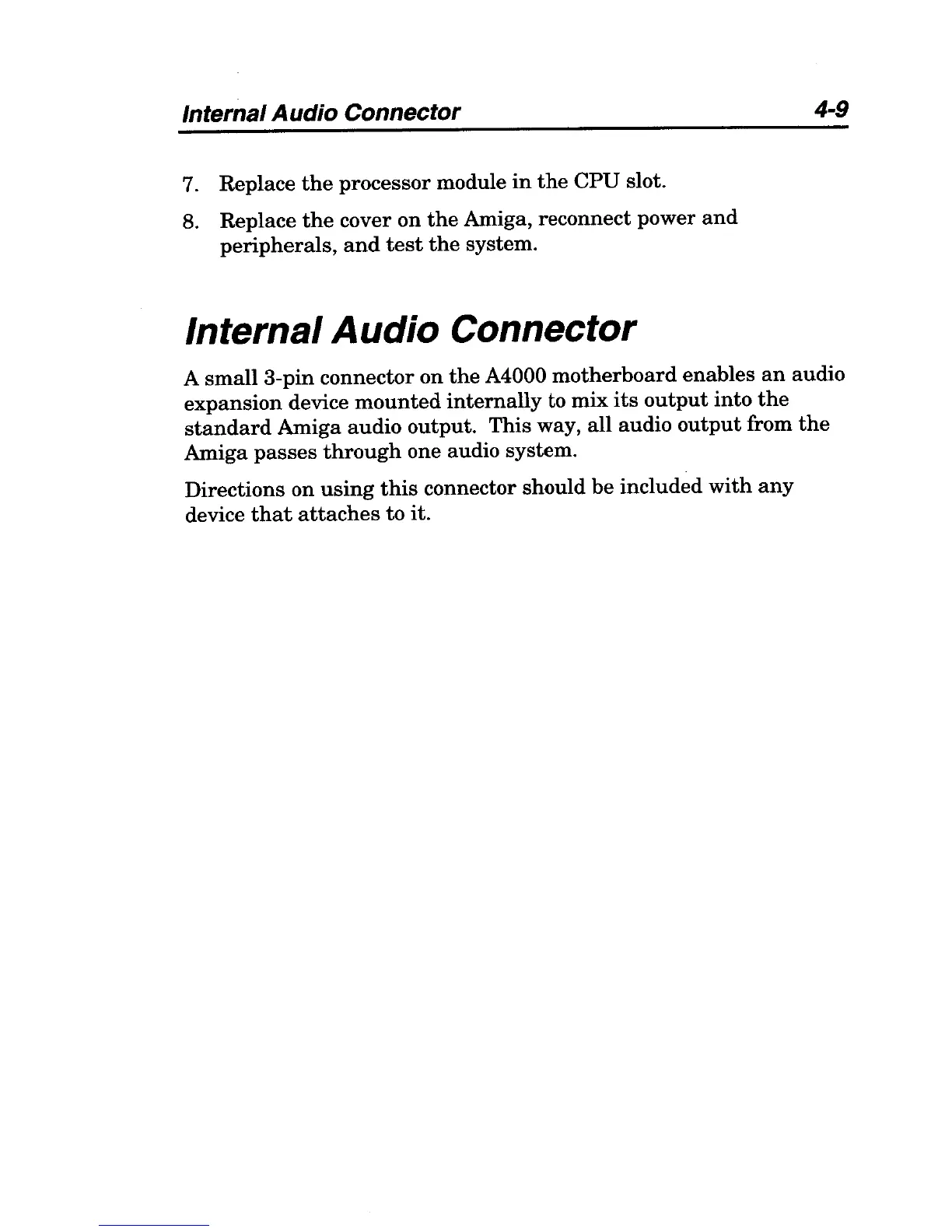

Internal Audio Connector

7. Replace

the

processor module

in

the

CPU

slot.

8.

Replace

the

cover

on

the

Amiga, reconnect power

and

peripherals,

and

test

the

system.

Internal Audio Connector

4-9

A

small

3-pin connector on

the

A4000

motherboard

enables

an

audio

expansion

device

mounted

internally

to

mix

its

output

into

the

standard

Amiga

audio

output. This way,

all

audio

output

from

the

Amiga

passes

through

one audio system.

Directions on

using

this

connector should

be

included

with

any

device

that

attaches

to

it.
