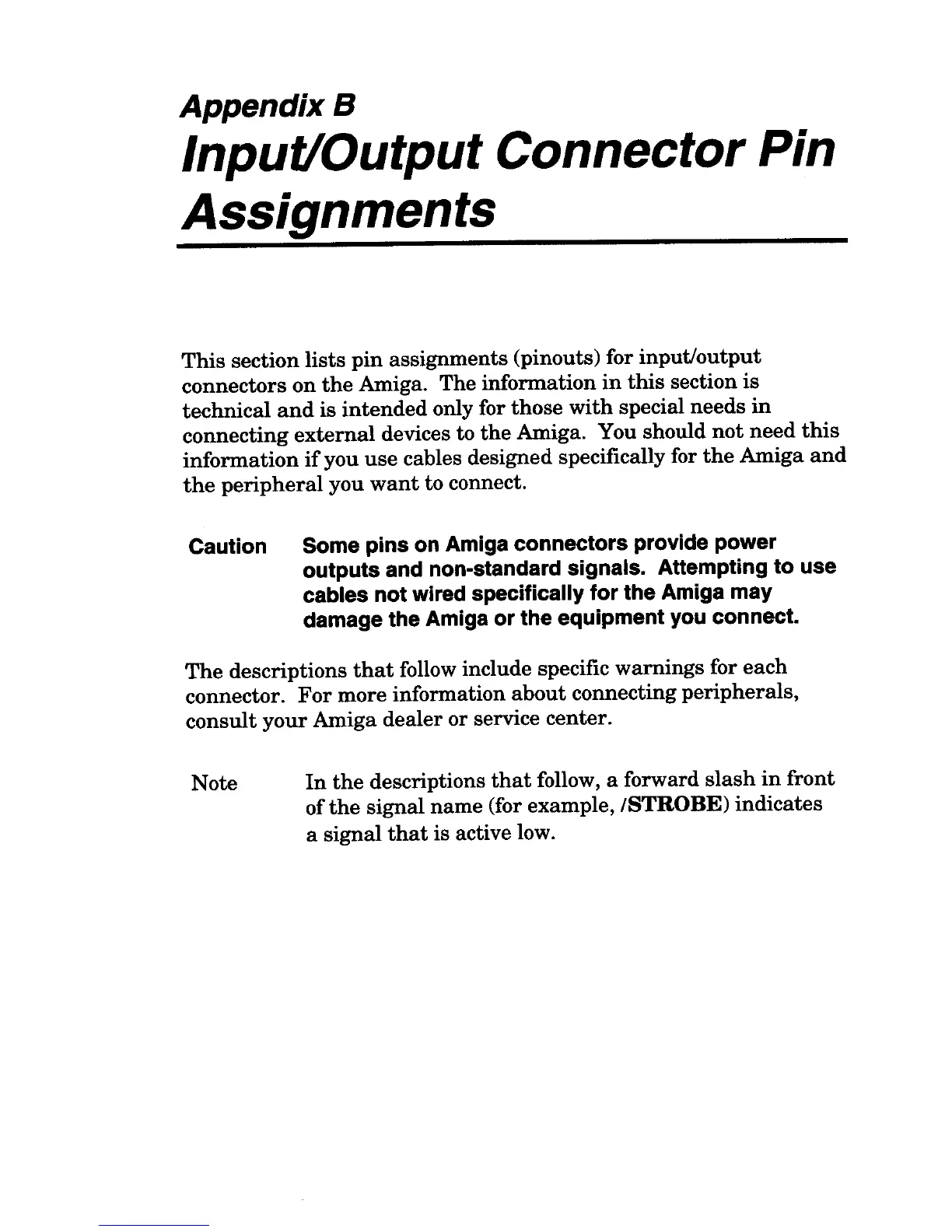

AppendixB
Input/Output Connector Pin
Assignments
This
section lists
pin
assignments (pinouts) for inputJoutput
connectors on
the
Amiga. The information
in
this
section
is
technical
and
is
intended
only for those
with
special needs
in
connecting
external
devices to
the
Amiga. You should
not
need
this
information
if
you
use
cables designed specifically for
the
Amiga
and
the
peripheral
you
want
to connect.
Caution Some pins on Amiga connectors provide power
outputs and non-standard signals. Attempting to use
cables not wired specifically for the Amlga may
damage the Amiga or the equipment you connect.
The
descriptions
that
follow include specific warnings for each
connector.
For
more information
about
connecting peripherals,
consult
your
Amiga dealer or service center.
Note
In
the
descriptions
that
follow, a forward
slash
in
front
of
the
signal name (for example, ISTROBE) indicates
a signal
that
is active low.
