Amiga A4000 - Video Slot; Standard Video Connector

8-18

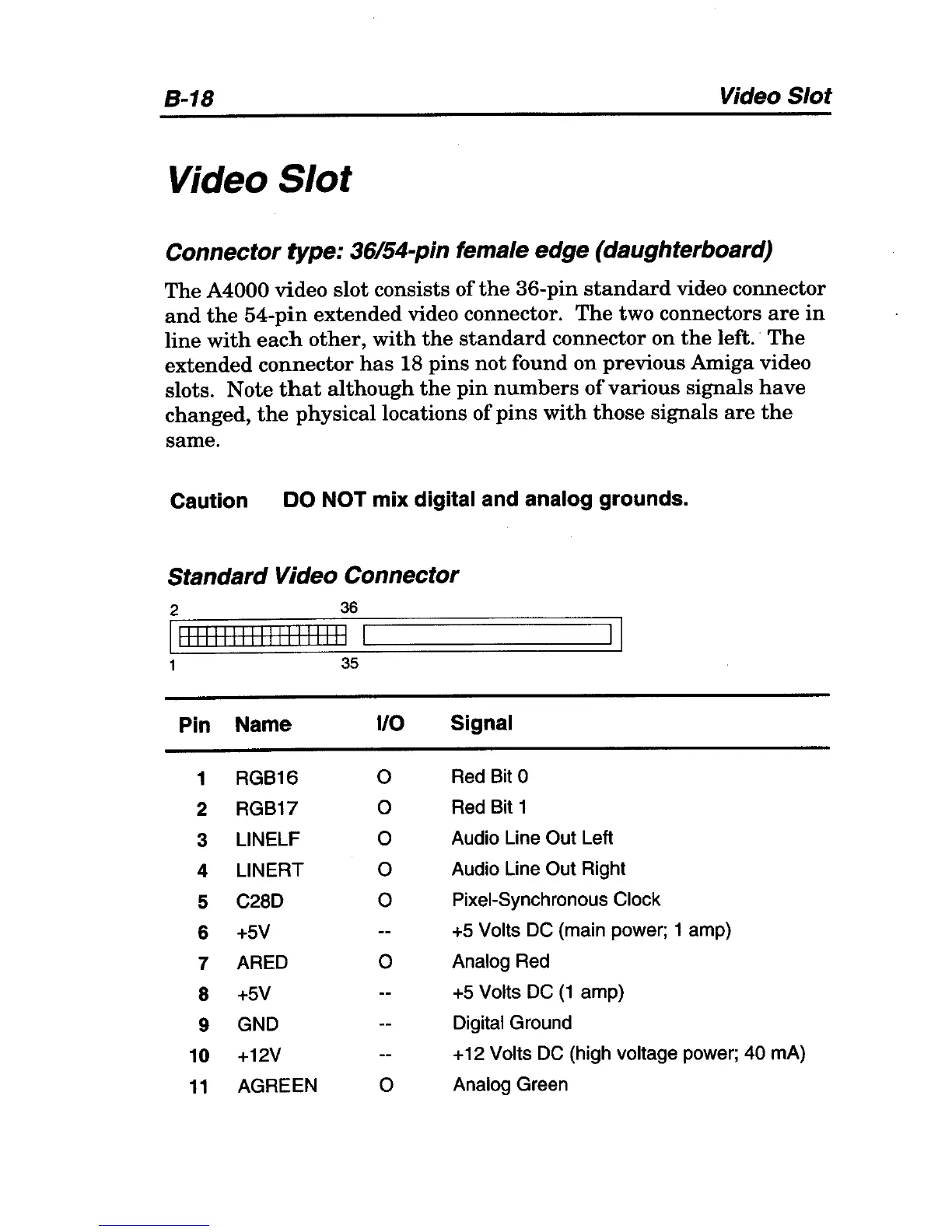

Video Slot
Video Slot
Connector type: 36/54-pin female edge (daughterboard)
The A4000 video slot consists of the 36-pin standard video connector
and the 54-pin extended video connector. The two connectors are in
line with each other, with the standard connector on the left. The
extended connector has 18 pins not found on previous Amiga video
slots. Note
that although the pin numbers of various signals have
changed, the physical locations of pins with those signals are the
same.
Caution DO NOT mix digital and analog grounds.
Standard Video Connector
2 36
11111111111111111111 I
1 35
Pin
Name
1
RGB16
2
RGB17
3
LlNELF
4
LlNERT
5
C28D
6
+5V
7
ARED
8 +5V
9
GND
10
+12V
11
AGREEN
I/O
o
o
o
o
o
o
Signal
Red Bit 0
Red Bit 1
11
Audio Line Out Left
Audio Line Out Right
Pixel-Synchronous Clock
+5 Volts DC (main power; 1 amp)
Analog Red
+5 Volts
DC (1 amp)
Digital Ground
+ 12 Volts
DC (high voltage power; 40 mA)
o Analog Green
